Model 1215C

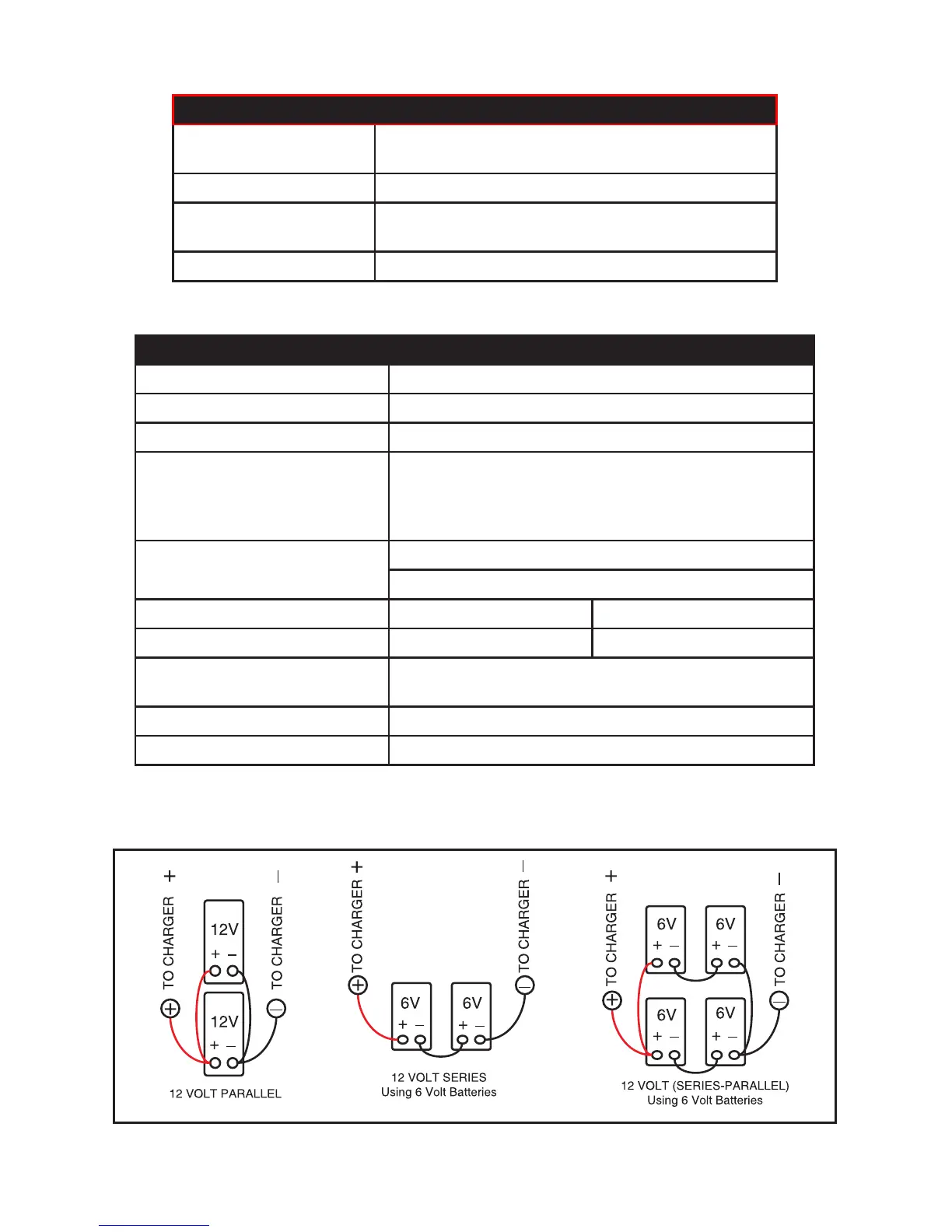

COMMON MULTIPLE BATTERY CONFIGURATIONS
Safety & Protection
Safety standards:
Complies with the requirements of the
Standard(s) for Battery Chargers (UL-1236)
EMC standard: FCC part-15
Input-Output
insulation test:
1240Vac 50Hz with 1 minute, 5mA ac
Cooling: By natural cooling
Specifications including Electrical Cable & Physical Parameters
BatteryMINDer 1215C 12VDC @ 1.5A
Input 100 - 240 VAC • 50/60 Hz • 0.4A
Input Cord SJTW 18AWG X2 105°C 12.5” with UL 2pin plug.
Output Cord
6” SPT-2 18AWG X2 105°C with quick connector +
6’ SPT-2 18AWG X2 with battery clamp
2’ SPT-2 18AWG X2 with 1.25-8.4(-) and
1.25-10(+) ring terminal
Plastic enclosure
dimension
105 (L) x 83 (W) x 33 (D) mm
4.1 (L) x 3.3 (W) x 1.3 (D) in.
Operating temperature -10°C to 40°C 14°F to 104°F
Storage temperature -25 to 85°C -13°F to 185°F
Temperature
Compensation
-28 mV/C°
Operating humidity range 0% to 90% RH
Weight <1 lb.
