BatteryMINDer 1215C - Led Indication Table

Rev. A-061015 Page 9 P/N VDC1215C-MNL
BatteryMINDer
®
Model 1215C

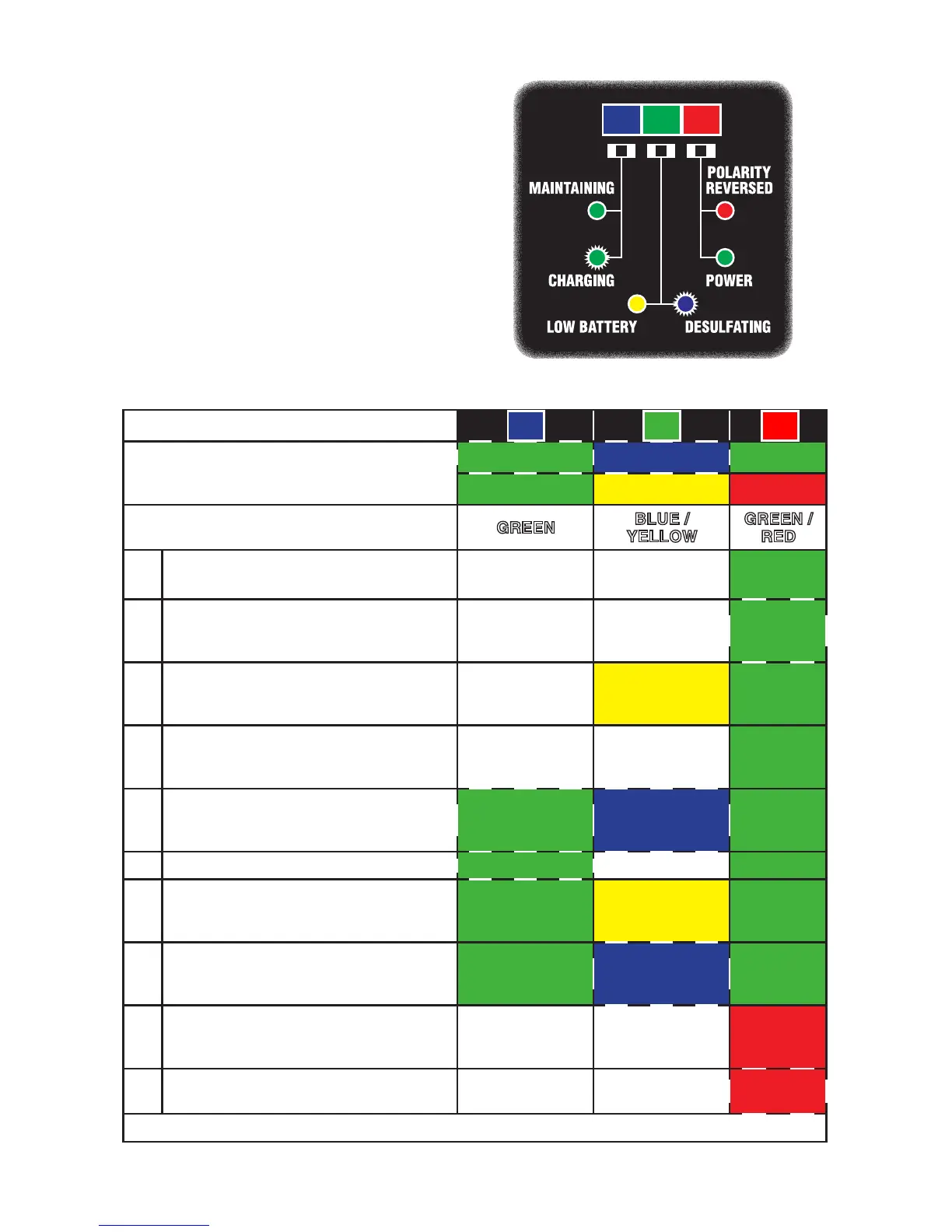

TABLE 2
LED INDICATIONS
CHARGING DESULFATING POWER
MAINTAINING LOW BATTERY FAULT
LED Color GREEN
BLUE /
YELLOW
GREEN /
RED
1
AC Power connected, Battery
disconnected
OFF OFF ON
2
AC Power connected, battery
disconnected >10 sec., charger in
sleep mode
OFF OFF FLASH
3
AC Power connected, battery initial
condition detected for 3 sec., initial
battery < 10.5V
OFF ON ON
4
AC Power connected, battery initial
condition detected for 3 sec., initial
battery > 10.5V
OFF OFF ON
5
AC Power connected, soft-start
charging, bulk charging and
absorption charging
FLASH FLASH ON
6 Sulfation check mode FLASH OFF ON
7
Maintenance charging if battery
voltage < 12.5V at sulfation check
mode
ON ON ON
8
Maintenance charging if battery
voltage > 12.5V at sulfation check
mode
ON FLASH ON
9
Charger output clips shorted,
battery polarity reversed, battery
voltage < 3V
OFF OFF ON
10
Battery timed-out during soft-start
charging, bulk charging
OFF OFF FLASH
Remarks: Blue LED flash rate: ON 100 msec., OFF 2 sec.; Green LED Flash rate: ON 0.5 sec., OFF 0.5 sec.
A B C
CA B
Expanded View of
1215C Unit Label
