MVT26
October 2003 Section 3 Page 45
Item Qty Part No. Description Notes
◊ 1 79240 Flywheel Drive Assembly
1 1 68623 V-belt Pulley
2 6 55425 Fan Blade Support
3 18 79239 Blade, Fan CCW
4 12 N19495 Hex Head Screw M6x16
5 12 WAS-0029 Washer, Split Lock 6mm
6 1 68646 Washer
7 1 WAS-0002 Washer, Split Lock
8 1 N15667 Hex Head Cap Screw M12x45

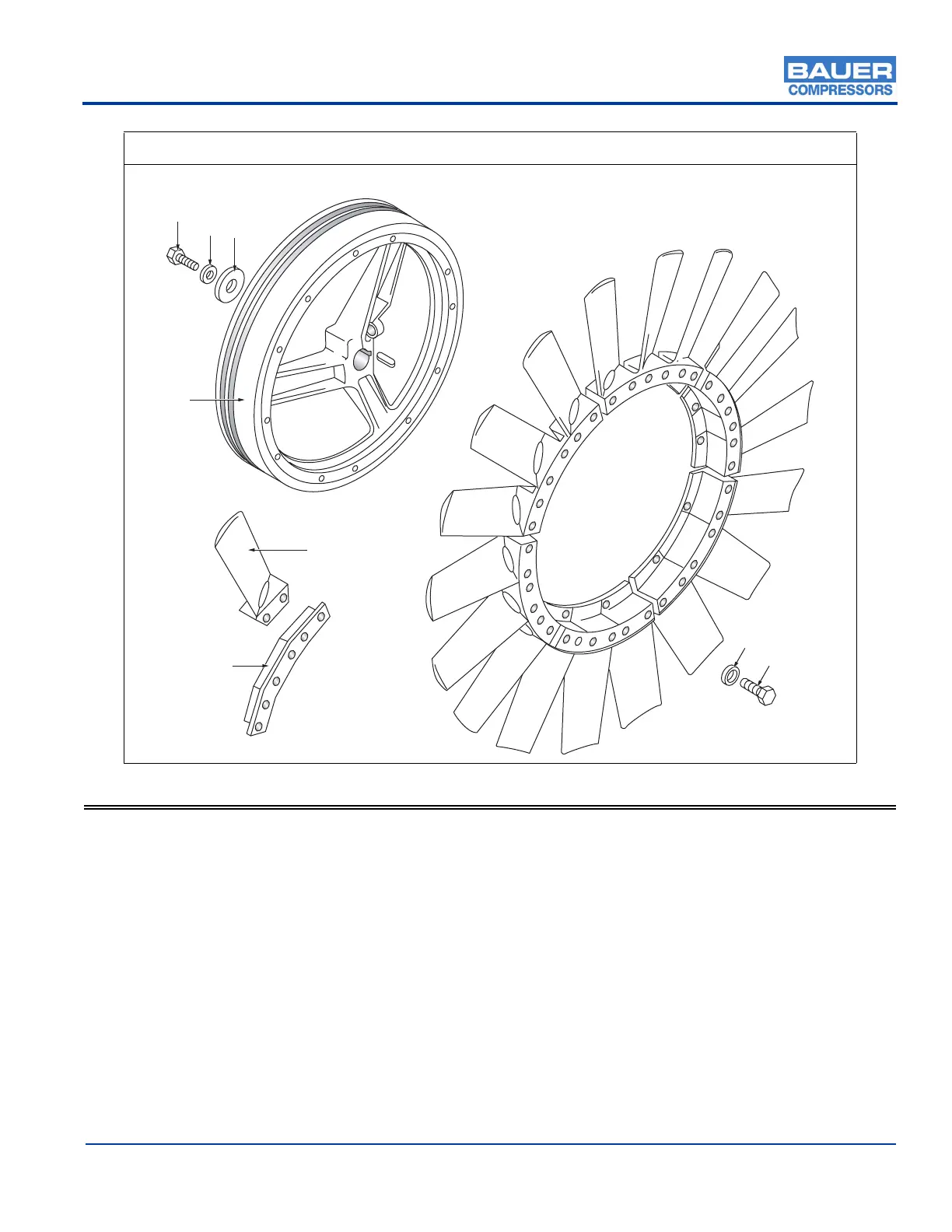

Figure 3.1-29 Flywheel Drive Assembly
6
7
8
1
3
2
5
4
