10.7 A single motor moves fast and will not go into position.
A) Check Encoder connection to drive in pan or stacker junction box. If connection is not
seated properly, reseat.
B) If problem persists, replace motor.
10.8 A single motor moves home but computer fails to show finished.
A) Open pan junction box and press home switch, does D6 light up on board? If yes go to B). If
not go to C).
B) Power down Autoset and move pan by hand home, Switch must close before pan stops at
home position, If not reposition switch.
C) Check continuity through the cable, Replace if it fails continuity test.
D) Activate switch, check continuity through switch, if it fails continuity test replace switch.
XI. REPLACING A PAN MOTOR DRIVE BOARD
11.1 To replace a fold plate motor drive first make sure the power is off to the machine.
11.2 Remove the cover from the fold plate electrical box on the plate.
11.3 Then disconnect the (4) connectors 5-1 making note of there location and orientation.
11.4 Then Remove the (2) screws 5-2 holding the drive board. Remove the board from the fold plate
electrical box.

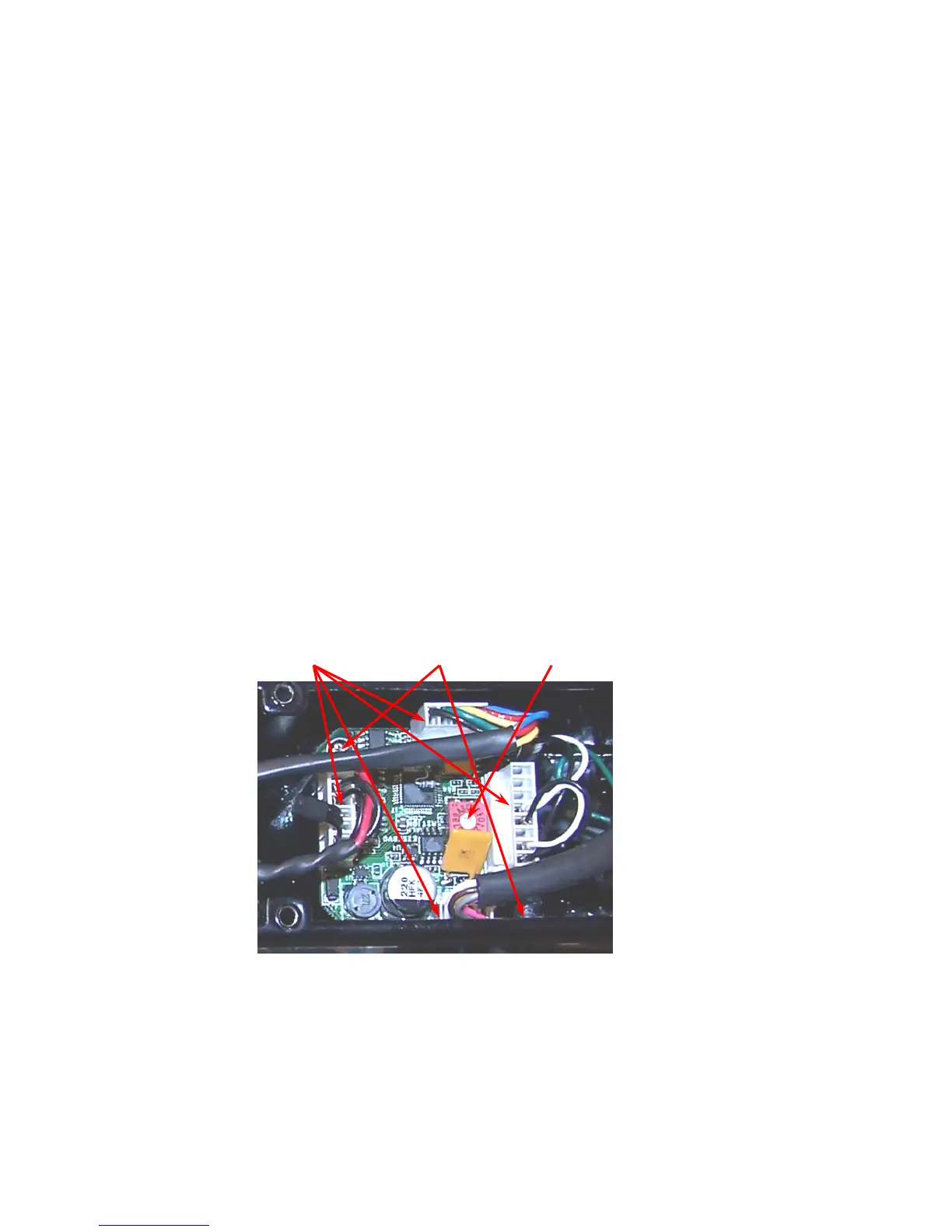

1 2 3
Fig. 5
11.5 Remove the connector with the jumpers and plug it onto the new driver board in the same location
and orientation.
11.6 Set the address on the selector switch 5-3 of the new board to the same address as the old board.
See table 1 for a list of all the addresses.
