1 2 3 4 5 6 7 8 9 10 11 12

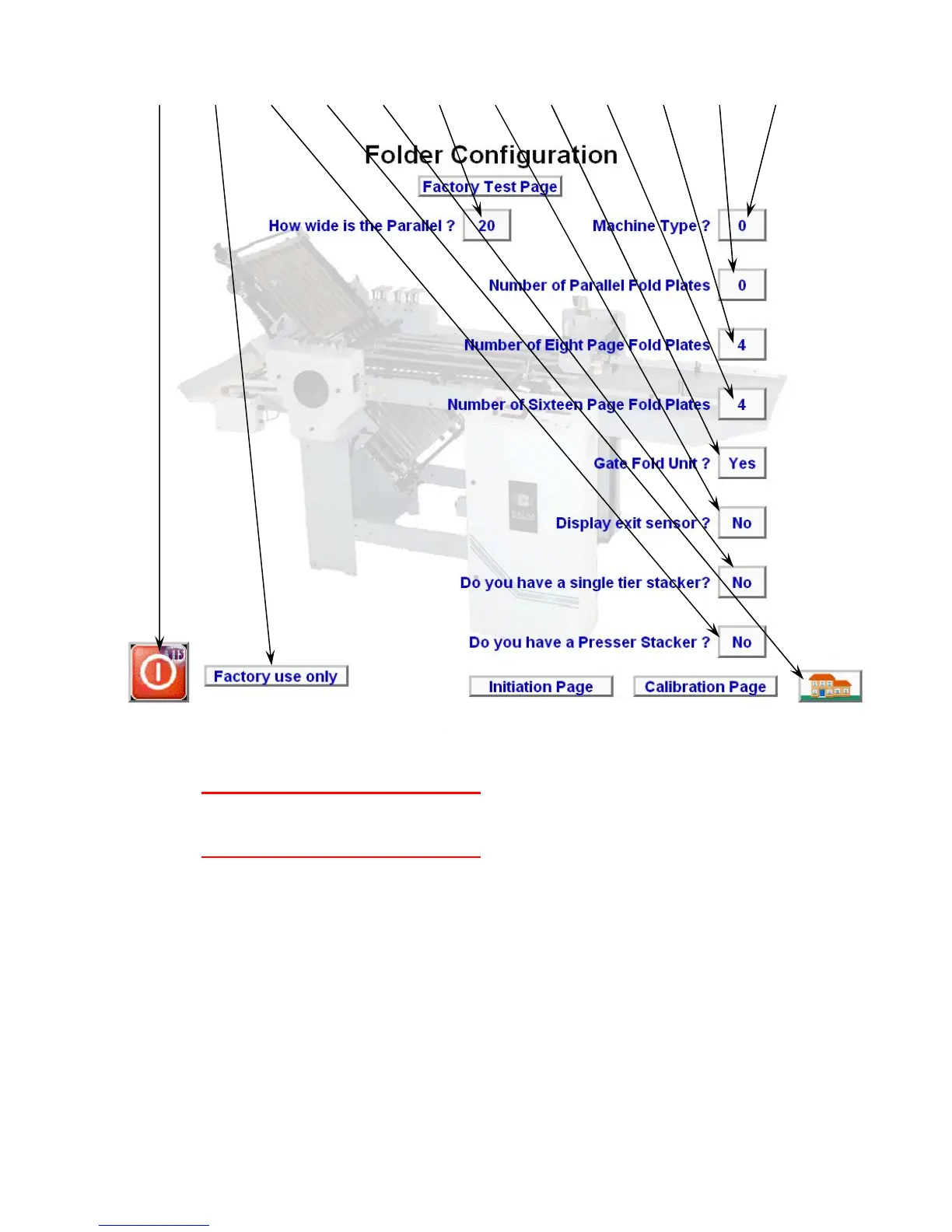

Fig. 4
4-1
DO NOT TOUCH THIS BUTTON. This button will shut down the Autoset program, but
not the computer. This should only be used when updating the program
4-2 DO NOT TOUCH THIS BUTTON. This button is for factory use only.
4-3 Press this button to tell Autoset if you have the optional Presser Stacker. It will toggle
between yes and no each time it is touched.
4-4 Press this button once you have completed all the configuration settings, this button take you
back to the main page.
4-5 Press this button to tell Autoset if you are using the single tier stacker. It will toggle between
yes and no each time it is touched. This is very important if this is a 20”Autoset. NOTE: The
only time this should be set to YES is when the machine is a 20” Autoset with the standard
Autoset single tier stacker.
