38
All work must be carried out by a GASSAFE
m the electricity
ly before changing the gas taps.
s.
unscrewing the rear fixing screws (B) which
o Unscrew the nuts (E) of the gas
ck connectors (F).
o Unscrew the screws (G) which unite
the bridles of the taps to the front
frame.

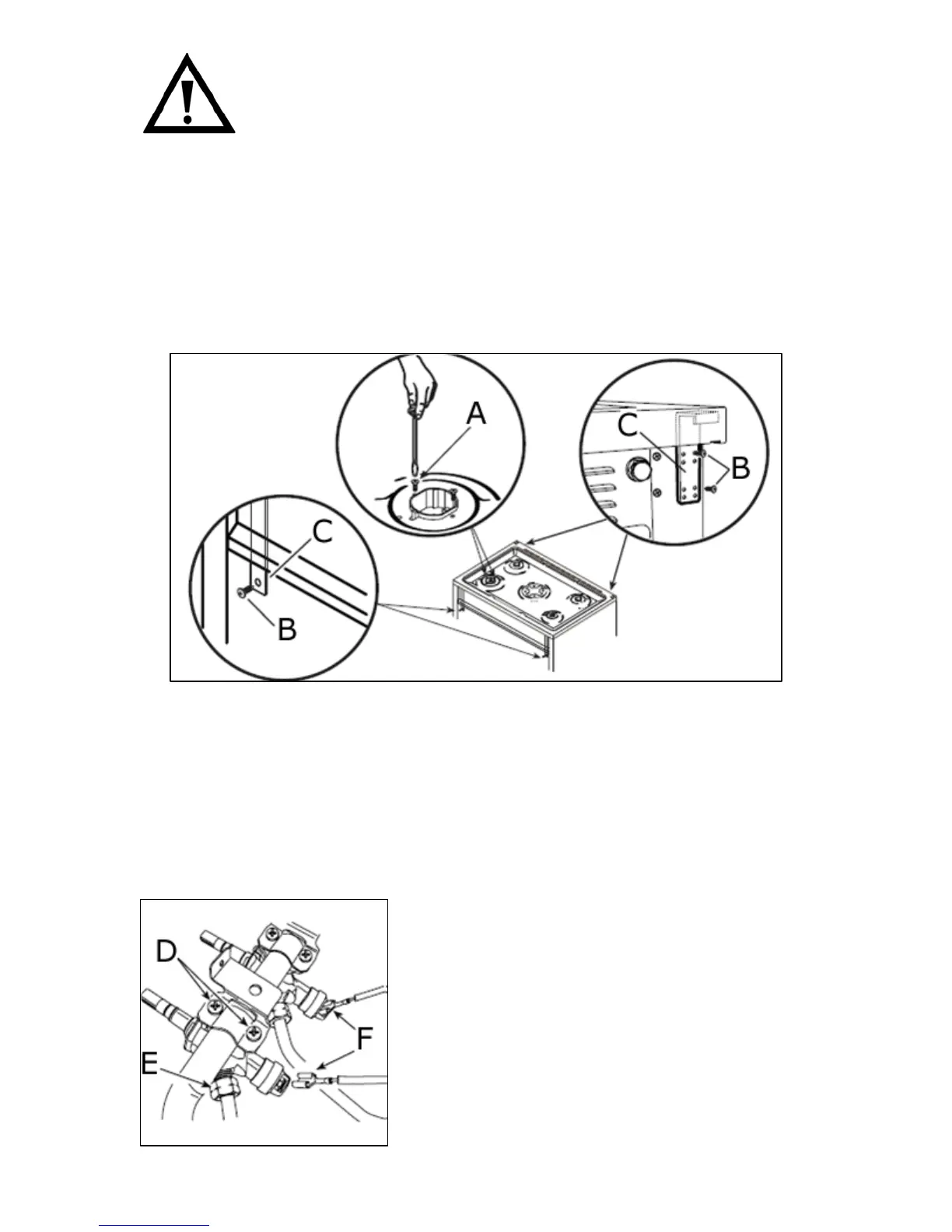

Gas tap replacement
registered engineer.
IMPORTANT: Always isolate the cooker fro
supp
o Remove all pan supports and burner heads.
o Unscrew the burner fixing screws (A) (four for the triple crown
burner and two for all others) as shown in the diagram on the
next page.
o Pull out the knob
o Unscrew the six fixing screws (B) which lock the side profiles
and remove it.
o Remove the hob by
lock the hob at the
supports (C).
aluminium pipes and pull out the
thermocouple qui
o Unscrew the screws (D) which lock
the crosspieces.
