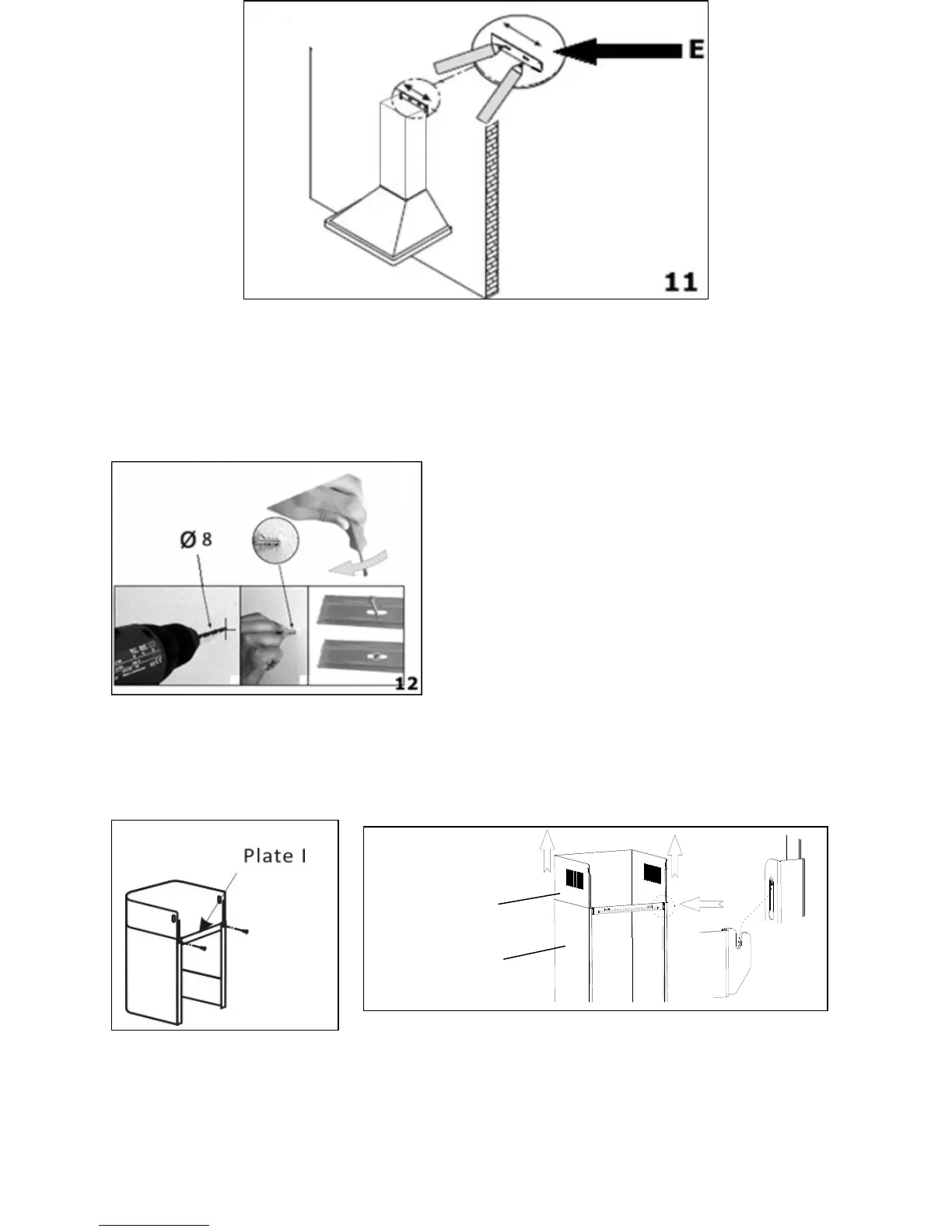

11) Take the lower chimney section wall fixing bracket (E/Plate I)
and place it between the two pencil marks that you made in step 9
o Keeping the bracket in contact with the wall, use a pencil to
mark on the wall the anchoring holes that are cut out of the
bracket.
12) Using an 8 mm drill bit, drill out
two holes on the pencil markings that
you made in step 11. Insert rawl plugs
into the holes and then use a
screwdriver to secure the lower
chimney fixing bracket to the wall.
o Refit chimney section (C) to the hood and fix it onto the hood
using the two screws (4x8) that are supplied.
