23

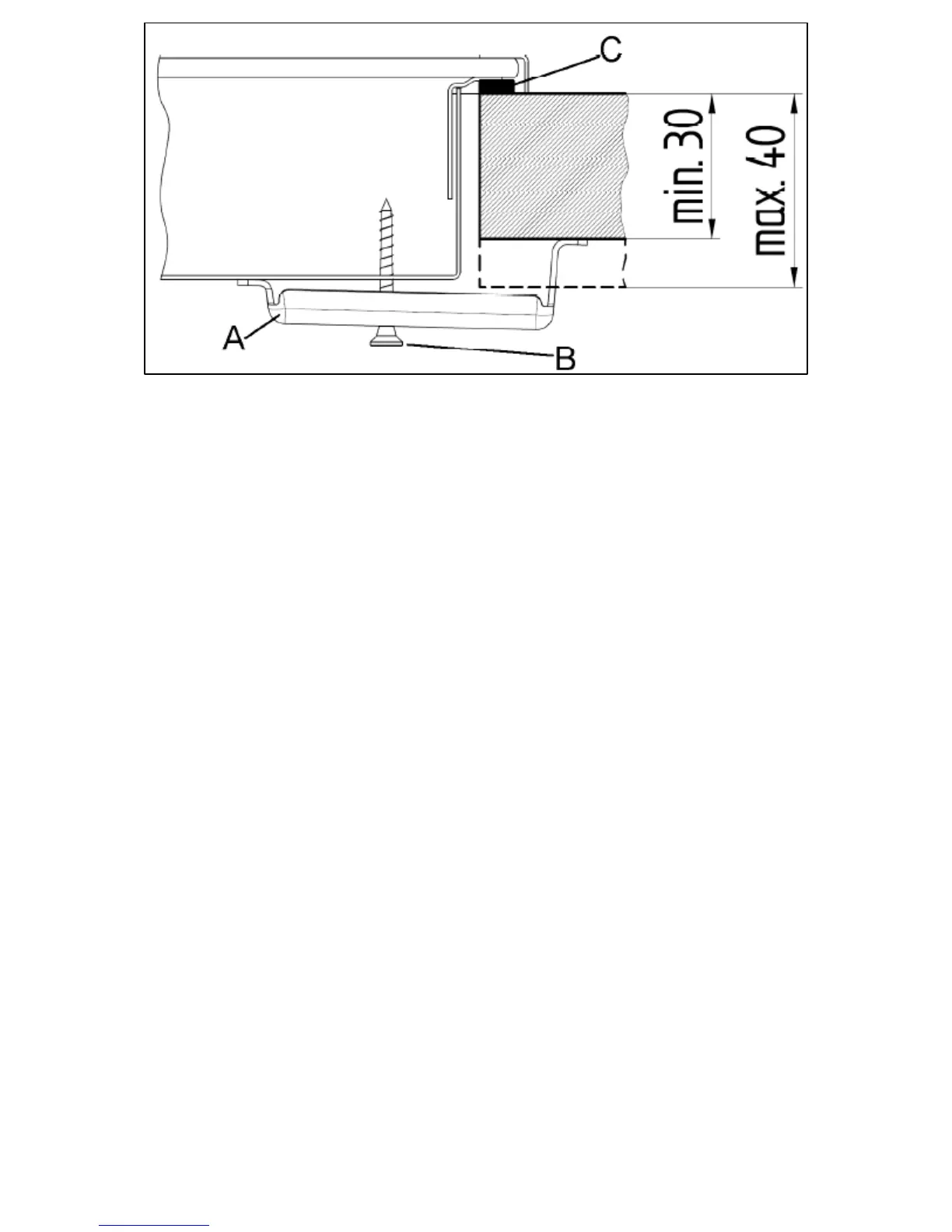

(A) Sealing strip
(B) Clamp
(C) Screw
o Place the clamp (B) over the holes that match the size of the
screws. There are one set of screw holes in each corner of the
hob. Slightly tighten a screw (C) through the clamp (B) so that
the clamp is attached to the hob, but so that you can still adjust
the position of it.
o Carefully turn the hob back over and then gently lower it into the
aperture hole that you have cut out.
o On the underneath of the hob, adjust the clamps into a position
that is suitable for your worktop. Then fully tighten the screws
(C) to secure the hob into position.
