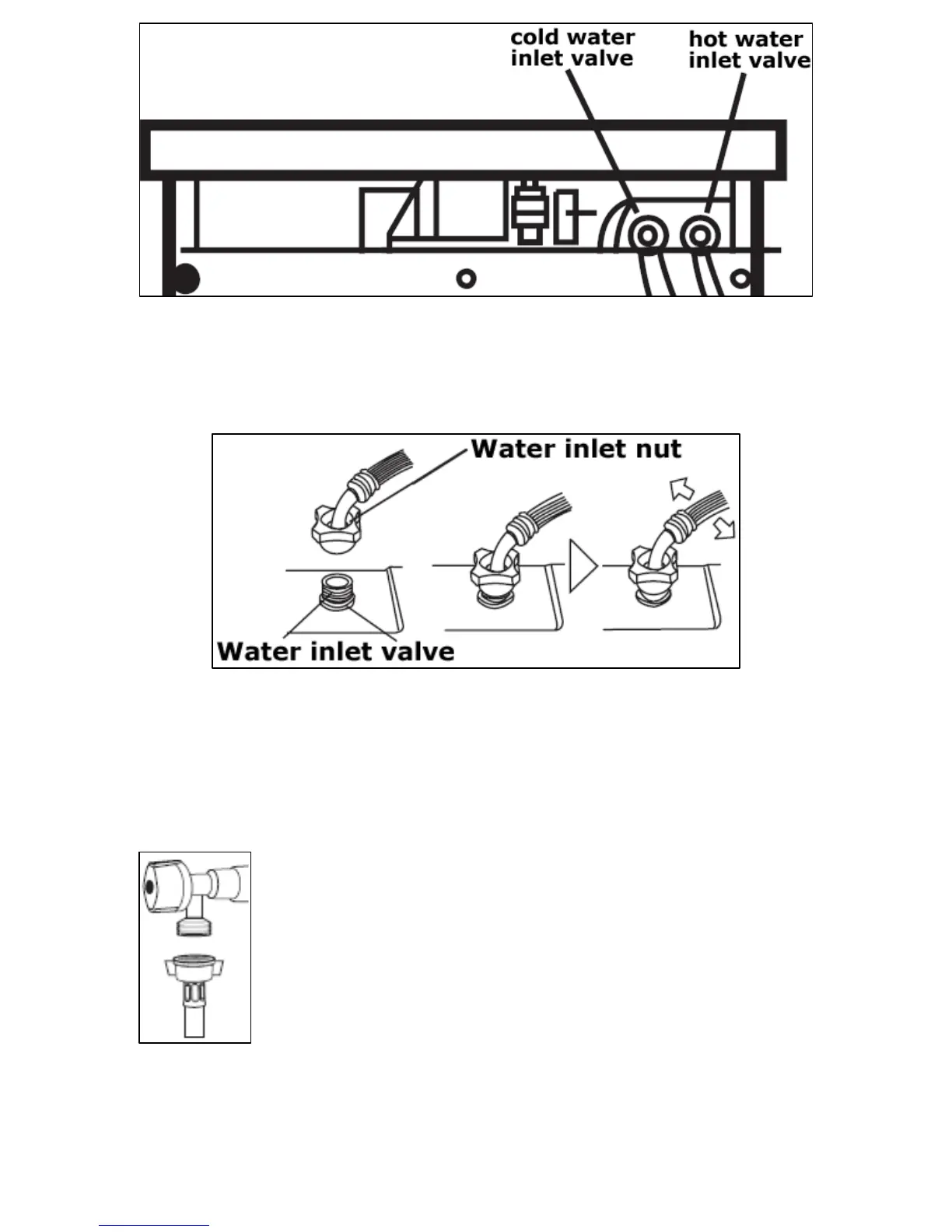

o When you are facing the rear of the appliance, you will see two
water inlet valves next to each other. The cold water inlet valve
is on the left hand side and the hot water inlet valve is on the
right hand side.
9 Place the water inlet hose on the water inlet valve at the rear of the
washer dryer.
9 Connect and fully tighten the inlet hoses to the threaded inlet valve
that is located at the rear of the washer dryer. On the end of the
water inlet hoses there are connectors that have a nut on it, you
should use these to secure the hoses.
9 Connect the other end of the inlet hoses to your mains
water supply
o IMPORTANT: You must ensure that you connect the
inlet hoses to the correct taps. The cold water inlet
valve must be connected to your cold water tap. The
hot water inlet valve must be connected to your hot
water tap.
o If you only have a cold water supply available, you should connect
the two hoses to the cold water outlet, by using a “Y” connection
piece.
33
