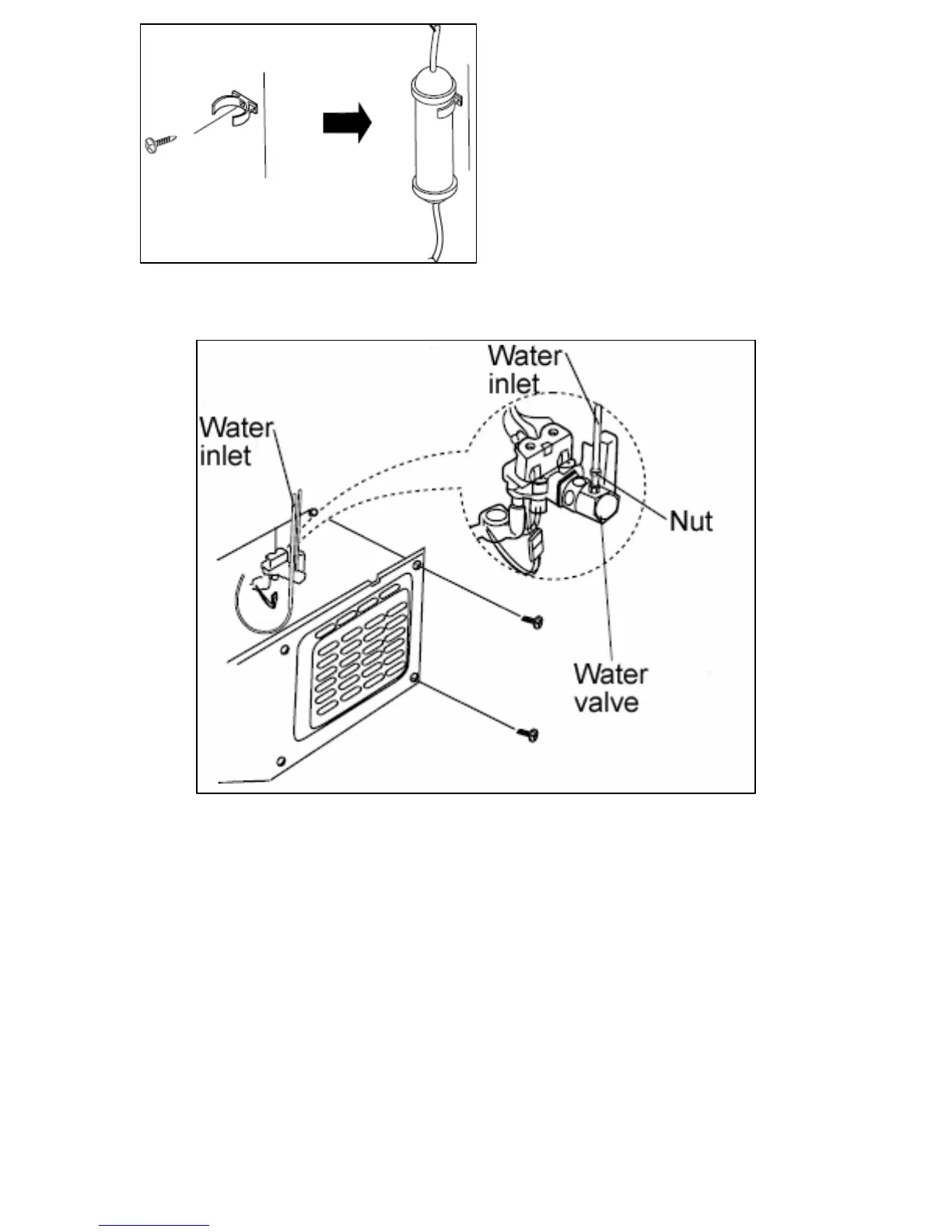

4) Screw and fasten the filter
holder to the left or right hand
side of the rear of the appliance.
o If the filter holder does not
attach very well, then
remove the paper that
covers a sticky pad on the
rear of the filter holder and
then screw it into position
again.
o Clip the water filter into the filter holder.
5) Remove the cover at the bottom rear of the appliance.
o Insert the fastening ring into the water inlet, you must ensure
that you follow the direction of the nut.
o Insert the water inlet into the top of the water valve (the valve is
located to the right of the compressors), then turn the nut
clockwise to securely fasten it.
o After checking that there are no bends in the water inlet, turn on
the water tap and then check thoroughly for any leaks.
IMPORTANT- If there are any signs of water leaks, you should follow
the installation procedure stage by stage again.
37
