o Fix the cover of the top bolts (4).

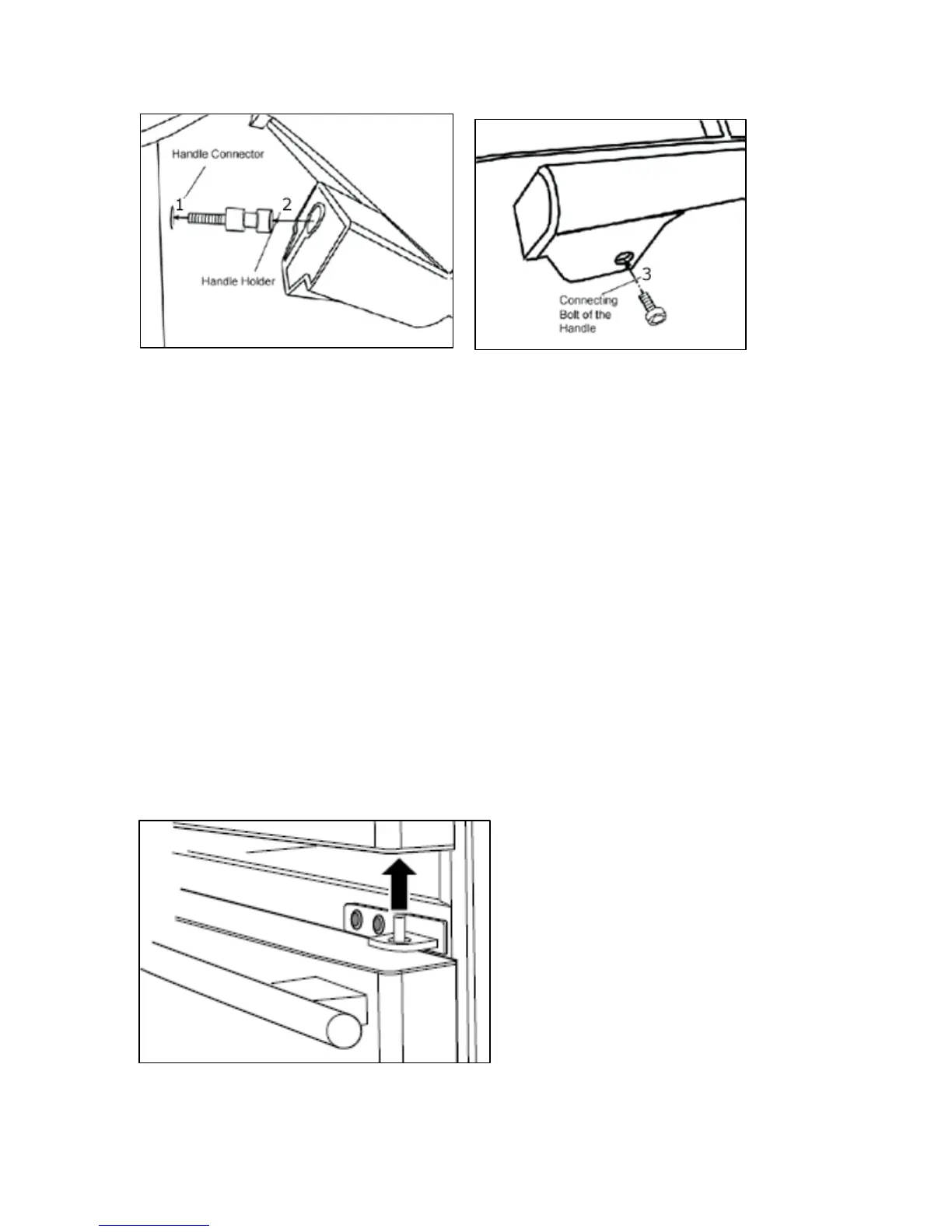

Freezer door handle
o Put the handle connector into the right holes on the freezer door
using a screwdriver (1).
o Place the freezer door handle onto the handle holder and keep
the hole of the handle holder and the handle connector to the
right position of the vertical direction (2).
o Insert the connecting bolt of the handle into the two holes of the
handle holder with the help of a six angle screwdriver (3).
Removing the right hand door
o Using a suitable screwdriver, remove the top hinge screws and
then remove the hinge.
o IMPORTANT: When removing the hinge and separating it
from the door, make sure that the door is supported to
stop it falling forward.
o Lift the right hand door off
of the lower hinge and
place it to one side.
40
