o IMPORTANT: The door should be lent carefully against a
wall, so that the inner or outer surfaces cannot be
accidentally damaged.
o After you have located the fridge freezer in its final position, the
door should be refitted, following the above process in reverse.
Removing the left hand door

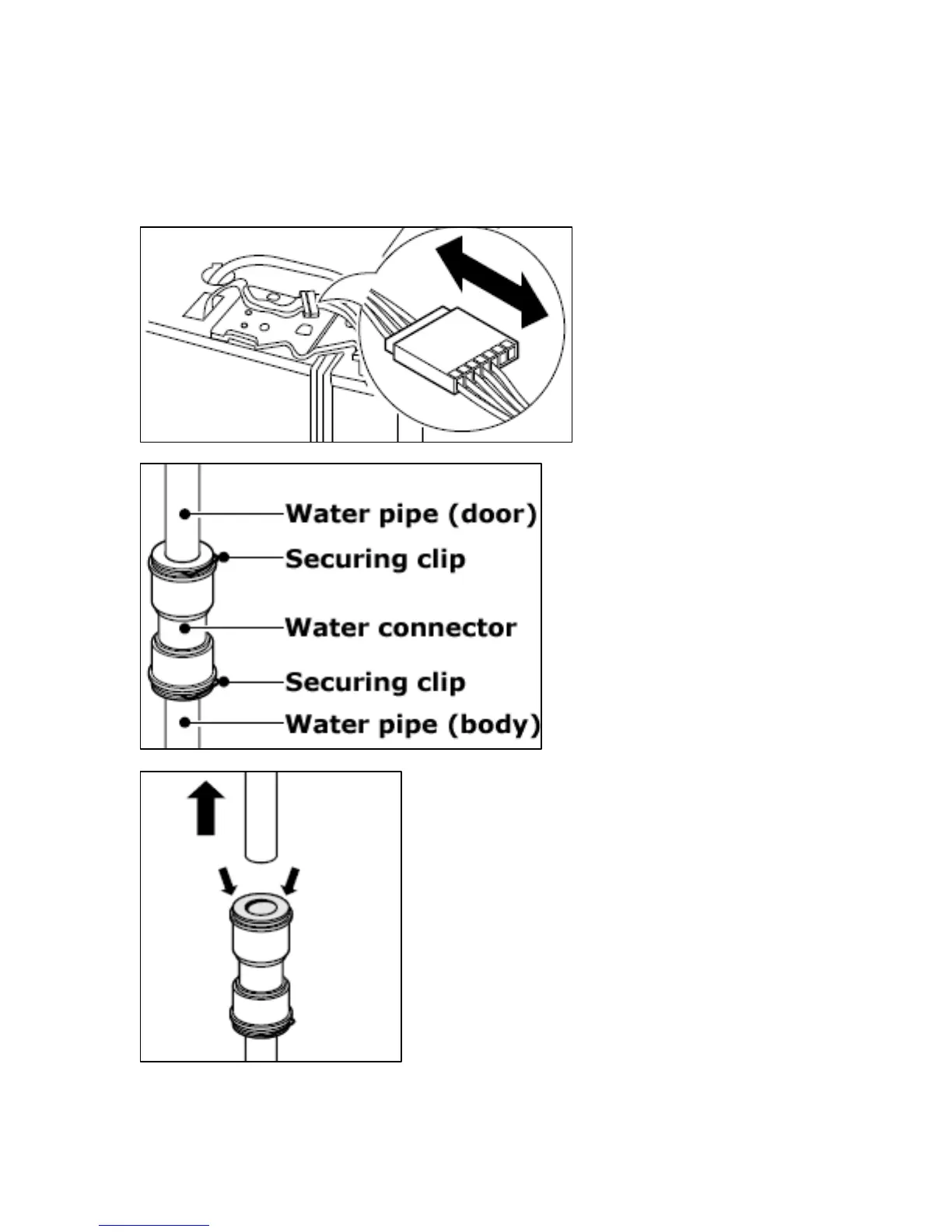

o Disconnect the
wire cable
connector which
is positioned
above the left
hand hinge.
o On the rear of the
appliance, remove
the water pipe cover
and then pull the
upper securing clip
off the water
connector.
o Push down on the top of the
connector to release the water pipe
and then remove it.
o From the top of the left hand door,
pull out the water pipe until it is
clear of the main body of the fridge.
o Using a suitable screwdriver,
remove the top hinge screws and
then remove the hinge.
41
