Water supply connection
o IMPORTANT: Care should be taken to make sure that the water
pipe does not come into contact with any hot surfaces.
o IMPORTANT: The water filter only filters the water; it does not
eliminate bacteria or microbes. You must connect the water pipe
to a drinkable water source.
o The water filter life will depend on how often you dispense water
and ice.
o IMPORTANT: The water inlet MUST be connected to your cold
water supply only.
o Cut the water pipe to a length that is suitable for your specific
installation. The water pipe length should be less than 5 metres;
otherwise the dispensing of ice and water will be affected
because of insufficient water pressure.
o The water pressure should be between 207 – 827 kPa (21 – 123
psi) for the correct operation of the water dispenser and ice
maker.
o IMPORTANT: You should take care not to bend the water pipe
too much.

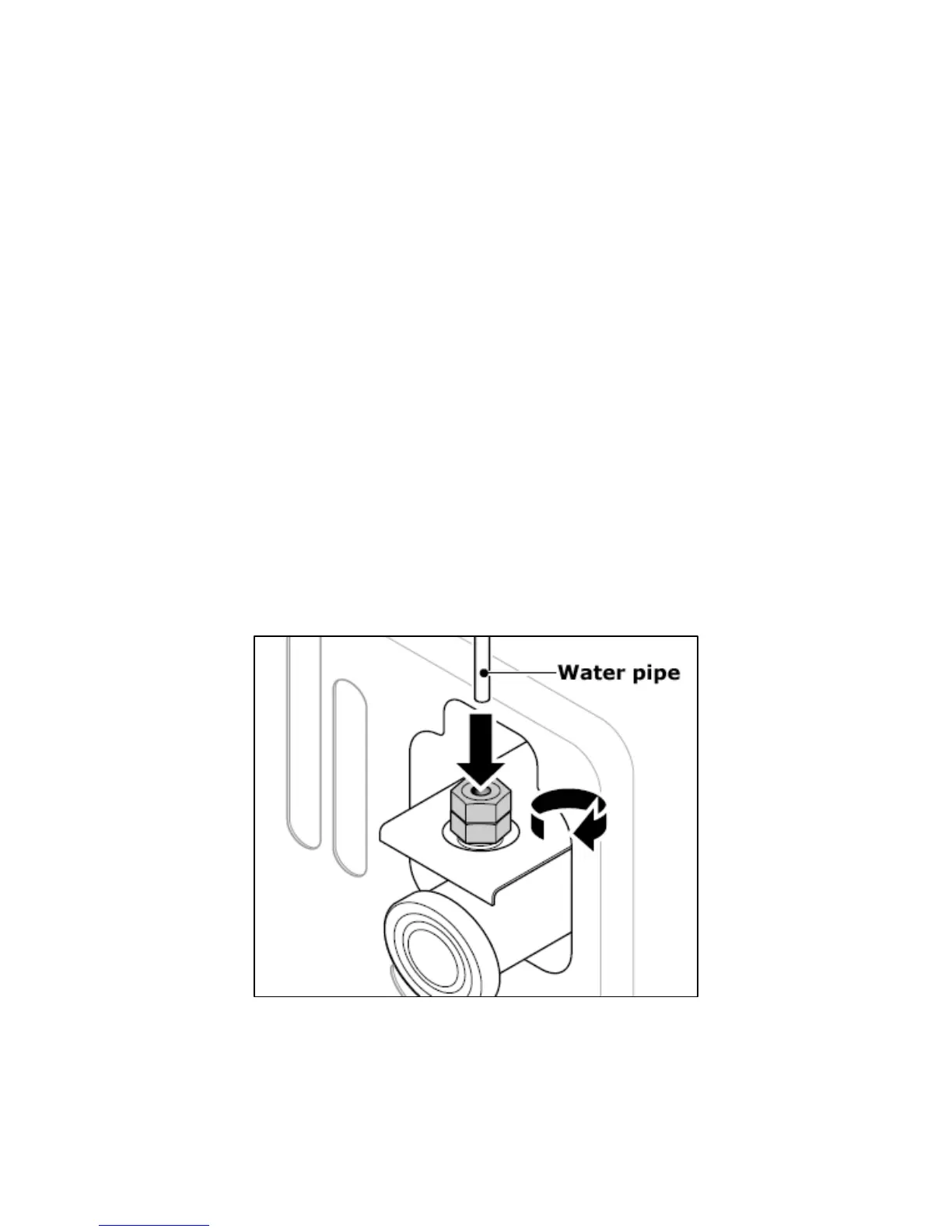

o Insert one end of the water supply pipe into the water inlet on
the rear of the appliance.
45
