EMC Information Installation
BUG 3/2/20 Basic Feed Unit 19
Baumüller Nürnberg GmbH 5.96064.02
The information on the next pages is intended to allow you to configure your system on the basis of
the latest knowledge in the field of EMC and to comply with legal regulations.
Measures for Ensuring EMC
To ensure EMC, you must observe the configuration information below.

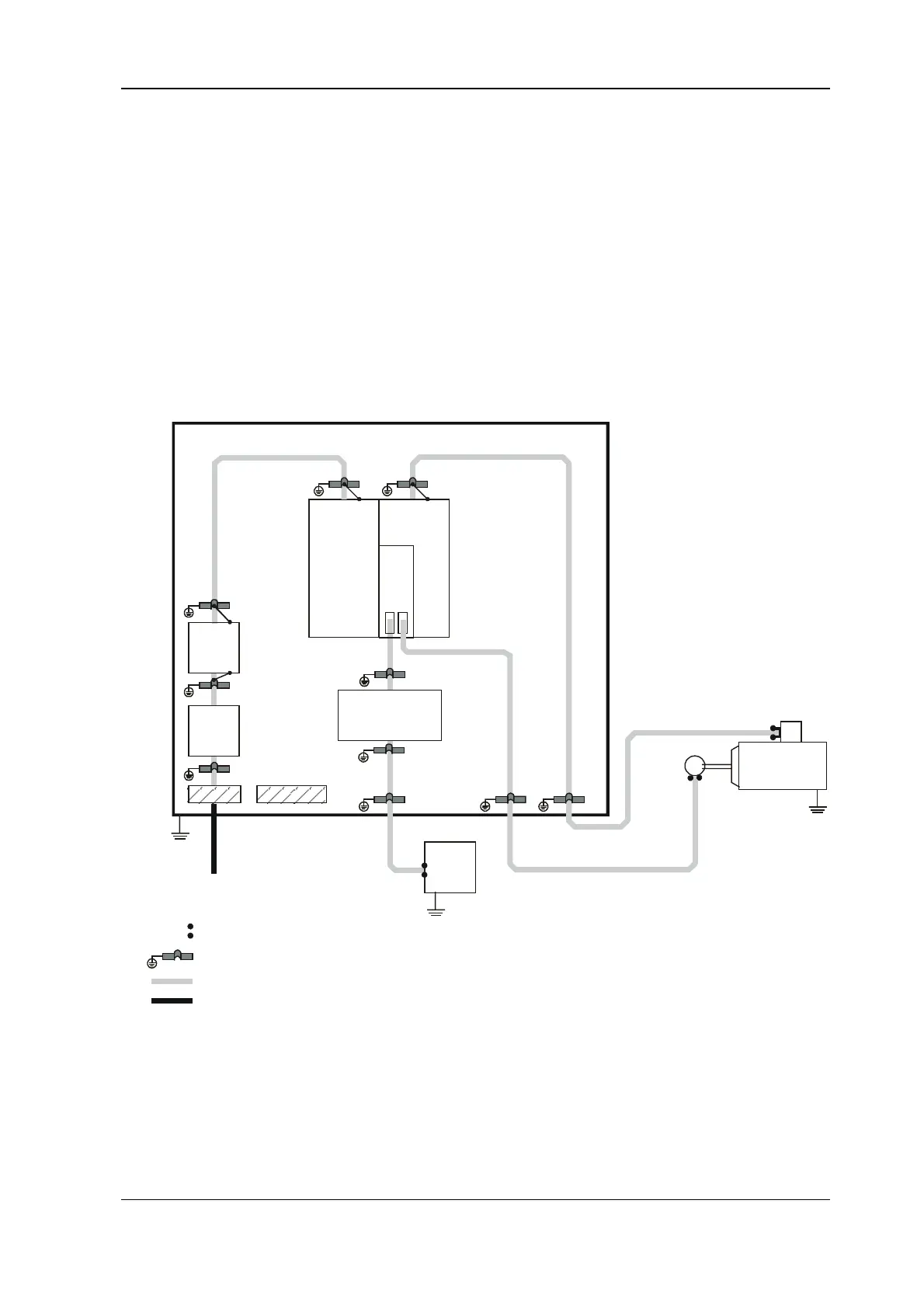

Cabling
• To suppress radiated noise outside the converter, you should screen all the connected cabling.
Also observe the topics in the section entitled "Screening".
Feed
Unit
Mains
Filter
Operator Panel
Lines routed via metallic conduit threads or connector housing with connected screen
Screen's point of contact with mounting plate
Screened Line
Unscreened Line
Distance of at least 20 cm
Switching cabinet with bare mounting plate
Closed-Loop
Controller
Servo
Power Unit
Open-Loop
Controller
G
Trans-
former
To Next Page
