Installation Accessories
38 BUG 3/2/20 Basic Feed Unit
5.96064.02 Baumüller Nürnberg GmbH

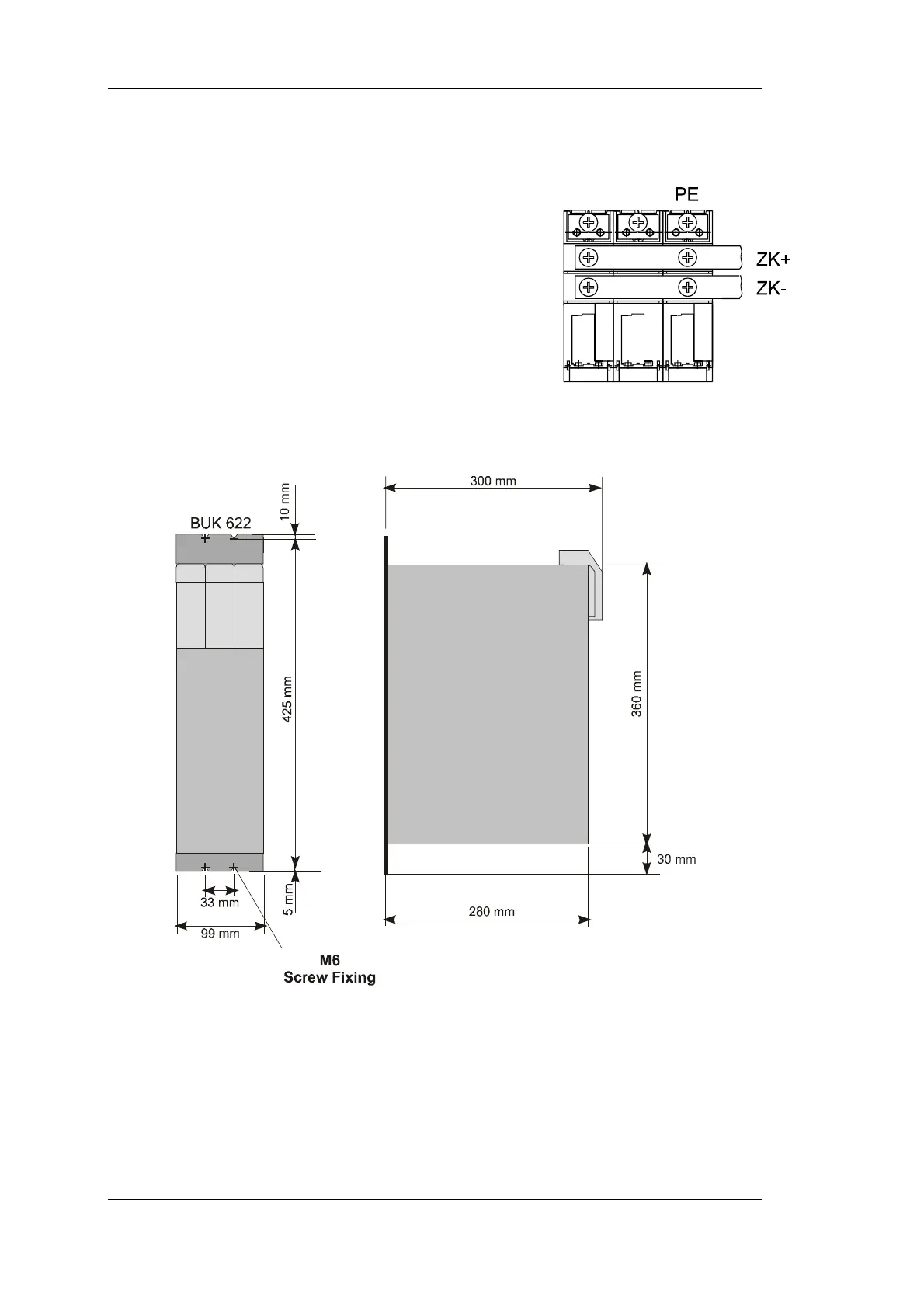

Connection
To intermediate circuits ZK+ and ZK-
− with short 10-mm² wires for Series 2/20 type
− with short 4-mm² wires for Series 3 type
deenergized.
Dimensions
