Baxi 754 - Appliance Dimensions

Page 6
OWNER GUIDE
APPLIANCE DIMENSIONS

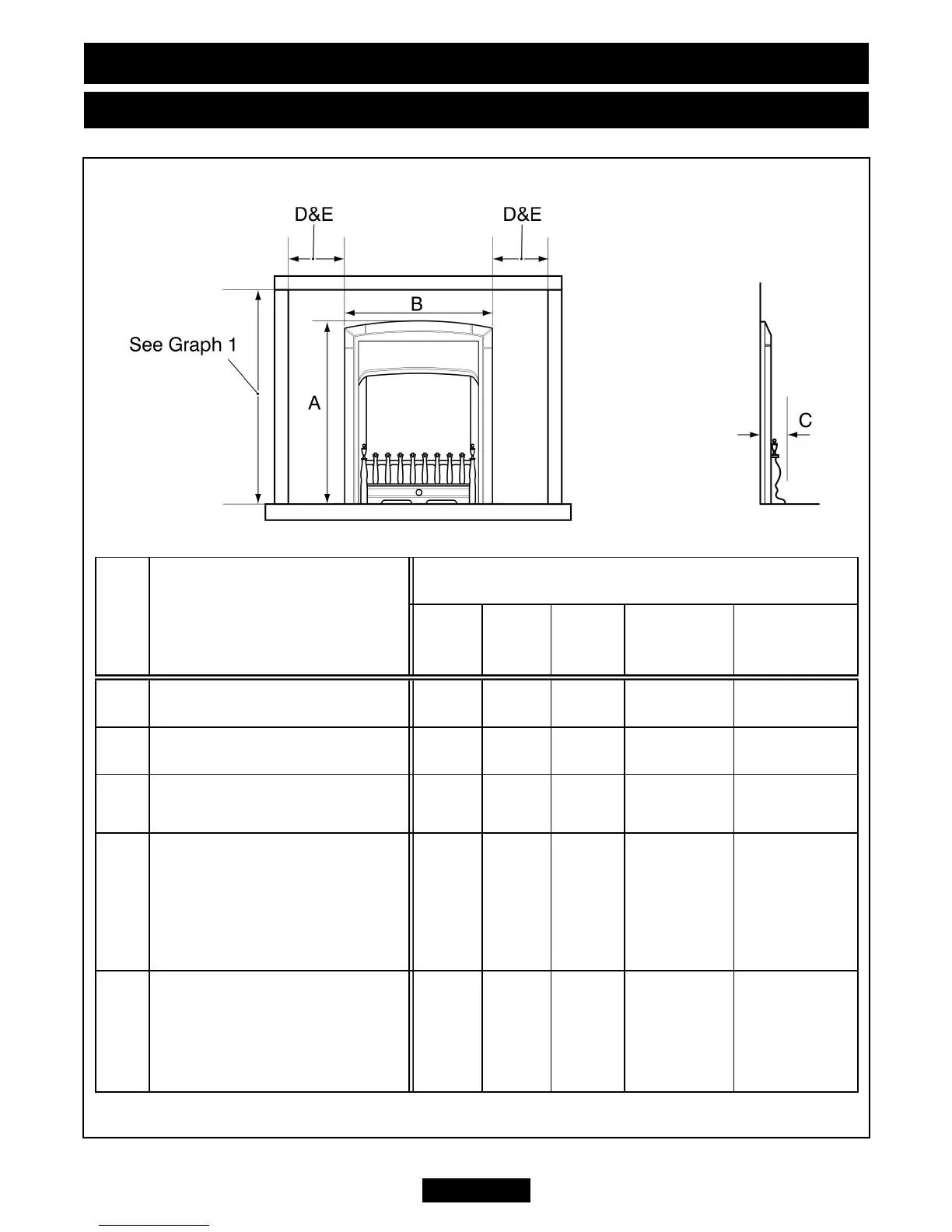

Figure 5. Appliance dimensions and clearances (Fascia may differ from that shown)
Key Description
Model
Amour Aspect
Eclipse
Fascination
Landscape
& Serenity
A Appliance height (mm) 610 612 599 599 607
B Appliance width (mm) 560 505 520 520 976
C
Appliance depth into room
(mm)
30 13 25 61 72
D
Minimum mandatory
clearance to combustible
surfaces projecting beyond
the front of appliance (mm).
10 10 10 10 10
E
Recommended clearance to
non-combustible surfaces
for access purposes (mm).
10 10 10 10 10
