Baxi EcoBlue Advance Combi 28 User Manual

16 EcoBlue Advance Combi Comp No. 7212138 - 02 (06/14)
3 Technical Specifications

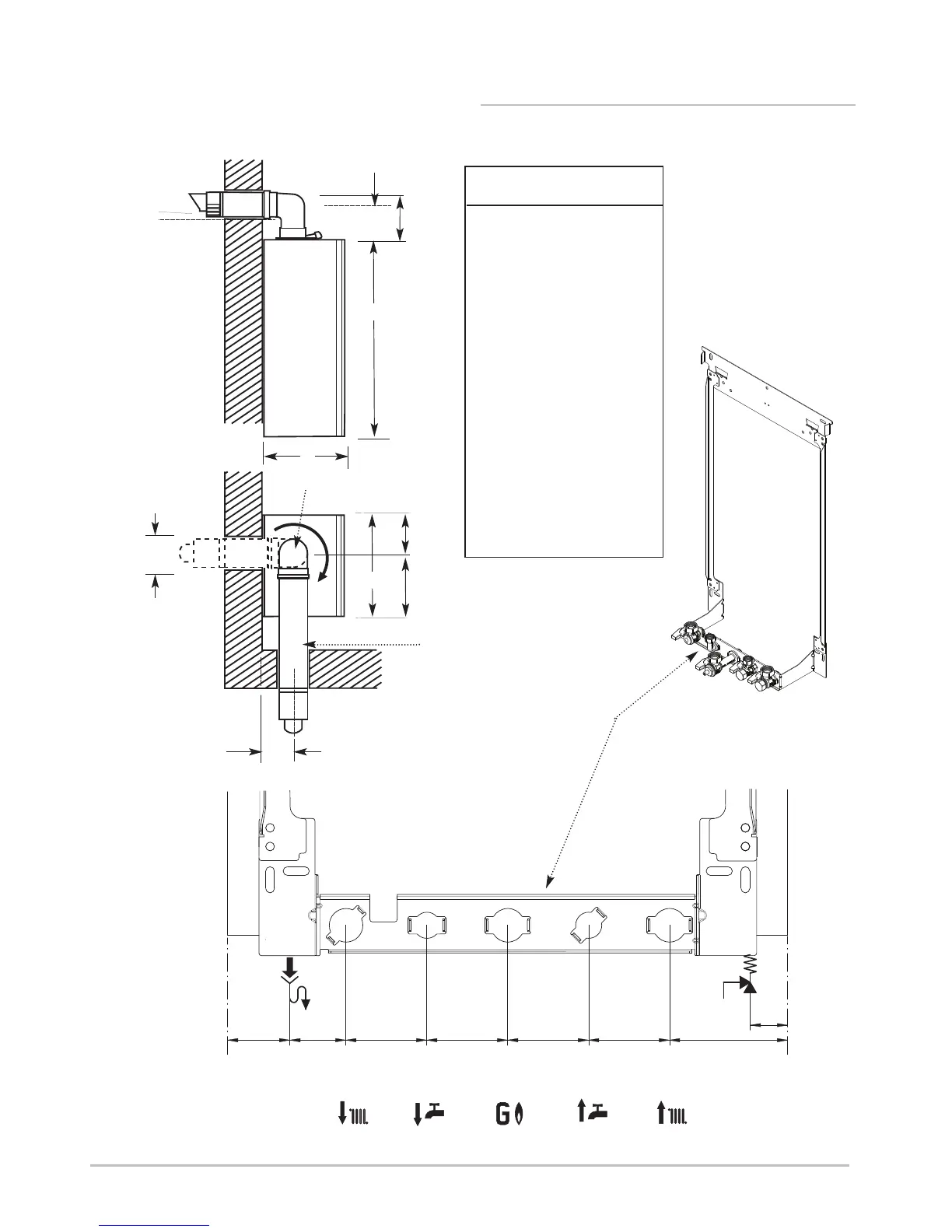

3.2 Dimensions and Connections
Dimensions
A 763mm
B 345mm
C 450mm
D 116mm Ø Min.
E 160mm
(207mm for 80/125mm
flue systems)
F 140mm
G 106mm
H 170mm
J 280mm
360° Orientation
Flue Ø 100mm
D
C
B
A
E
G
F
At least 1.5°
H
J
Pressure
Relief
Valve
(15mm)
Condensate
Drain
65 mm 65 mm 65 mm 65 mm
45 mm
50 mm
30
95 mm
Hot Water
Outlet
(15mm)
Cold Water
Inlet
(15mm)
Heating
Return
(22mm)
Heating
Flow
(22mm)
Gas
Inlet
(22mm)
Tap Rail
There must be no part of the air duct
(white tube) visible outside the property.
