Spare Parts 13
13 Spare Parts
A
B
C
D
I
F
G
K
J
O
N
P
M
Q
R
E
V
S
U

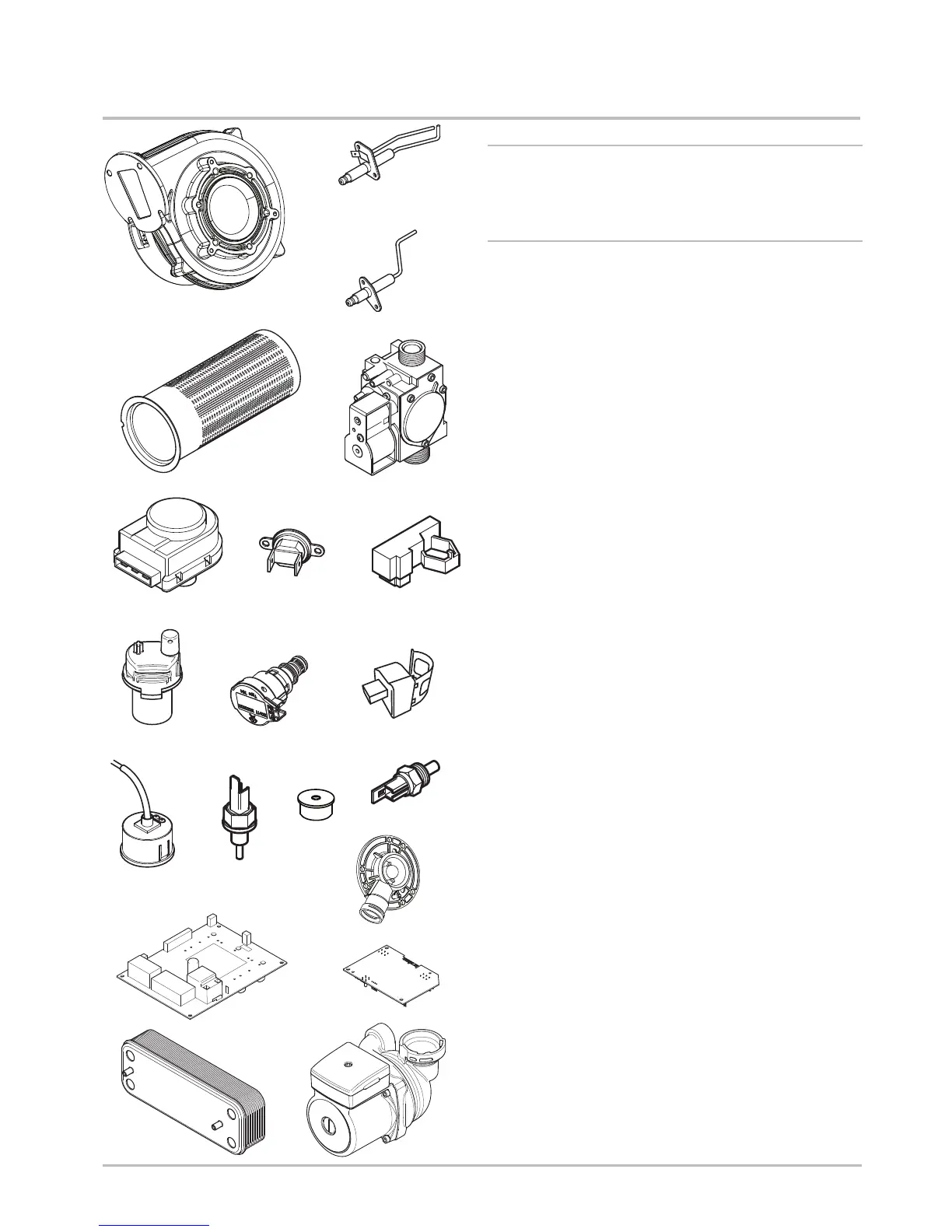

13.1 General
13.2 Spare Parts List
W
Key Description Manufacturers
No.
No. Part No.
A Fan 720768101
Fan - 40 only 7211861
B Burner - 24 & 28 7212447
Burner - 33 7212449
Burner - 40 7212448
C Spark Ignition Electrode 720767301
D Flame Sensing Electrode 7211855
E Gas Valve 7214341
F Safety Thermostat 720765301
G Hall Effect Sensor 720788201
I Plate Heat Exchanger 720852401
J Diverter Valve Motor 720788601
K Pump 720787401
M Heating Flow/Return Sensor 720747101
N DHW NTC Sensor 720789201
O Pump Automatic Air Vent 720787601
P Hydraulic Pressure Switch 720789001
Q Heating Pressure Gauge 7212896
R Flue Sensor 720851401
S PCB - 24 7211757
PCB - 28 7211758
PCB - 33 7211759
PCB - 40 7211760
U Ø5.0 Gas Nozzle Injector - 24 7211862
Ø5.6 Gas Nozzle Injector - 28 7214344
Ø6.6 Gas Nozzle Injector - 33 7211864
Ø6.8 Gas Nozzle Injector - 40 7214346
V Air/Gas Venturi - 24 7211858
Air/Gas Venturi - 28 7211859
Air/Gas Venturi - 33 & 40 7211860
W Boiler Control HMI PCB 7211868
1. If, following the annual inspection or maintenance any part of
the boiler is found to need replacing, use Genuine Baxi Spare
Parts only.
