Baxi Luna 3+ - Illustrated Wiring Diagram

50
7217395.01 - en
INSTRUCTIONS PERTAINING TO THE INSTALLER

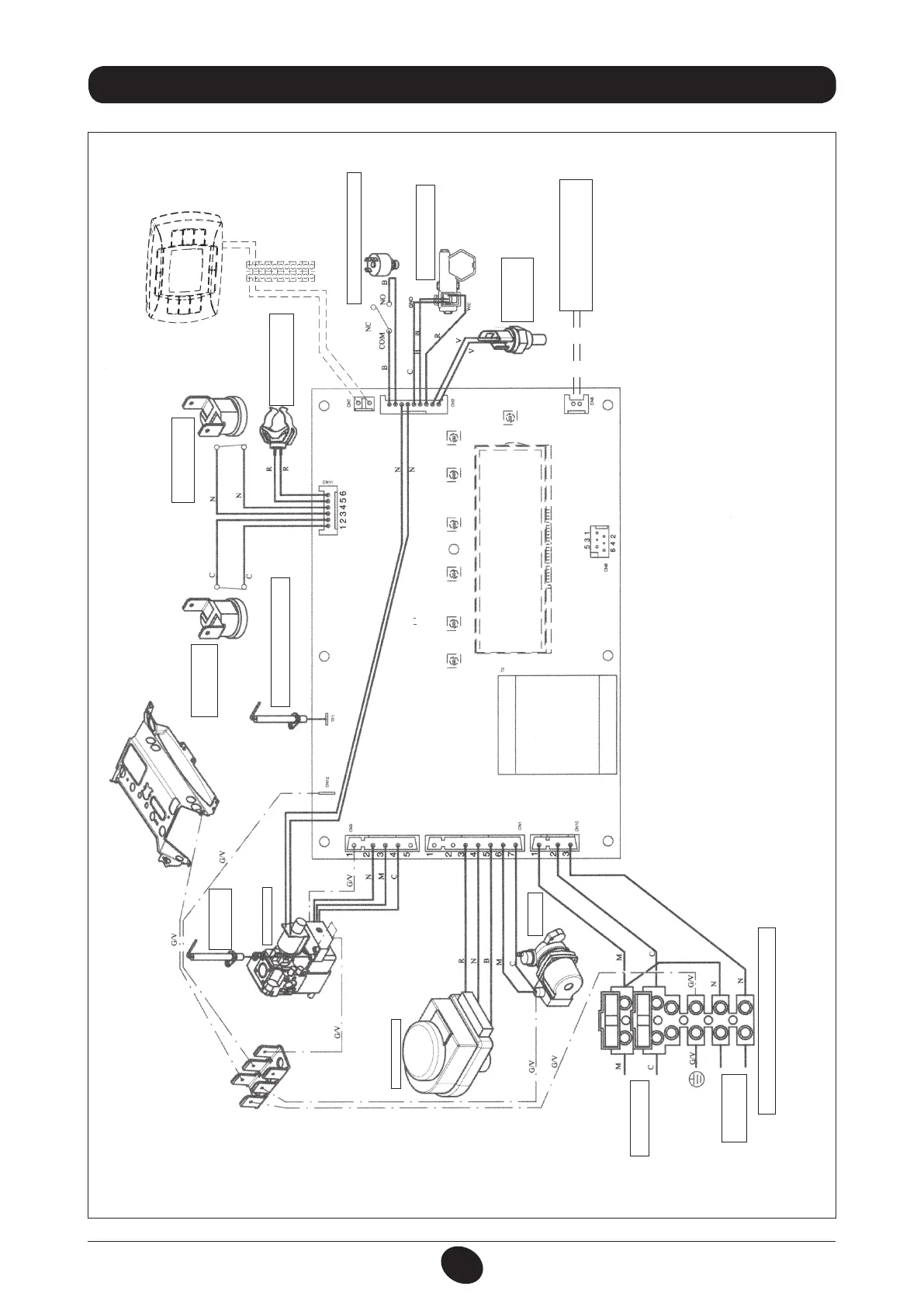

32. ILLUSTRATED WIRING DIAGRAM
FEEDING POWER
GRID
SAFETY
THERMOSTAT
IGNITION
ELECTRODE
3-WAY VALVE
CENTRAL
HEATING NTC SENSOR
AIR
PRESSURE SWITCH
ROOM
THERMOSTAT
FLAME SENSING ELECTRODE
WATER PRESSURE SWITCH
DHW
PRIORITY SENSOR
PUMP
DHW NTC
SENSOR
FEEDING TERMINAL BLOCK
GAS VALVE
CABLES COLOURS C= light blue
M= brown N= black R= red G/V= yellow/green B= white V= green
1411_1101
CONNECTION FOR EXTERNAL
SENSOR PROBE
(SEE SECTION 24)
