Baxi Megaflo 2 System Compact GA Range - 5.0 Dimensions and Fixings

11

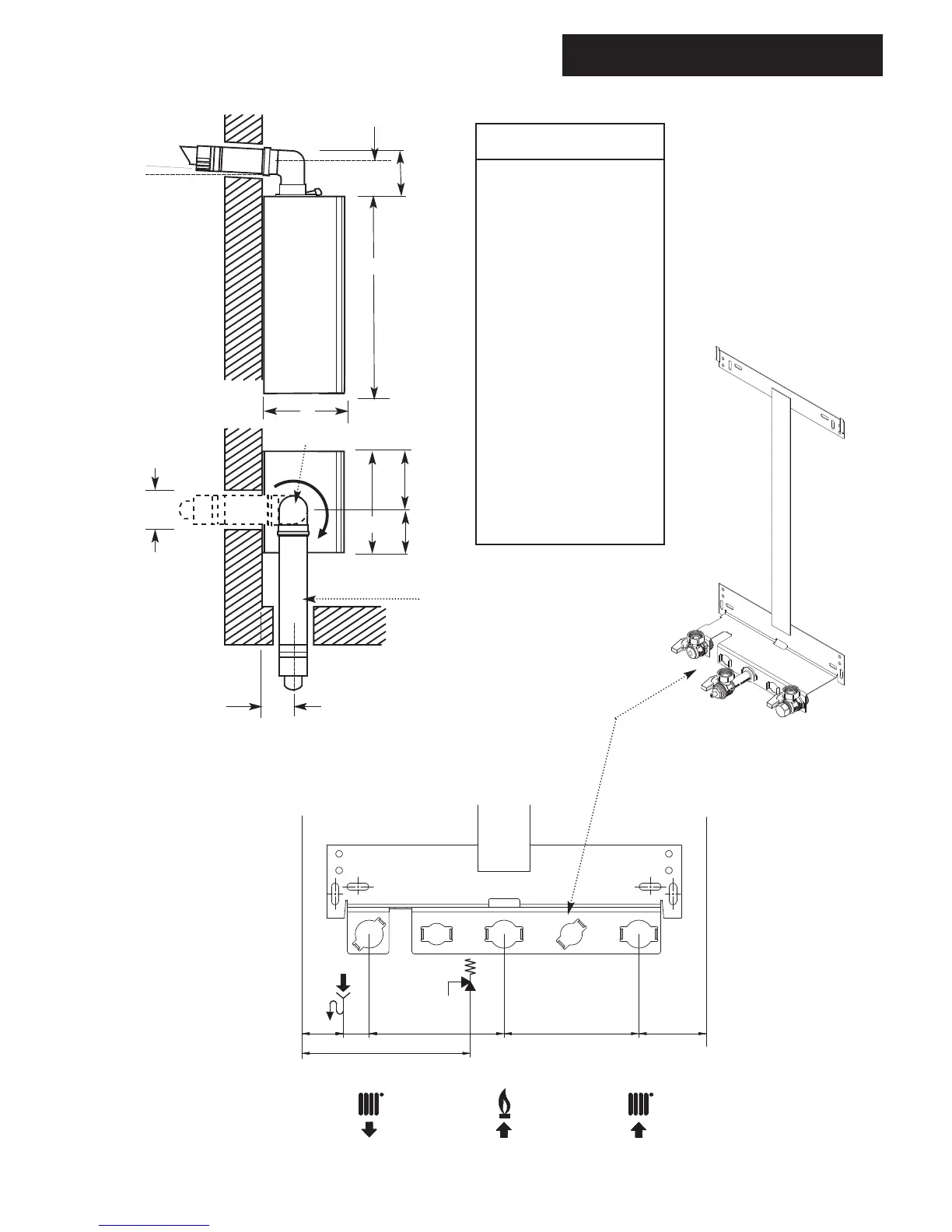

5.0 Dimensions and Fixings
© Baxi Heating UK Ltd 2013
360° Orientation
Flue Ø 100mm
D
C
B
A
E
G
F
At least 1.5°
H
J
Heating
Flow
(22mm)
Gas
Inlet
(22mm)
Heating
Return
(22mm)
Pressure
Relief
Valve
(15mm)
Condensate
Drain
Boiler
Side
Boile
r
Side
130 mm
25
mm
130 mm 65 mm40 mm
162.5 mm
Tap Rail
Dimensions
A 700mm
B 300*mm
*This can be reduced to 290mm by
removing the boiler control access flap
C 390mm
D 116mm Ø Min.
E 160mm
(207mm for 80/125mm
flue systems)
F 130mm
G 106mm
H 228mm
J 162mm
