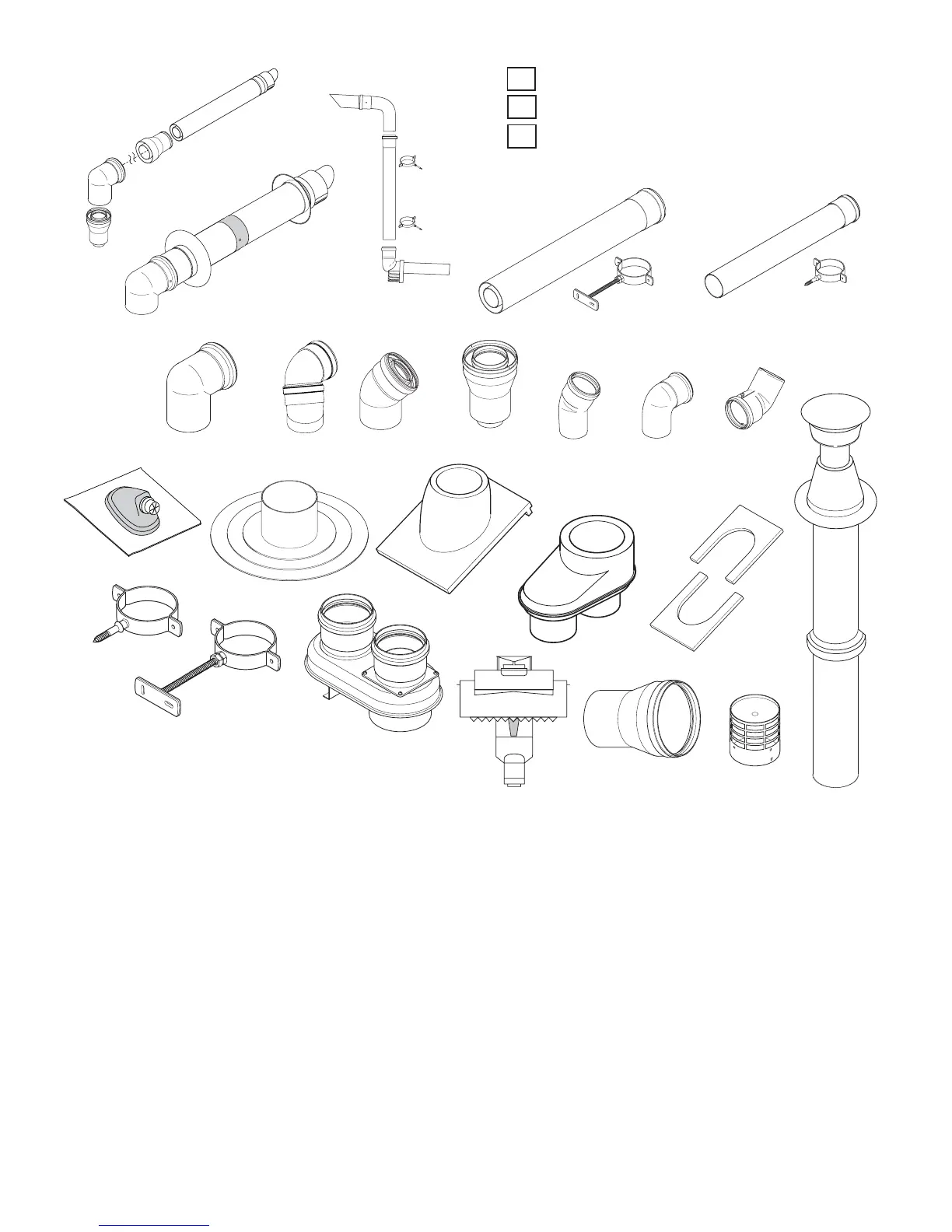

FLUE ACCESSORIES
Flue Groups
Ø60/100 Flue Systems - with Positive Fix
Ø80/125 Flue Systems
Ø80/80 Twin Flue Systems
E
G
F
A4
G
N
A
Y, Z
Key Accessory Size Code No
FLUE GROUP A
Concentric Flue System 60/100mm diameter
A Telescopic Flue (Black) 315-500mm 720598701
A Telescopic Flue (Brown) 315-500mm 720642701
A Telescopic Flue (White) 315-500mm 720599401
A Telescopic Flue Neta-tec &
Platinum GA (Black) 315-500mm 720870201
(all Telescopic Flues include 1 x Low Profile Bend)
B Flue Extension (includes support bracket) 1000mm 720648801
B Flue Extension
(includes support bracket) 500mm 720643001
B Flue Extension
(includes support bracket) 250mm 720643101
C Flue Bend
(In Line) 93° 720648401
C2 Offset Elbow
(for boiler only, Duo-tec 93° 720635501
range & Megaflo 32 )
D Flue Bend 135° 720648501
D Flue Bend
(pair) 135° 720647901
U Flue Support Bracket 100mmØ 5111080
R Vertical Flue Adaptor 60/100 to 80/125
(use with 5111078) 5111070
S Flue Terminal Deflector
(Black) 5111068
S Flue Terminal Deflector
(White) 720644201
S Flue Terminal Deflector
(Brown) 720642701
MISCELLANEOUS
Z Single Terminal 80mm
(air inlet only) 5121791
Z1 60 - 80 Adaptor - Twin Flue 5121792
Z2 Pitched Roof Terminal-Twin Flue (Z1 req’d) (Black) 720576301
Z3 Ridge Terminal (Brown) 720647101
Z4 PDK - (Black) 720622901
Z4 PDK - (White) 720627001
Key Accessory Size Code No
FLUE GROUP G
Flue System 80/125mm diameter
A4 Horizontal Flue Kit 685mm 5118580
B Flue Extension Kit 1000mm 5118584
DBend
(pair) 135° 5118597
C Bend 91.5° 5118588
U Flue Support Bracket 125mmØ 5118610
FLUE GROUP N
Twin Flue System 80mm diameter
E Flue Extension
(pair, includes 2 brackets) 1000mm 5111087
F Flue Bend
(pair) 90° 5111072
G Flue Bend
(2 pair) 135° 5111086
J Vertical Flue Boiler Adaptor Kit 5111079
H Vertical Flue Adaptor 5111084
Y Twin Flue Terminal (Horizontal Termination) 5120172
W Flue Support Bracket (pair) 80mmØ 5111081
FLUE GROUP A, N, G
Vertical Flue Kits
K Vertical Flue Terminal 60/100 5118576
K1 Vertical Flue Terminal 80/125 (Black)
(use with 5111070) 5111078
L Pitch Roof Flashing (Black) 25°/50° 5122151
M Roof Cover Plate 246143
N Flat Roof Flashing (Black/Grey) 246144
Z1
Z4
Z3
Z2
