Ridge Flue Terminal - Suitable for Flue Group A (60/100)
The MAXIMUM equivalent flue length when using this
terminal is 8 metres !
Special Notes
This flue terminal is designed predominantly for use in new
build situations where the roof construction allows for
ridge penetration.
In retrofit installations roofing materials will need to be
removed/replaced and the roof structure may require
alterations to accommodate the passage of the flue system.
Any work of this nature should be carried out by a
competent person and the integrity of the roof structure
should never be compromised.
The Ridge Flue Terminal replaces a 450mm ridge tile. The
profile allows it to blend with most common ridge tiles.
Positioning at the ridge should be in accordance with relevant
Building Regulations and British Standards. Ensure the roof is
prepared to allow for the throat section of the terminal
(50mm) to pass directly into the roof space and cut roofing
felt/boarding as necessary. A clearance of 25mm from
combustible materials must be maintained.
NOTE: Once installed the terminal design will allow rain
and condense to be discharged into the flue exhaust pipe.
It is essential to connect the ridge terminal to a
completed flue system connected to the boiler. If left
unconnected prior to the completion of fitting the flue
system and boiler, provision should be made to collect
rain water etc. from the terminal and to drain it away as
necessary.
Please Refer to the Fitting Instructions supplied with the Kit.

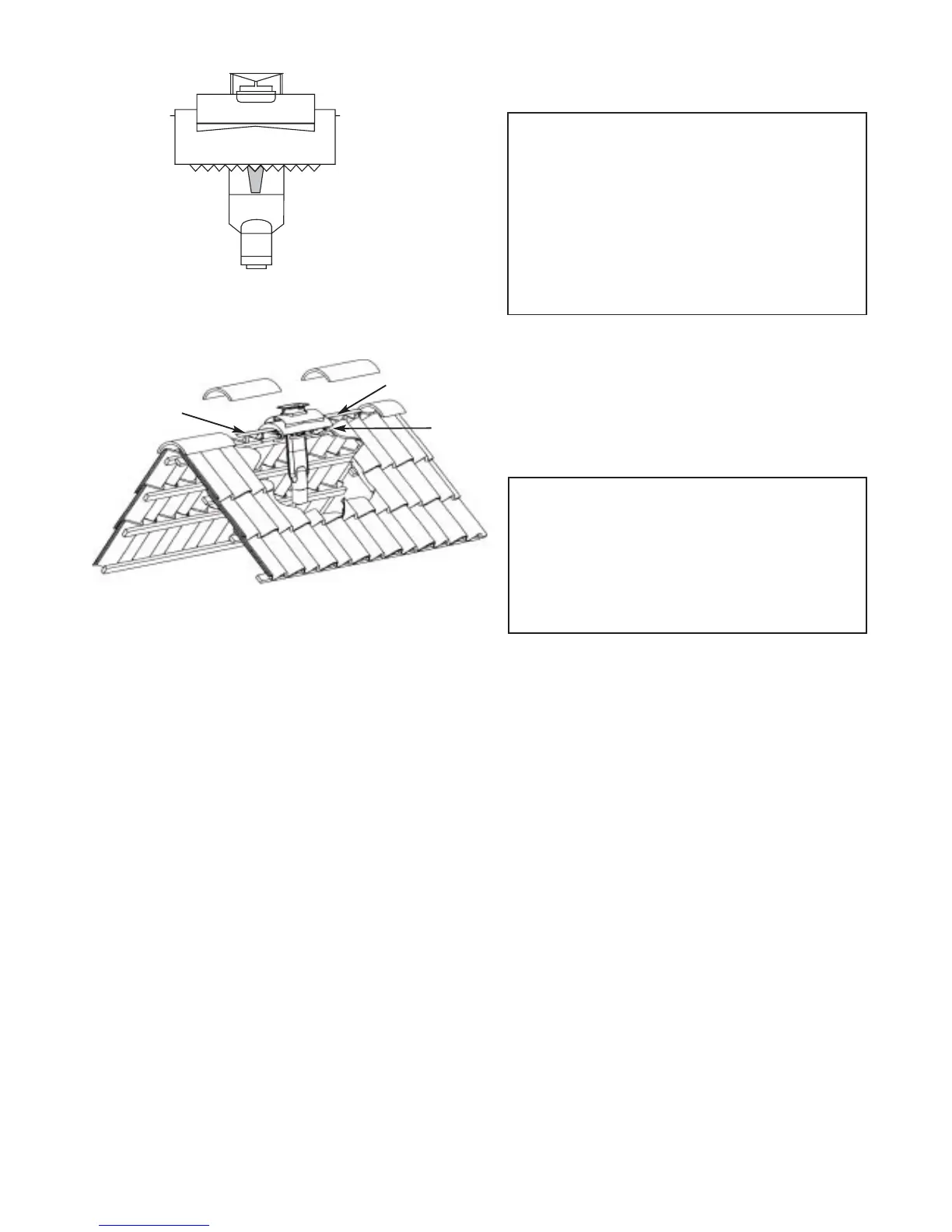

Ridge Terminal Assembly
