page 9
© Baxi Heating UK Ltd 2011

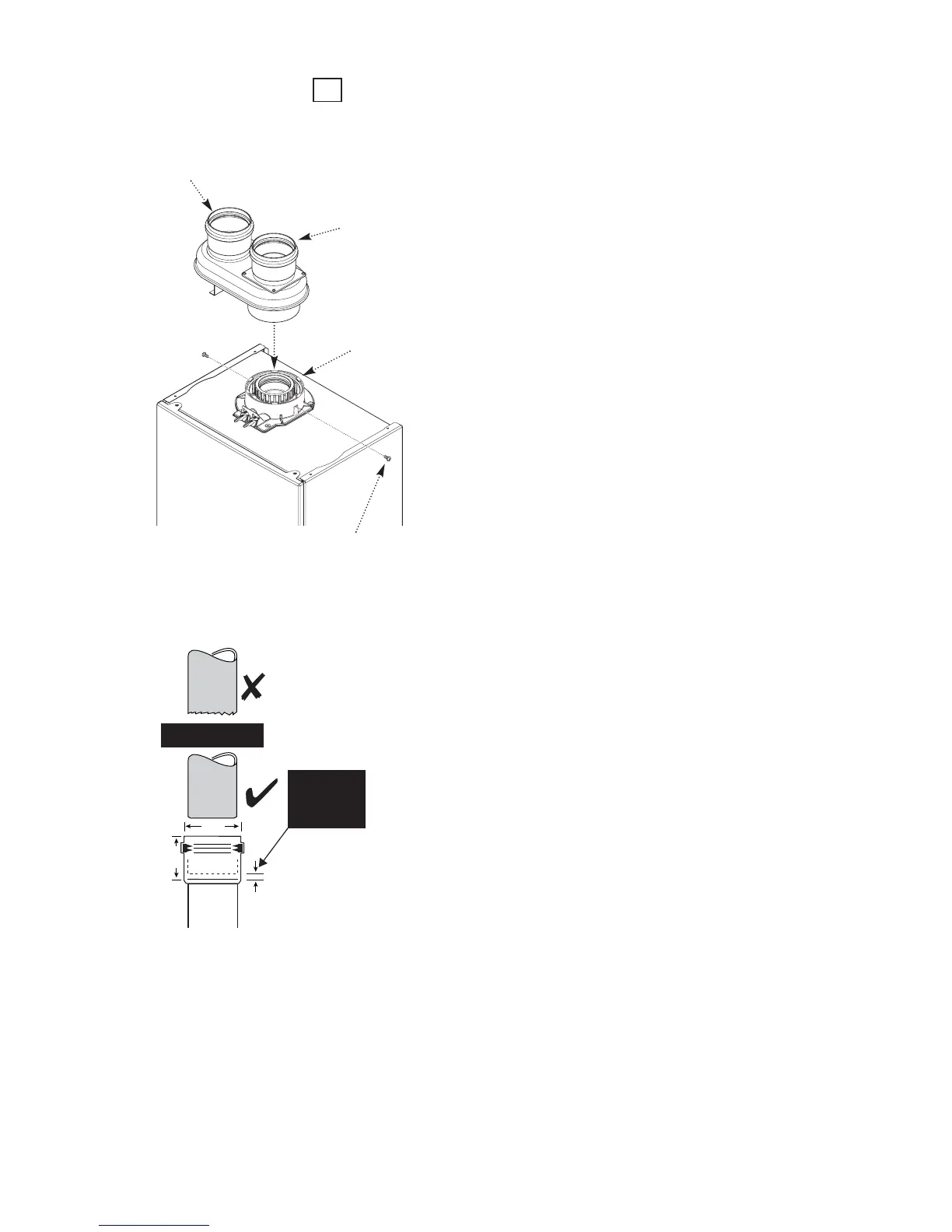

Exhaust Duct Adaptor
Air Duct Adaptor
FITTING THE ADAPTOR
For Use With Flue Group
Ø80/80 Twin Flue Systems
N
Boiler Adaptor
Twin Pipe Flue System (80/80)
The kit allows connection of a twin flue system to the boiler
adaptor.
Engage the twin flue duct adaptor in the boiler adaptor,
making sure that it is pushed down as far as possible.
Ensure that the air & flue ducts are connected correctly and
that they are adequately supported (at least once every
metre using the brackets supplied).
Cut the extensions to length if required (cut at the MALE
end !), ensuring that they are square and free from burrs.
USE OF SUPPORTS & SECURING
The flue system MUST be supported AT LEAST once every
metre of actual length, and every straight length should be
supported with the bracket supplied.
Additional support brackets may be purchased separately.
DO NOT use brackets other than those supplied or shown
in this guide.
The support bracket must be positioned on the main length
of the pipe.
Securing Screw
