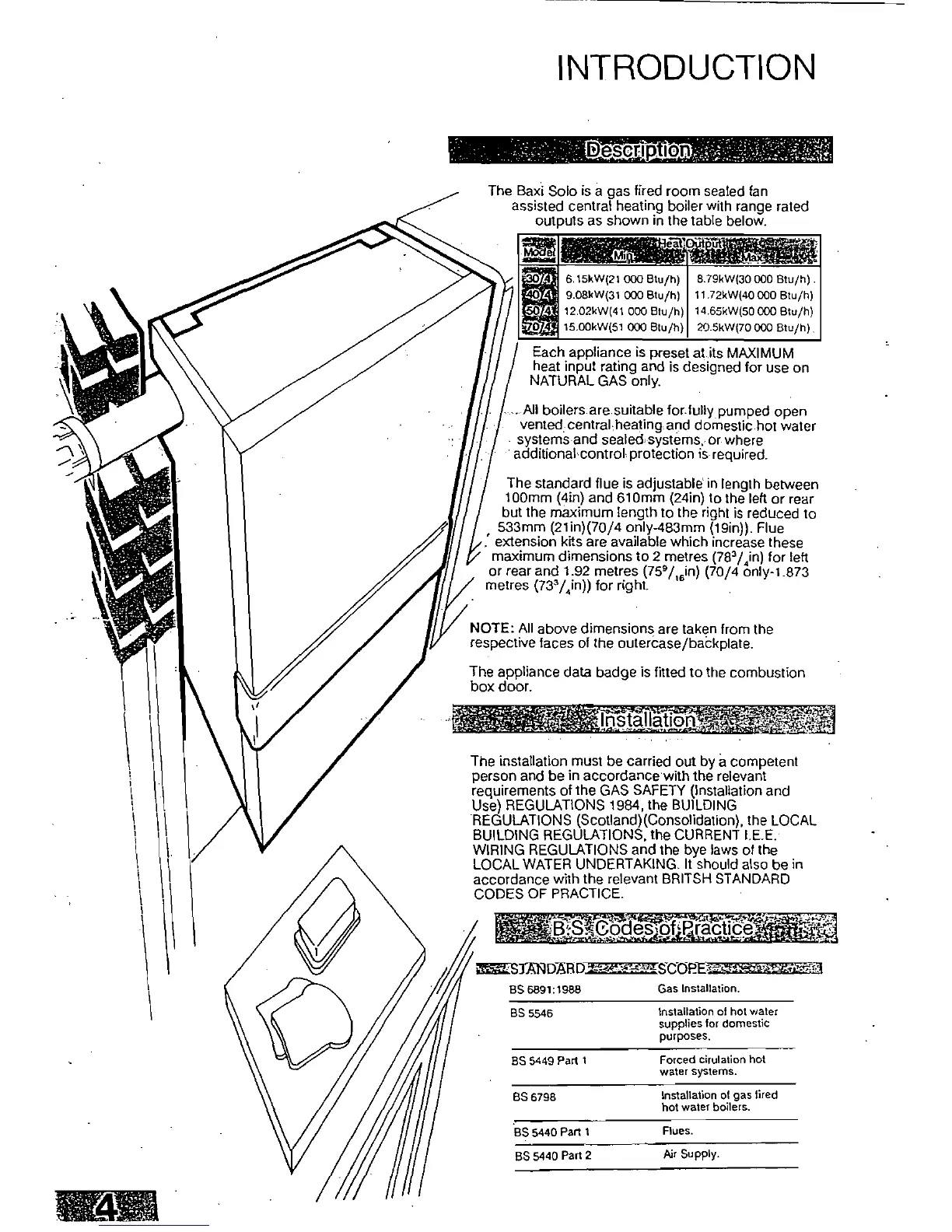

INTRODUCTION
The Baxi Solo is a gas fired room sealed fan
assisted central heating boiler with range rated
outputs as shown in the table below.
L
.:.:7.,
.i:1,3saTtlir
^
g
"
?.
M
-;-..-1•.•,,a
• -
..
i,
,
..
VA
r.,..?,15::41]lfrrii.;.;.,:).,t1.,
6.15kW(21 000 Btu/h)
8 79kW(30 000 Btu/h)
-:
I
I
0
9.08kW(31 000 Btu/h)
11.72kW(40 000 Btu/h)
..
c
a
-
.
12.02kW(41 000 Btu/h)
14.65kW(50 000 Btu/h)
15.00kW(51 000 Btu/h)
20.5kW(70 000 Btu/h)
Each appliance is prese at its MAXIMUM
hea input rating and is designed for use on
NATURAL GAS only.
...AB boilers are suitable for fully pumped open
vented central heating and domestic hot water
•
systems and sealed, systems, or where
additional control protection
is
required.
The standard flue is adjustable in length between
100mm (4in) and 610mm (24in) to the left or rear
but the maximum length to the right is reduced to
533mm (21in)(70/4 only-483mm (19in)). Flue
extension kits are available which increase these
maximum dimensions to 2 metres (78
3
/
4
in) for left
or rear and 1.92 metres (75
9
/
16
in) (70/4 only-1.873
metres (73
3
/
4
in)) for right.
NOTE: All above dimensions are taken from the
respective faces of the outercase/backplate.
The appliance data badge is fitted to the combustion
box door.
:Inpitallation;
.4 • A,
The installation must be carried out by a competent
person and be in accordance with the relevant
requirements of the GAS SAFETY (Installation and
Use) REGULATIONS 1984, the BUILDING
REGULATIONS (Scotland)(Consolidation), the LOCAL
BUILDING REGULATIONS, the CURRENT I.E.E.
WIRING REGULATIONS and the bye laws of the
LOCAL WATER UNDERTAKING. It should also be in
accordance with the relevant BRITSH STANDARD
CODES OF PRACTICE.
13;Sfiebeles,of,Praadtid:e
STANDARDaSCOPai
85 6891:1988
Gas Installation.
BS 5546
Installation of hot water
supplies for domestic
purposes.
88 5449 Part 1
Forced cirulation hot
water systems.
BS 6798
Installation of gas fired
hot water boilers.
BS 5440 Part 1
Rues.
855440 Part 2
Air Supply.
