197, 219, & 249 • Owner’s Manual
Supplement
Chapter 3: Locations
27

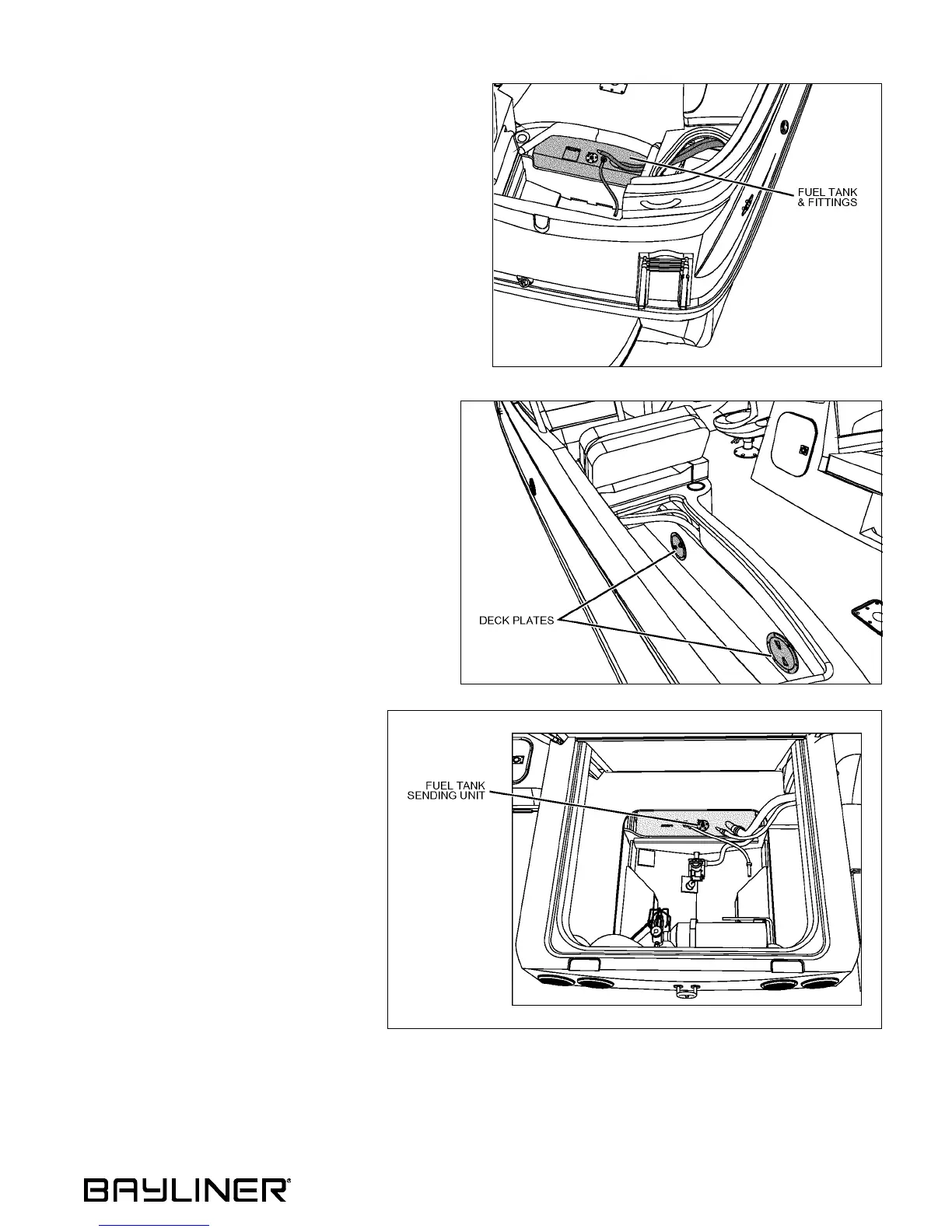

Fuel Tank Fittings - 219:
• Located in the forward area of the engine compartment.
• Access by lifting the motorbox cover.
Fuel Tank Fittings - 249:
• Located on the fuel tank, under the cockpit floor.
• Access through the deck plates under the port mid
seat cushion.
Fuel Tank Sending Unit - 197:
• Located on the fuel tank, in the forward
area of the engine compartment.
• Access by lifting the engine hatch.
