Chapter 3: Locations 197, 219, & 249 • Owner’s Manual
Supplement
28

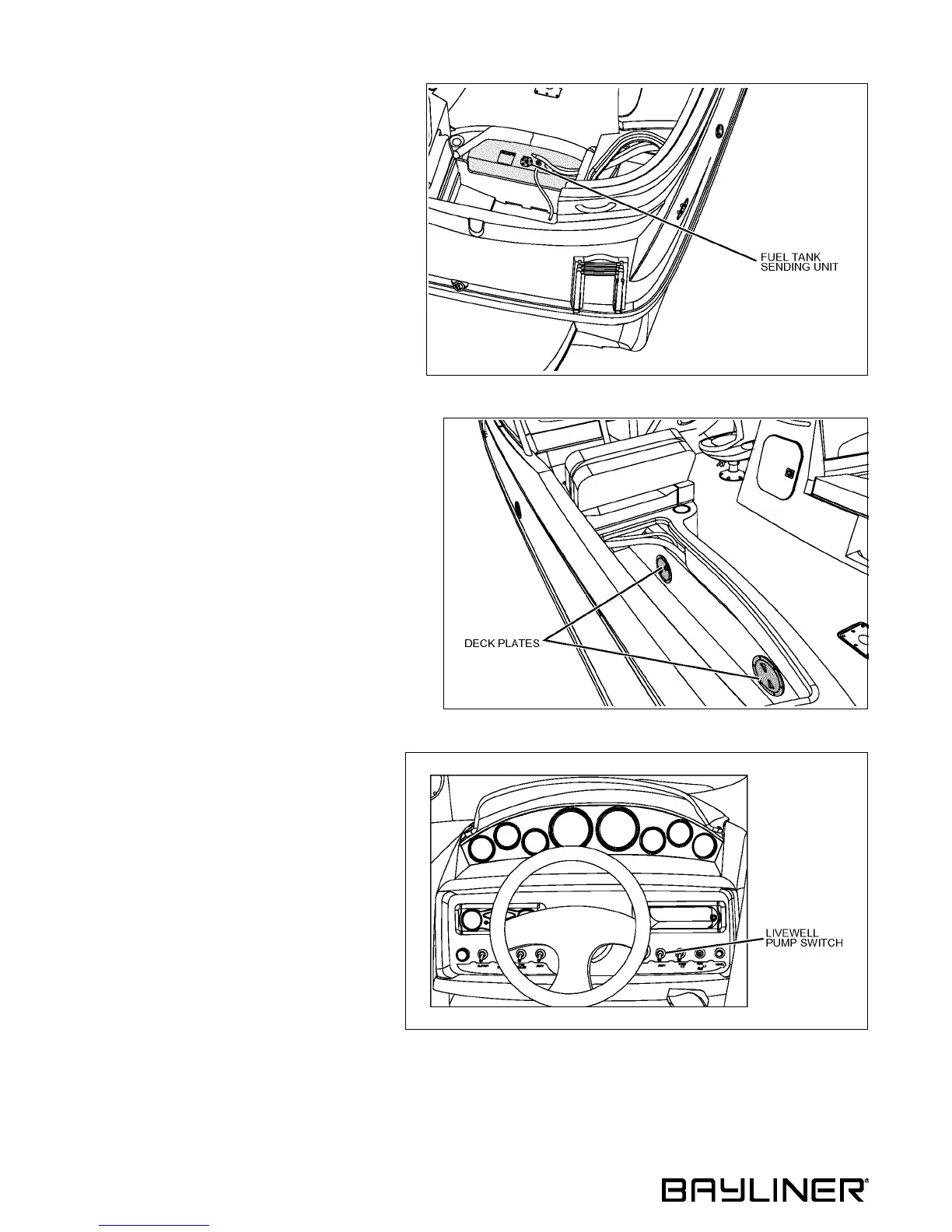

Fuel Tank Sending Unit - 219:
• Located on the fuel tank, in the forward area of
the engine compartment.
• Access by lifting the motorbox cover.
Fuel Tank Sending Unit - 249:
• Located on the fuel tank, under the cockpit floor.
• Access through the deck plates under the port mid
seat cushion.
Livewell Pump Switch - 197 (If Equipped):
Located at the helm.
