Electrical Routings

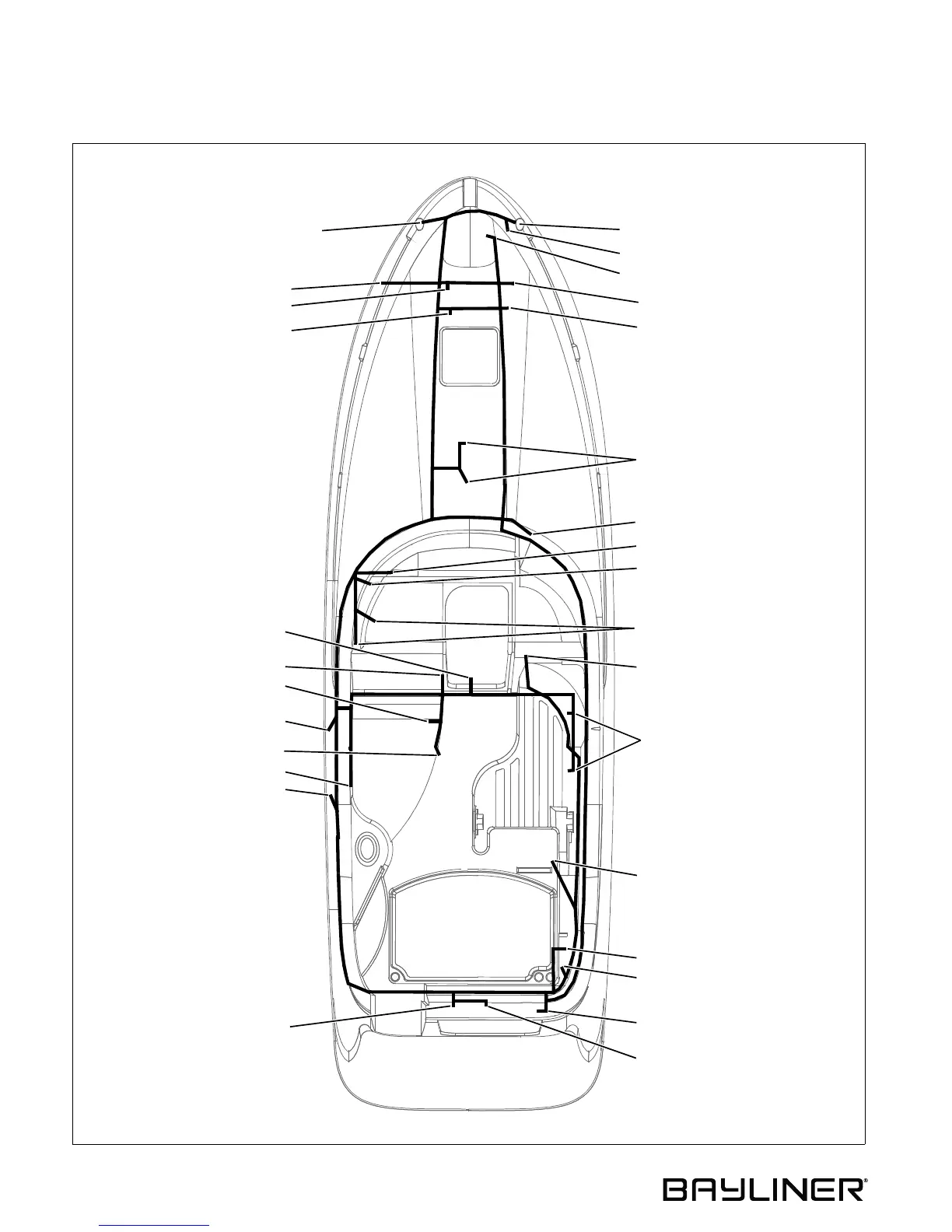

12-Volt DC Deck Electrical Harnesses
BATTERY SWITCH
BLOWER
HARNESS PLUG
ENTRY LIGHT
BATTERIES
COCKPIT LIGHT
COCKPIT LIGHT
AFT BERTH LIGHTS
AFT BERTH LIGHT
SPEAKER
SPEAKER
SPEAKER
CABIN LIGHT
GALLEY LIGHTS
HORN
WINDLASS (IF EQUIPPED)
PORT NAVIGATION LIGHT
STARBOARD NAVIGATION LIGHT
CO MONITOR
WIPER
HEAD LIGHTS
ENTRY SWITCH
CABIN LIGHTS
CABIN LIGHT
SPEAKER
ALL-ROUND LIGHT
NOTE: VIEW IS OF UNDER SIDE OF DECK.
COCKPIT LIGHT
(IF EQUIPPED)
SHIFTER & MAST LIGHT
SPOTLIGHT (IF EQUIPPED)
