RJ08X007 Standard Rollover Cable RJ45 to RJ45

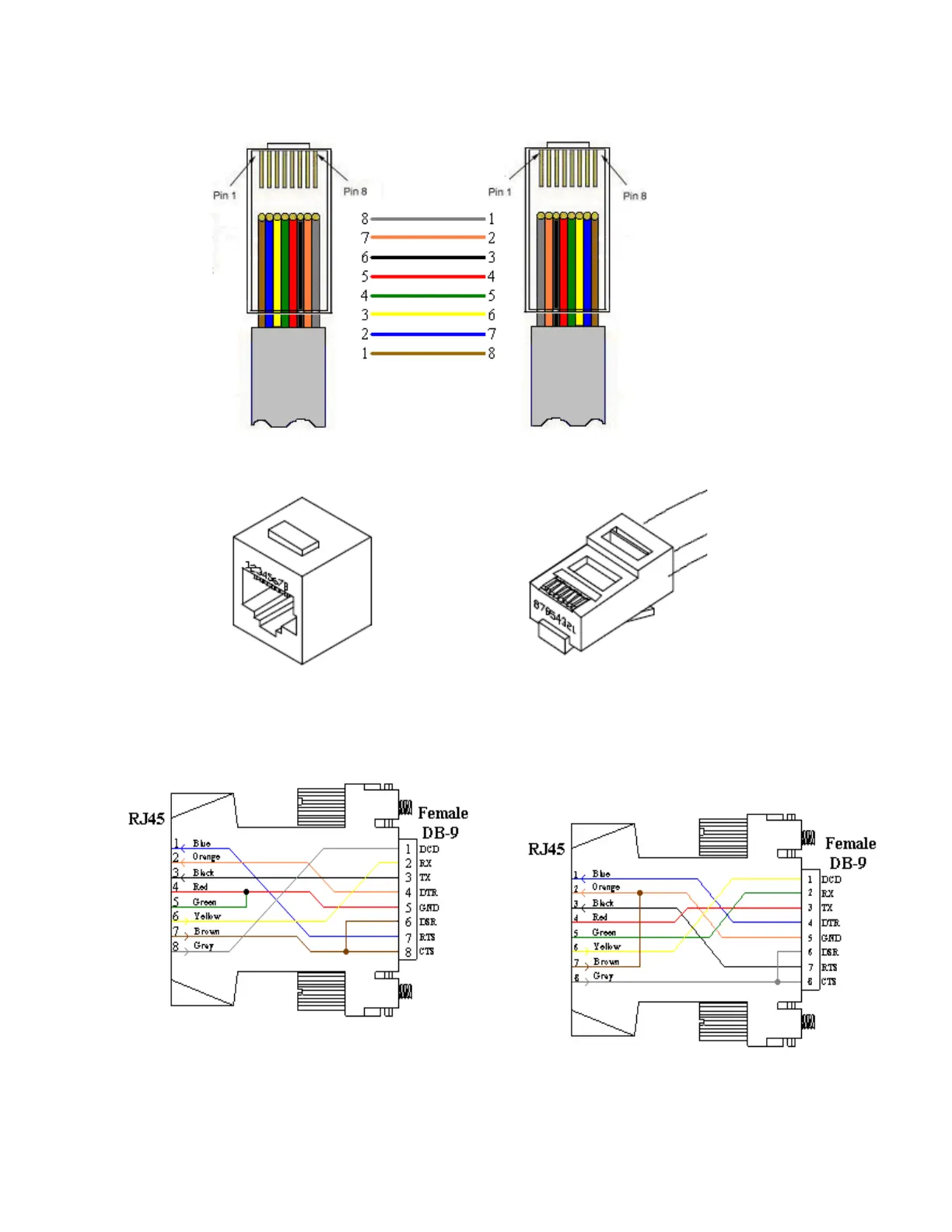

Figure 2: RJ08X007 Pin Out
Figure 3: RJ45 Connector & Plug
Adapters
Figure 4: 9FRJ45PC Cisco Adapter Pin Out
Figure 5: 9FRJ45PC-1 Adaptor Pin Out
(Use with RJ08X007 Cable
And B/C switch in “C”) (Use with RJ08X007 Cable
And B/C switch in “B”)
