2. Connect the Bazzaz fuel harness and begin to route the harness towards the air box
along the right hand side of the bike.
3. Route the Bazzaz ground/power leads and the speed/neutral/rear injector leads
along the right hand side of the bike towards the rear of the bike.
3>REMOVE
4>SECURE

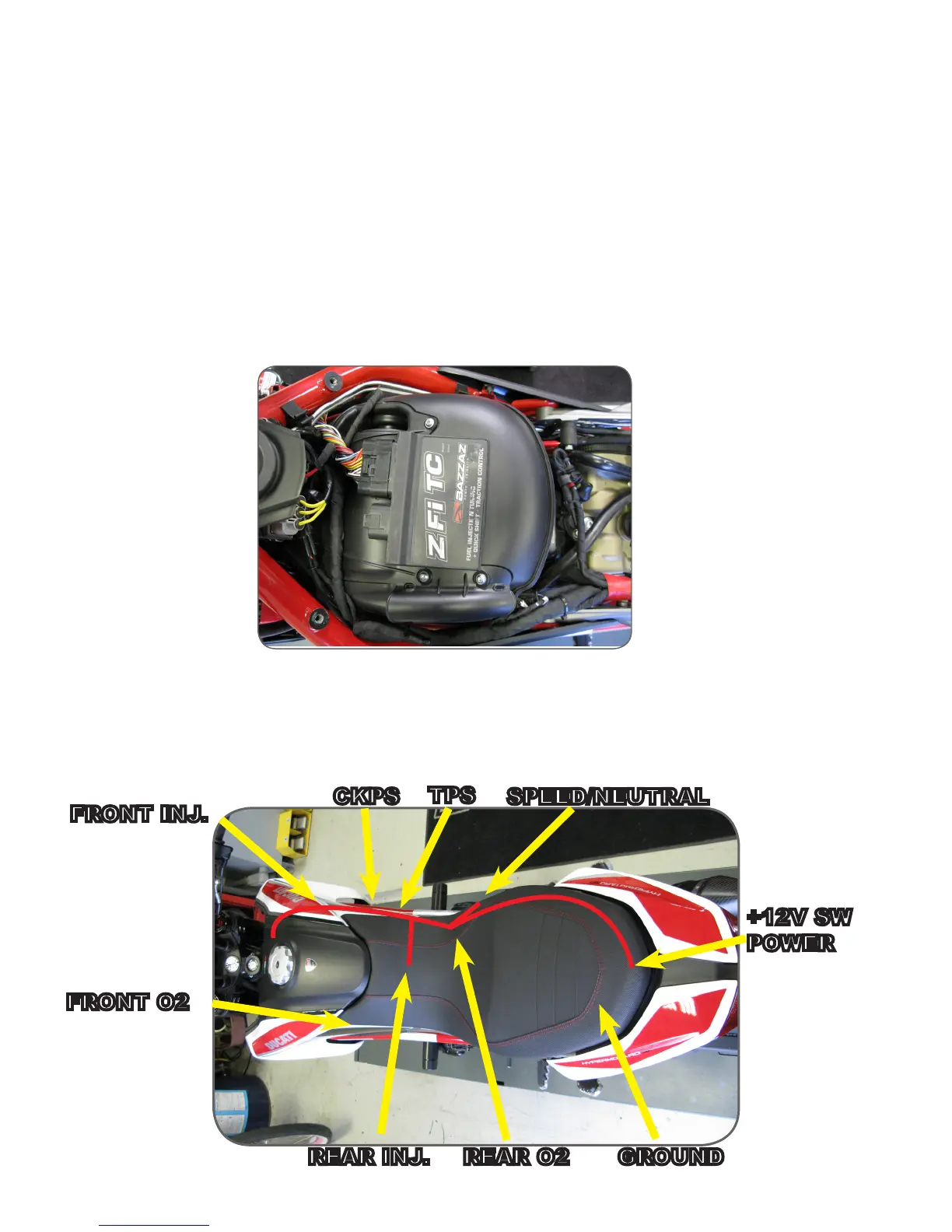

1. The Bazzaz control unit will be installed and secured on top of the air box.
1. Rider seat
2. Left and right side fairing
3. Fuel tank
+12V SW
POWER
GROUND
FRONT INJ.
CKPS
TPS
SPEED/NEUTRAL
NOTE: DO NOT DISCONNECT THE FACTORY ECU DURING THE INSTALLATION
FRONT O2
REAR INJ. REAR O2
