GSF2818K
Owner’s Manual
8

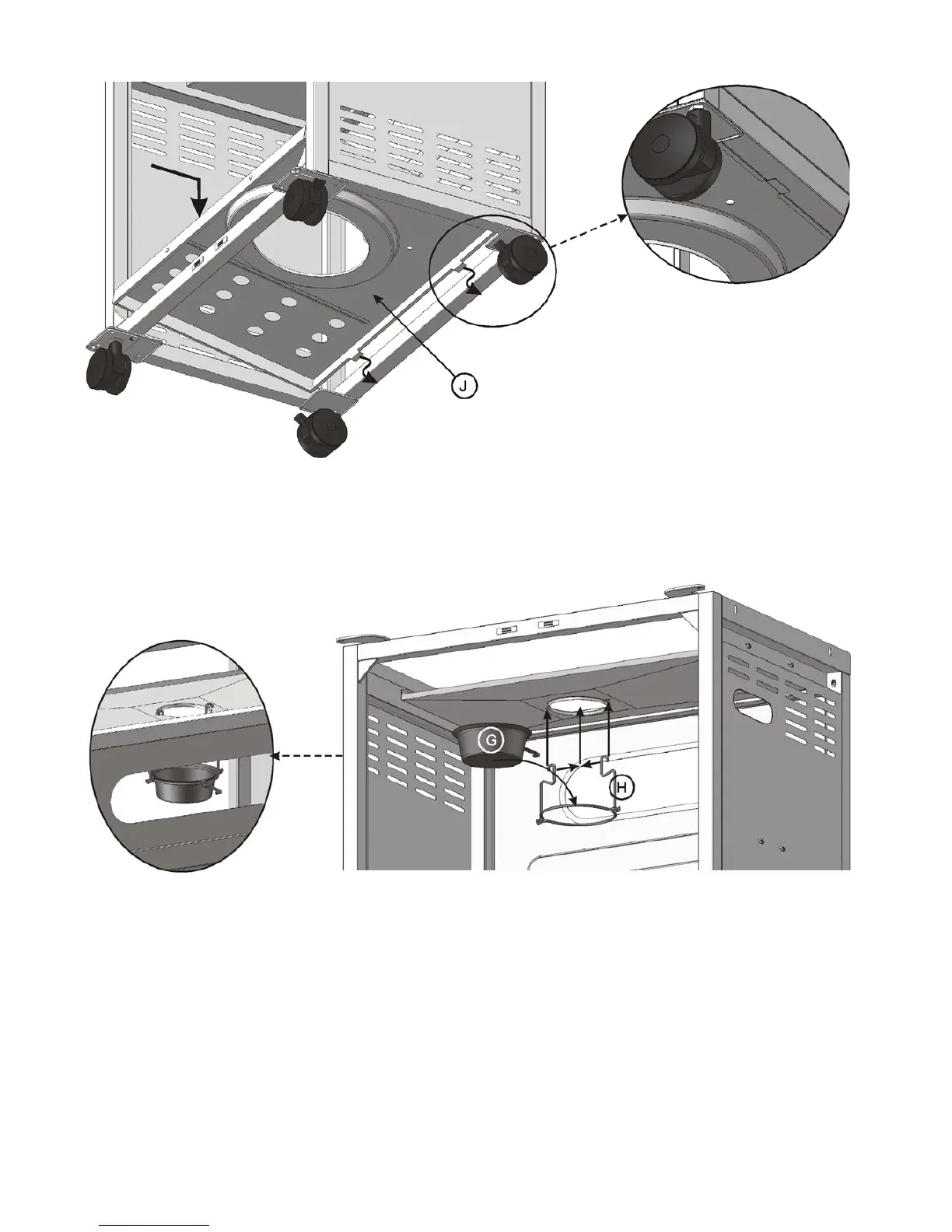

Step 4
(Cart bottom panel assembly)
a) Place the cart bottom panel (J) onto the cart bottom
frame as shown, make certain the two ears of the
bottom panel are under the bottom frame. (See the
above diagram).
Step 5
(Grease cup & support assembly)
a) Hook the grease cup support (H) into the two holes on the heat insulation panel.
b) Place the grease cup (G) onto the grease cup support.
To Next Page
