BBV CTI/1 - Example System Configuration; System Diagram and Connectivity

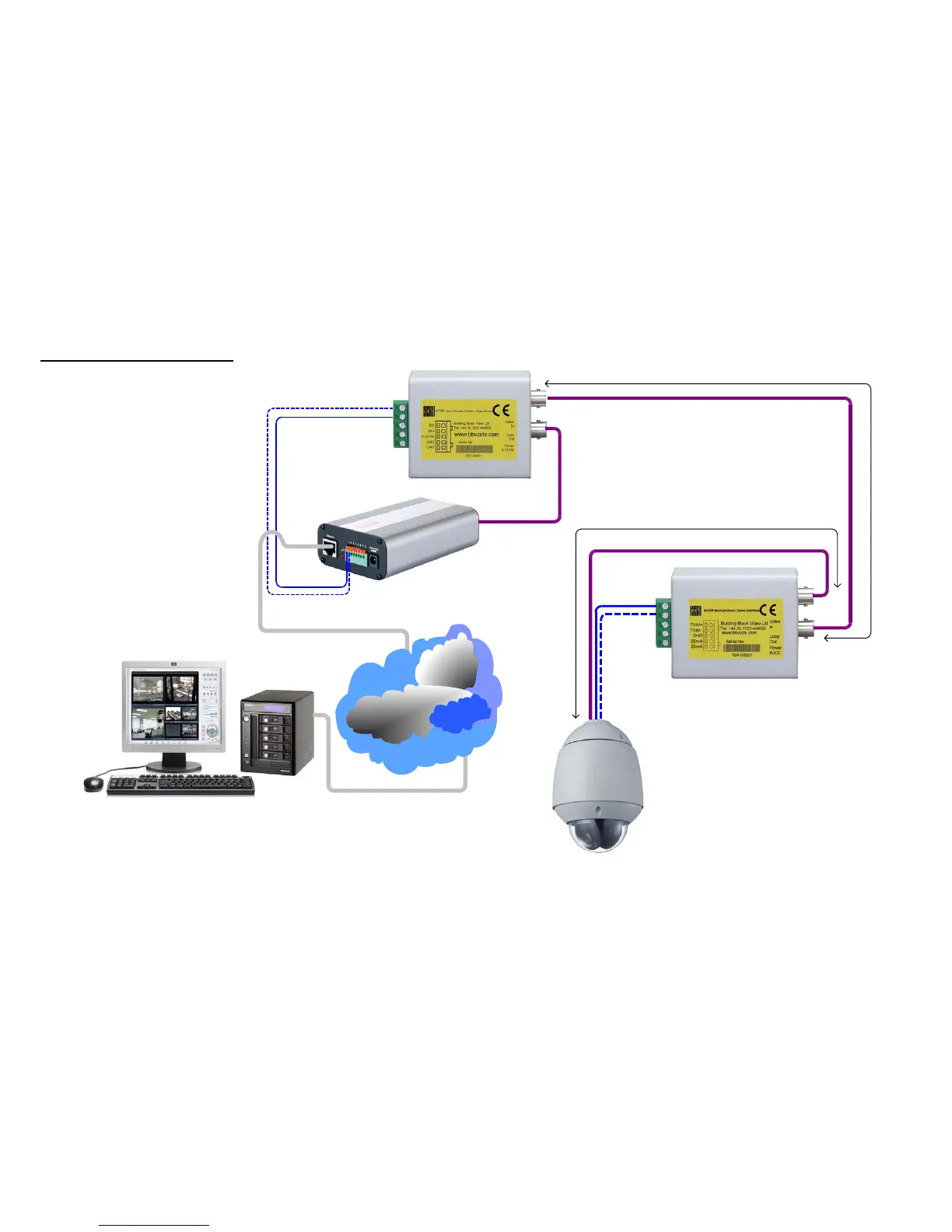

Example System Drawing
CTI/1
RX10X
IP ENCODER
NVR SYSTEM
UNDEFINED
DOME
up to 250m RG59
up to 500m CT125
up to 5m RG59
BBV RS422 or Pelco P
9600 N81Protocol
