bca FLOAT - Installing Compressed Air Cylinder; Connecting Air Hose to Cylinder; Securing Trigger Cable and Cover

10
1. Remove packaging caps from compressed air cylinder. To reach the trigger cable and air hose,
unzip the main storage compartment and fold back the Velcro flap inside.

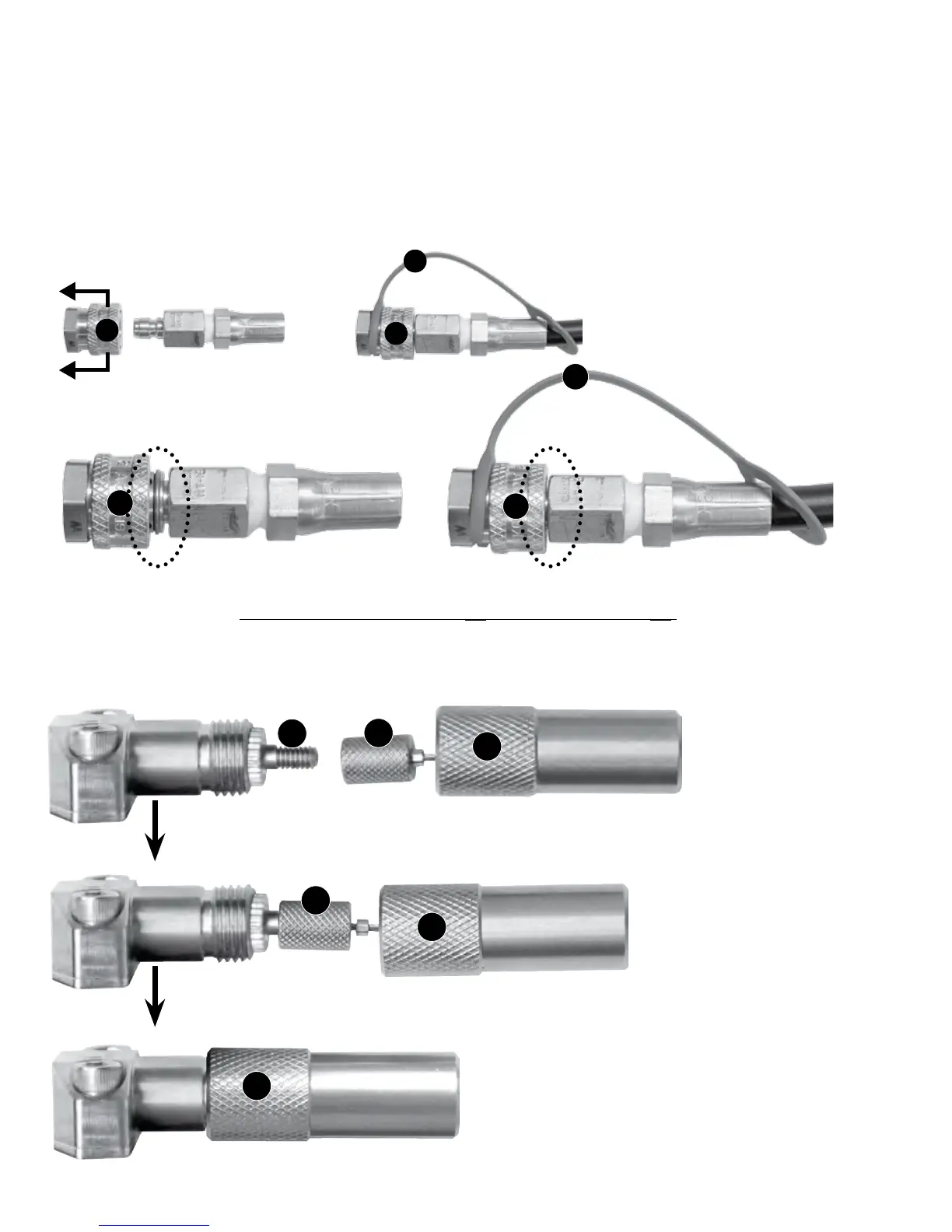

2. With the compressed air cylinder outside of the backpack’s cylinder sleeve, connect the quick
connect fitting on the air hose
u by pulling the large ring toward the air cylinder v. It should click
back into place when air hose
w is properly connected. Coupler gauge x should fit in place to
ensure air hose is connected properly.
1
4
1
WRONG
1
1
4
SECURE
3.
IMPORTANT! Screw the trigger cable nut y onto the trigger pin z. To expose the trigger
cable nut before threading it onto the trigger pin, it might be necessary to push the trigger handle
upwards.
4. Screw the trigger cover
{ over the trigger cable nut y.
6
5
7
TRIGGER CABLE NUT ATTACHED
5
7
TRIGGER COVER ATTACHED
7
Installing Compressed Air Cylinder
