15
Removing and Installing the Airbag System
The 12/13 Float packs feature a removable and interchangeable airbag system. The airbag
components can be swapped between the Float 32 and Float 22/Float Throttle or removed entirely.
Removing
1. To remove the airbag, open the airbag compartment by pulling the breakaway zipper apart under
the Velcro flap. Never try to “unzip” the airbag compartment zipper. Doing so could result in damage
to the breakaway zipper.

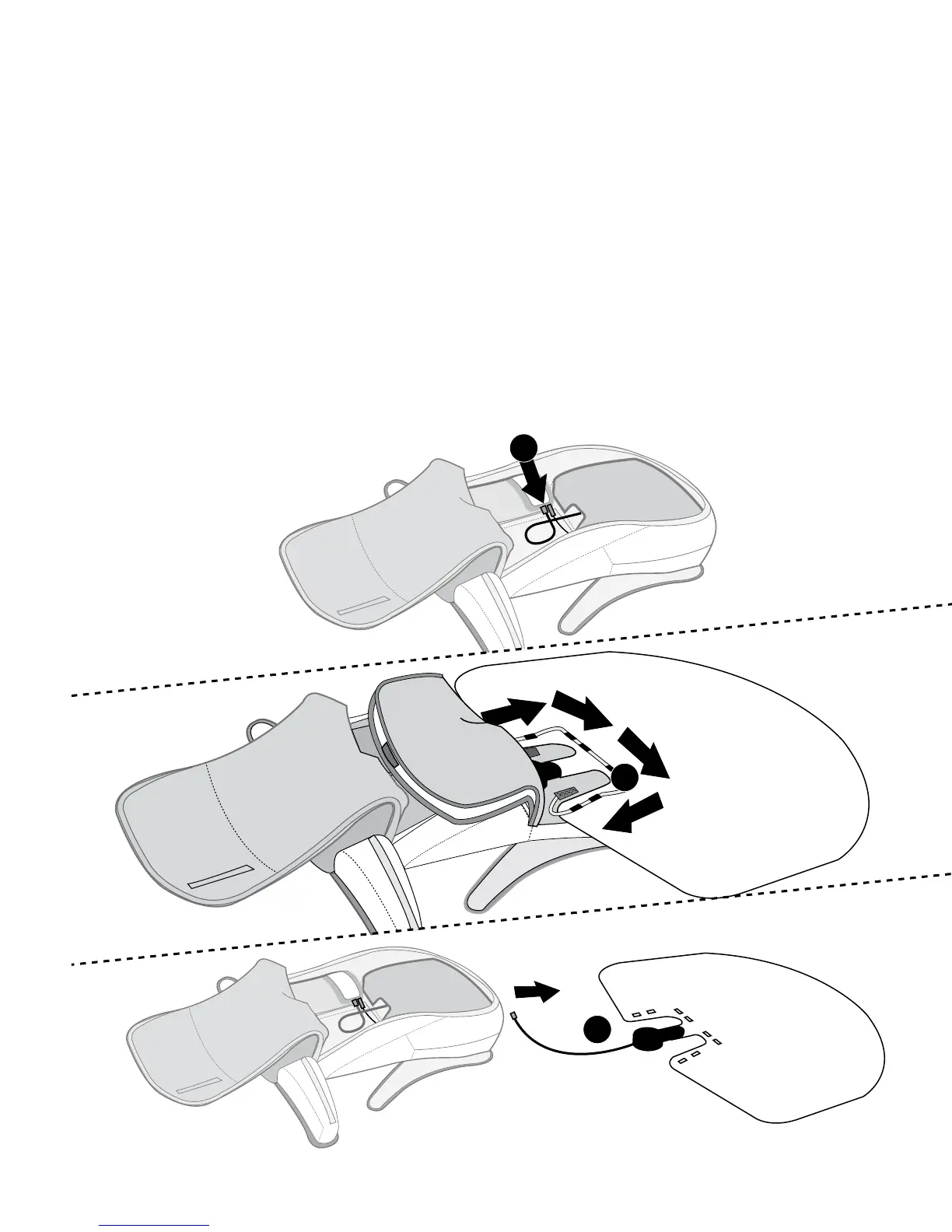

2. Disconnect the trigger cable and air hose from the cylinder (a).
3. Unfasten the black Velcro holding the loose end of the orange rope in place. Un-thread the rope
from the webbing loops (b).
4. Once the rope is no longer threaded through the webbing loops, the airbag, ejector, trigger cable and
air hose are free to remove (c). The trigger cable stays with pack, but can be removed as noted later in
the section “Moving the Trigger.”
a
b
c
