BCB 14000 BTU - Window Venting Kit Assembly; Installation Options

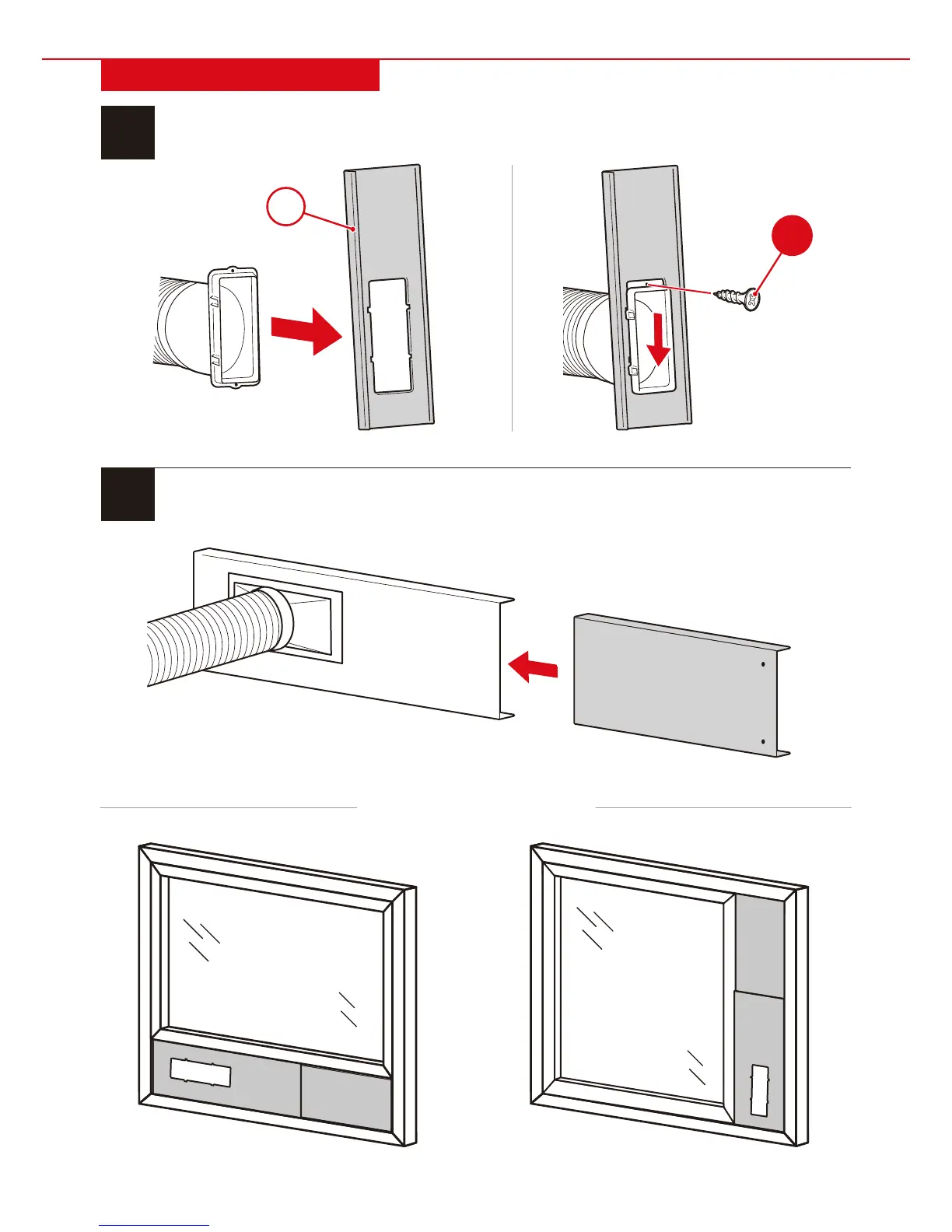

Line up the tabs on the venting adaptor with the hole in the part D window venting kit and slide
it to lock it in place. Secure the venting adaptor (from the opposite side) with a part 1 screw.
Slide the panels of the window venting kit together.
PRODUCT ASSEMBLY
3
4
HORIZONTAL
| 7
VERTICAL
INSTALLATION OPTIONS
D
1
