BDCOM S2528-C Hardware Installation Manual
- 10 -

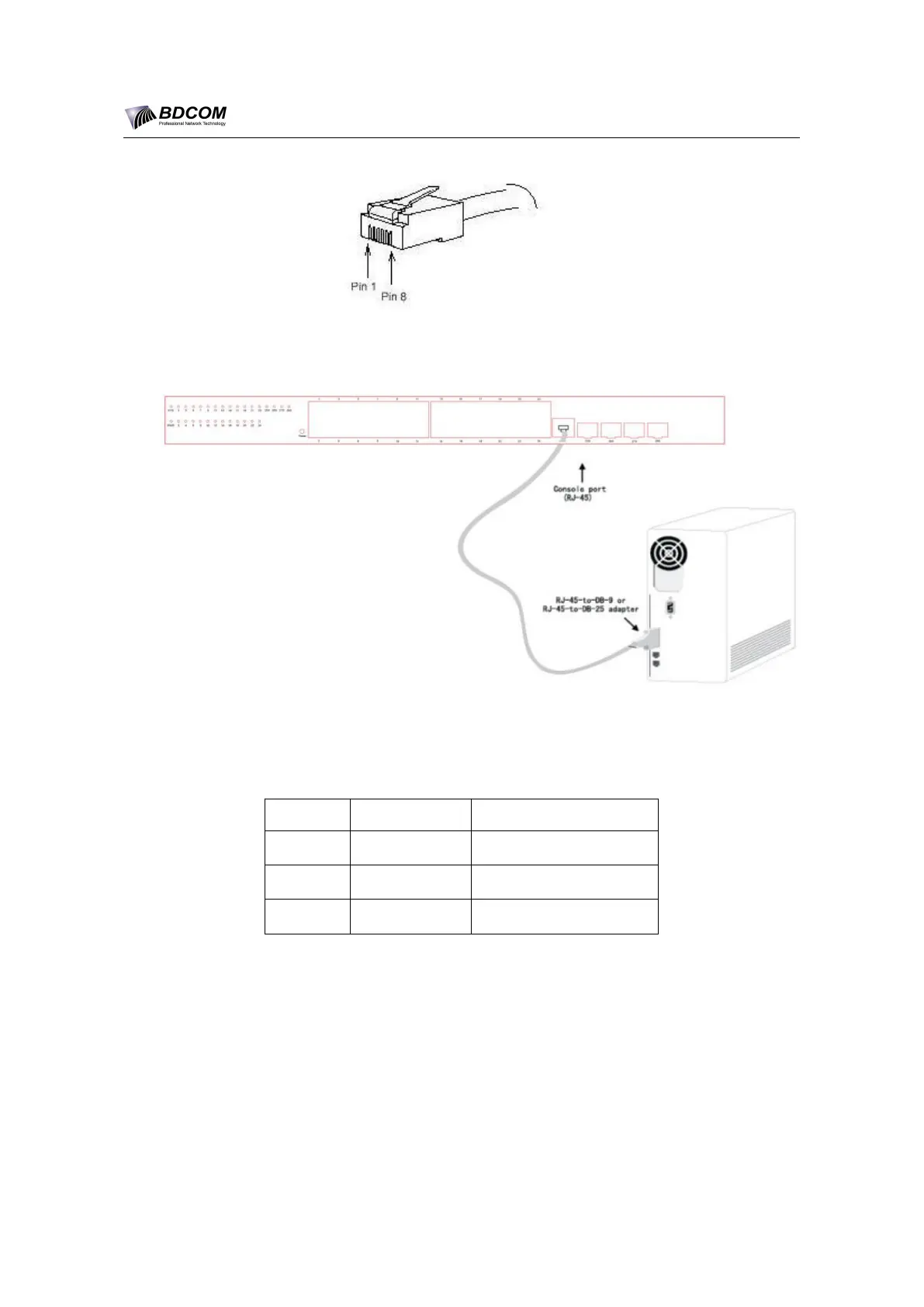

Figure 3- 3 RJ-45 connector of the console port
Figure 3-4 Connecting the Console port and the PC of the BDCOM S2528-C switch
Table 3- 1 Pins of the console port
NO.
Name
Remarks
6
RXD
Input
3
TXD
Output
4,5
SG
GND
Note:
The console port of BDCOM S2528-C does not support traffic control. Therefore,
you must set the option data traffic control to none when you configure the switch
with the super terminal. Otherwise, the single-pass problem will arise on the super
terminal.
The cable is used to connect the console port of the BDCOM S2528-C switch and
the outside console terminal device. One end of the cable is a 8-pin RJ45 plug and
the other end is a 9-hole plug (DB9). The RJ45 plug is put into the socket of the
console port on the BDCOM S2528-C switch. The inner line connection in the cable
is shown in figure 3-5. The console cable is numbered as RLC0301.
