S3756P Hardware Installation Manual
- 12 -

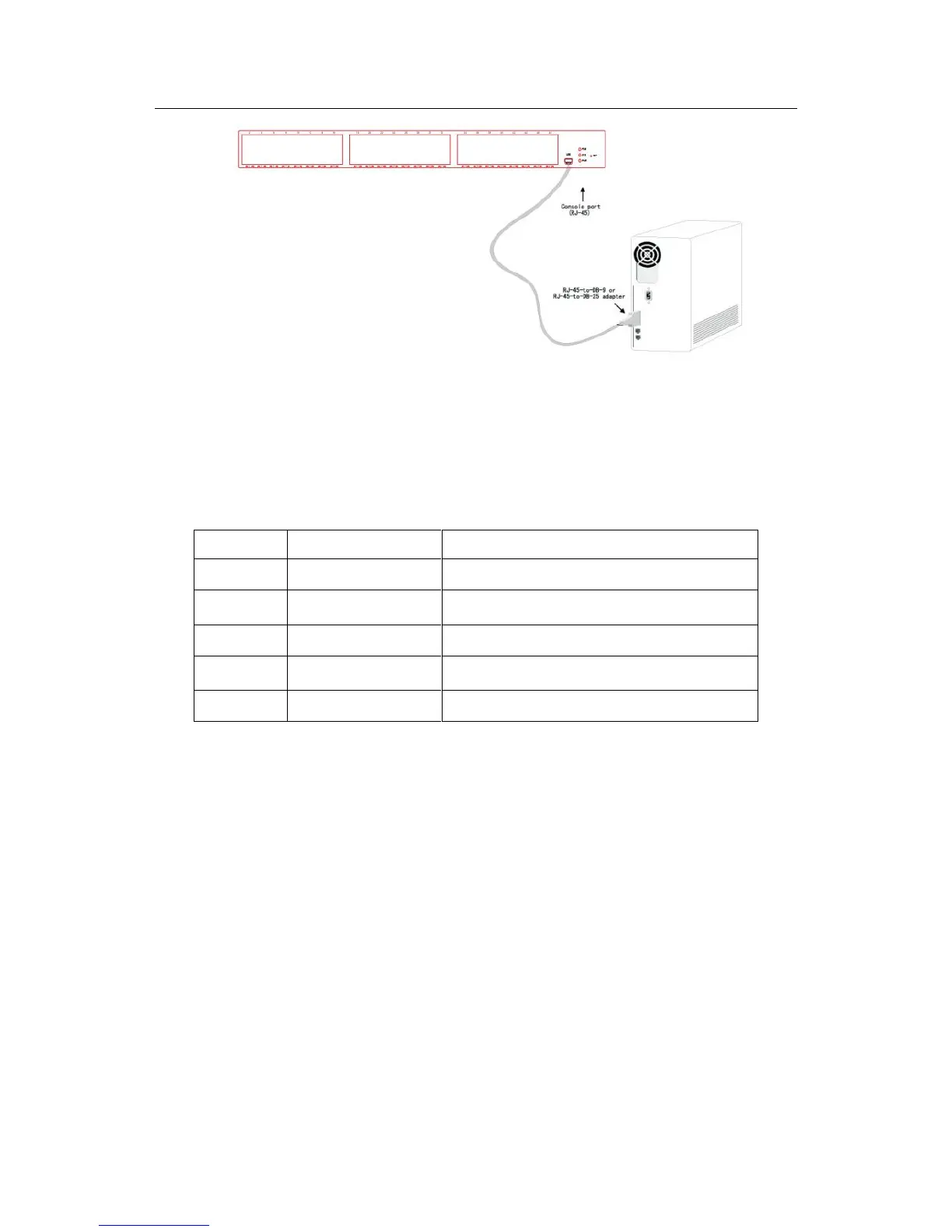

Figure 3-3 Connecting the console port of S3756P and computer
Note: The machine in the figure does not represent the material S3756P.
Table 3-1 Pins of the console port
No.
Name
Remarks
1
RXD
Input
2
No connect
3
SG
GND
4
No connect
5
TXD
Output
Note:
The console port of the S3756P switch does not support traffic control. Therefore, you must
set the option data traffic control to none when you configure the switch with the super terminal.
Otherwise, the single-pass problem will arise on the super terminal.
The cable is used to connect the console port of S3756P and the outside console terminal
device. One end of the cable is a mini USB plug and the other end is a 9-hole plug (DB9). The
Mini USB plug is put into the socket of the console port on S3756P. The inner line connection in
the cable is shown in figure 3-4. The product NO. of the monitoring cable is RLC8501.
