S3756P Hardware Installation Manual
- 13 -

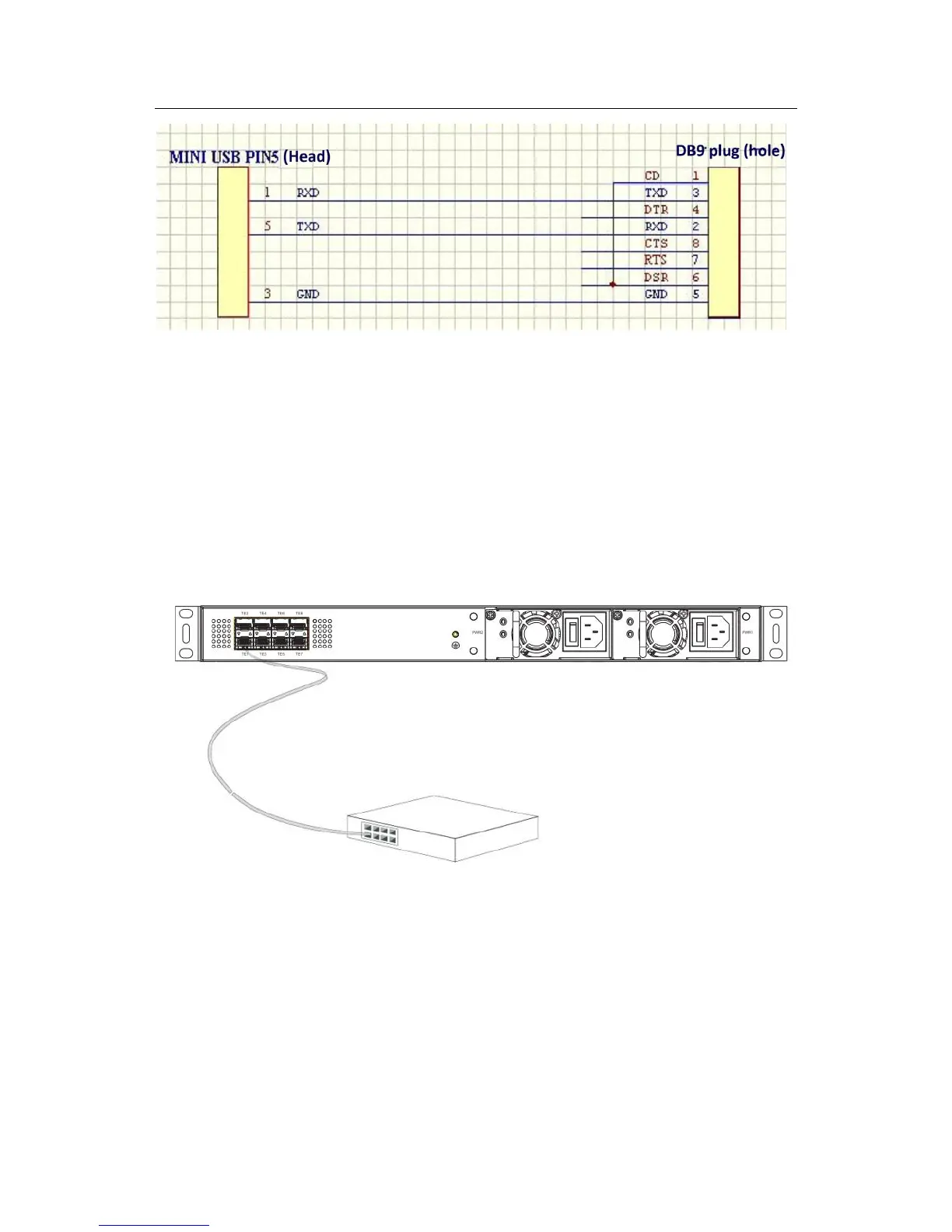

Figure 3-4 Cable connection at the console port
3.3.2 Connecting 10G Ethernet SFP+ Ports
S3756P switch has 8 10G SFP+ ports. Each port has its corresponding indicator: TE1~TE8.
You can connect the SFP+ optical module to the SFP+ port and then you can connect other
Ethernet terminal devices through the optical cable.
Figure 3-5 Connecting the 10G SFP+ port and other Ethernet terminals
Note: The machine in the figure does not represent the material S3756P.
3.3.3 Connecting Gigabit Ethernet TX Ports
S3756P provides 48 10/100/1000 Base-T ports. The indicators are labeled with numbers 1-48,
indicating the link/ACT state of the port. The indicators are used to indicate the LINK/ACT state.
