S3756P Hardware Installation Manual
- 1 -
Chapter 1 S3756P Switch Introduction
The section describes the characteristics and parameters of S3756P and gives an overview of
S3756P.
1.1 Appearance Description for Standard Configuration
The built-in ports of S3756P are: 48 gigabit Ethernet RJ45 ports, 8 10GE Ethernet SFP+ ports,
1 Console port. See table 1-1.
Table 1-1 Attributes of the built-in port
Port
Attribute
Gigabit Ethernet port
RJ45 interface, with LINK/ACT indicators
10G Ethernet port
SFP+ interface, with LINK/ACT indicators
Console port
A rate of 9600bps, mini USB interface
Besides, S3756P has a grounding column, two power sockets and two power on-off at its
back (ON means power on; OFF means power off.).

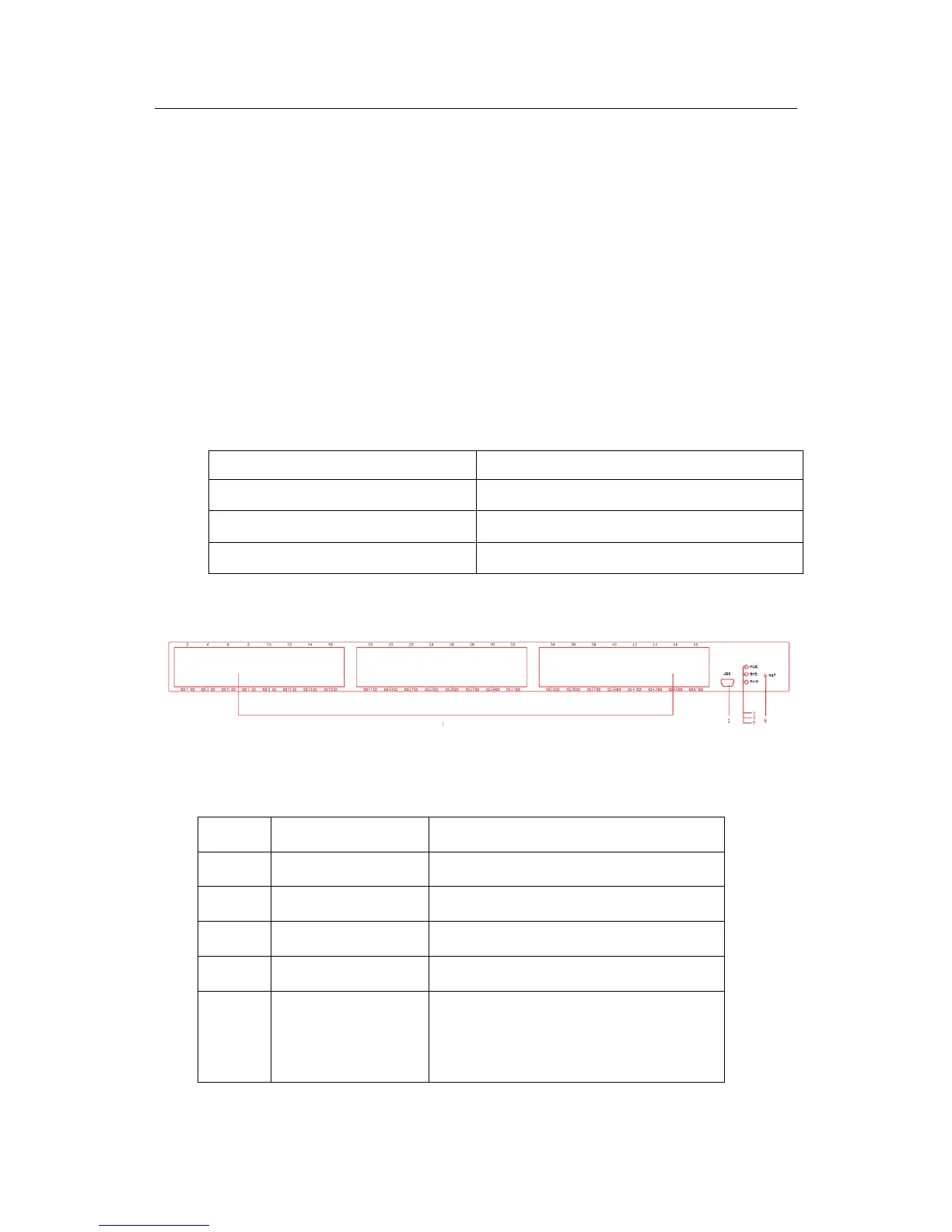

Figure 1-1 The front template of the S3756P switch
Table 1-2 Parts at the front template of S3756P switch
No.
Name
Description
1
Gigabit Ethernet port
RJ45 interface
2
Console port
A rate of 9600bps, mini USB interface
3
POE LED
Indicates whether POE sub-card is on.
4
SYS LED
Indicates the system LED
5
PWR LED
If the indicator is always on, the system is
normally started up.
If the indicator flickers, the system works
