BDI SEMBLANCE - Page 7

7
6
WALL SYSTEM
Package Reference
Sample
3
2
5
4
6
6
11
Hole
Spaces
Cabinet
Bracket
TOP VIEW
27.25 in
69.3 cm
to Bracket Template
15.625 in
39.7 cm
100 in
254 cm
Single Spacing
x2
J
Model Details
x 2
x 2
x 6
x 6
x 3
5:
Refer to Package Reference Booklet
for the number of recommended Wall
Brackets.
If 1 Bracket, skip to step 9 on page 8.
If 2 Brackets, proceed to step 6 and
finish the Wall System section of the
instructions.

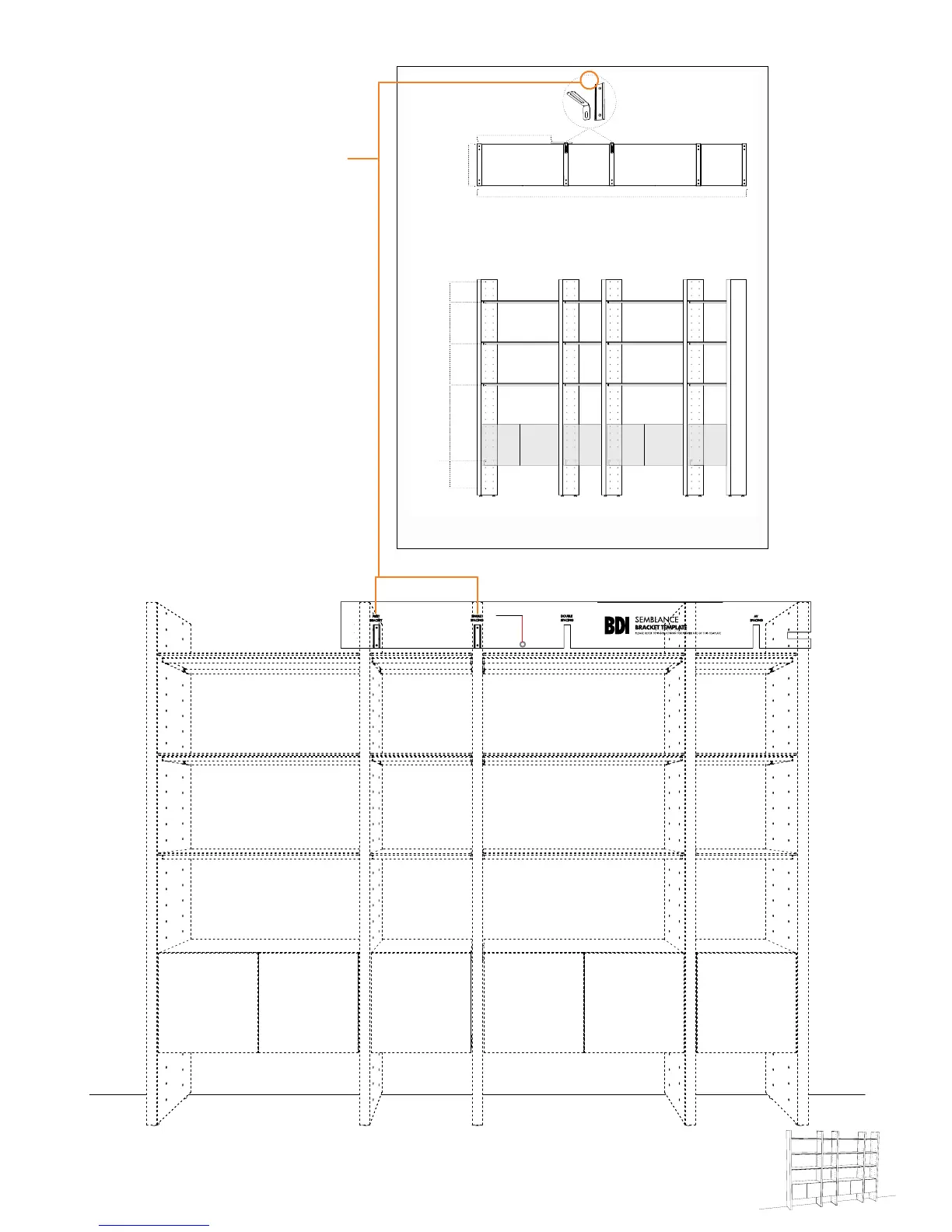

6:
Use the Bracket spacing groove that is
determined by your Package Reference
Booklet (2 of 2), to locate the second
Bracket.
