BDI Sequel - Attach Surge Protector; Secure Surge Protector

9

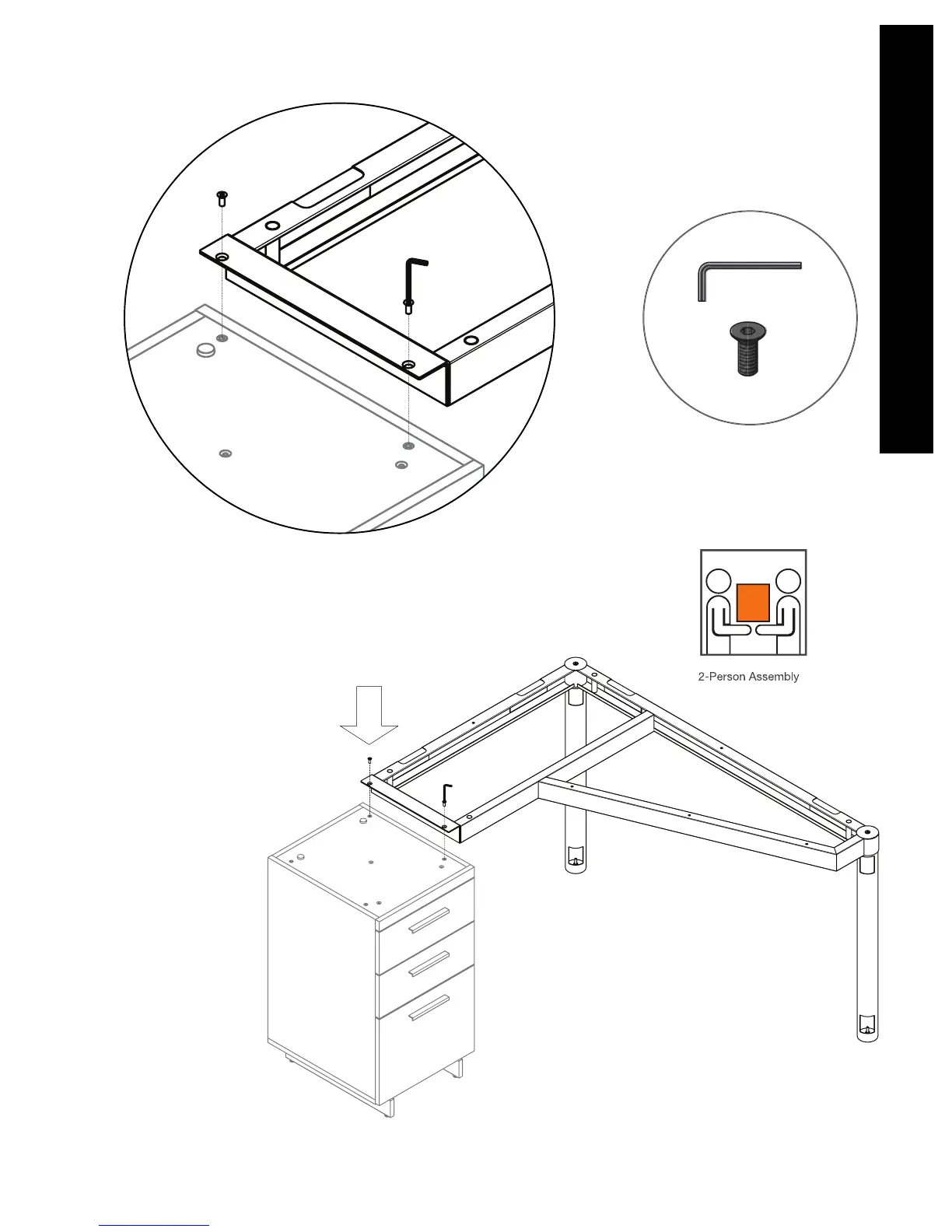

Attach Desk Frame
to Cabinets
With the help of another person, carefully
lower Desk Frame Assembly (H) onto the
adjacent cabinets (Sequel Models 6014,
6015, 6016, or 6017). Adjust frame so that
the holes are aligned with the threaded
inserts on top of the cabinets. Once holes
are aligned, install Flat Head Screws (D)
using Hex Wrench (A).
A
D x 2
step 4
