SEQUEL 6051/52
LIFT DESK
11

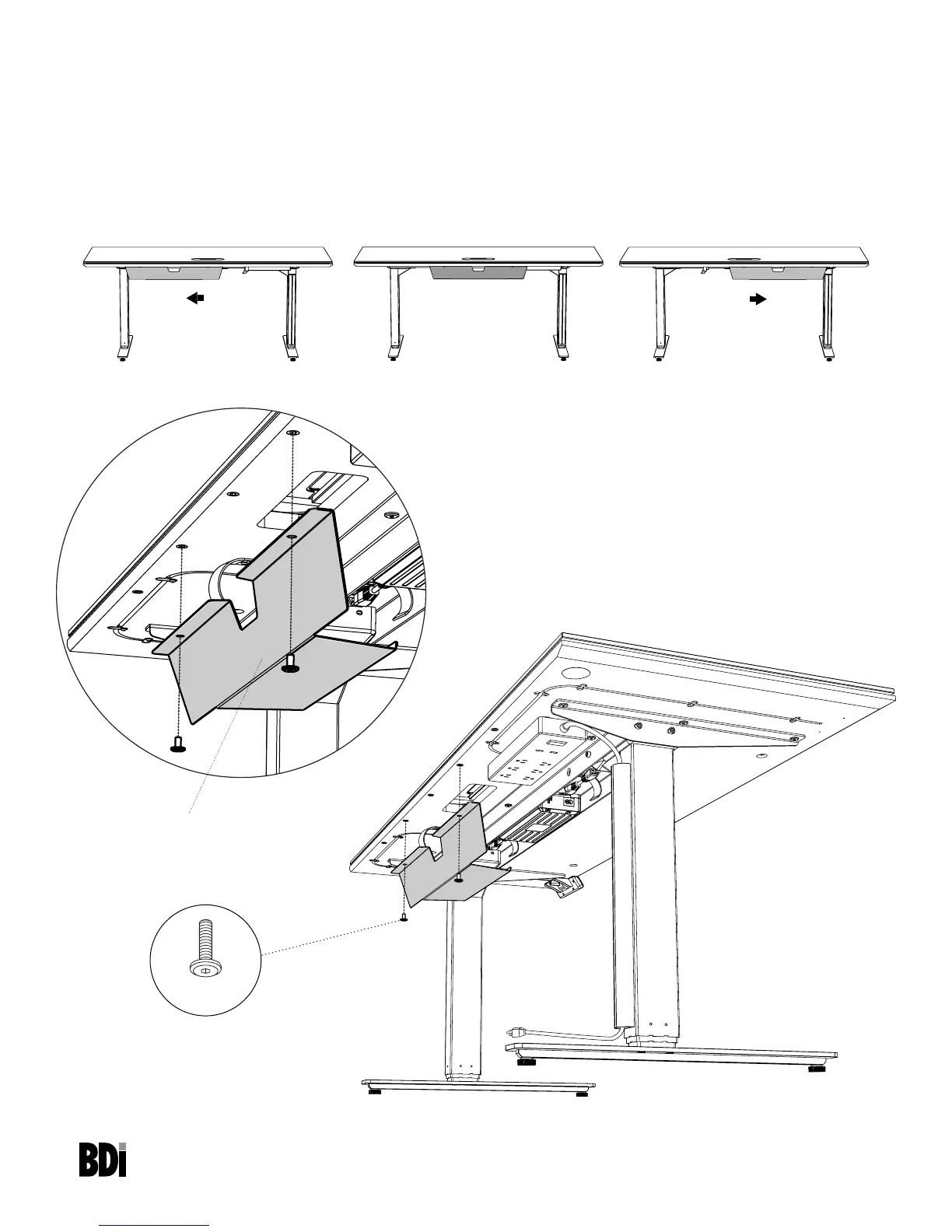

Attach the wire tray (optional)
Determine if you prefer the wire tray to be centered, shifted left or shifted right. If you plan to use a monitor arm,
it might be better to shift the position of the Wire Tray to make the monitor arm attach more centrally. Attach the
metal Wire Tray C7 to the back edge of the bottom of the desk with 2 Screws H5.
Shifted Right Shifted Left
C7 Wire Tray
H5 x 2
To Next Page
