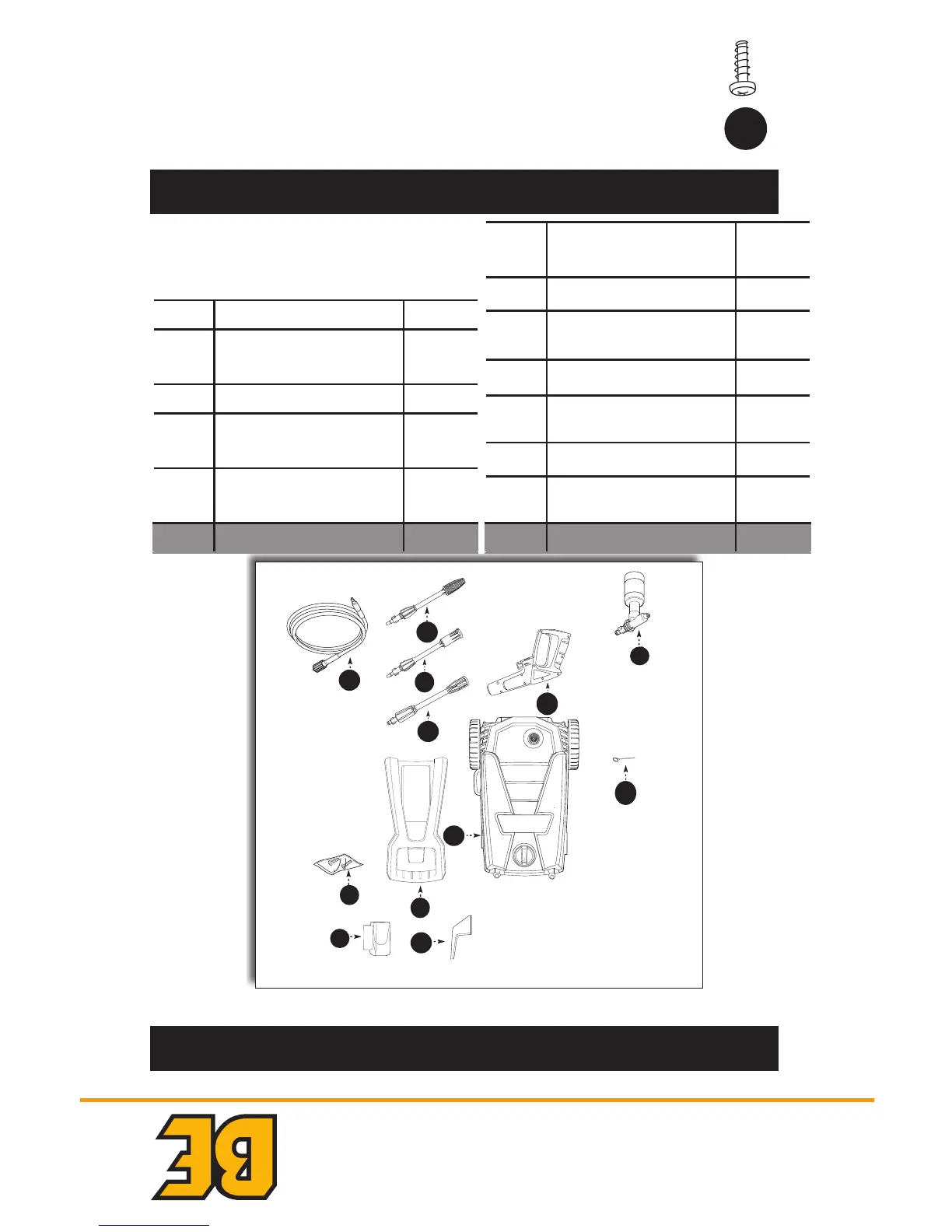

CONTENU DE L’EMBALLAGE
MATÉRIEL INCLUSE
3
PACKAGE CONTENTS
HARDWARE CONTENTS
PART DESCRIPTION QUANTITY
H Detergent Bottle 1
I Variable Spray Nozzle Lance 1
J Extension Lance 1
K Nozzle Cleaning Wire 1
L O-Ring Kit 1
AA Screws 2
PART DESCRIPTION QUANTITY
A Spray Gun Holster 1
B Handle 1
C Power Washer Unit 1
D Cord Hook 1
E Soft PVC High Pressure Hose 1
F Spray Gun 1
G Spray Gun Lock/Unlock 1
OFF/O
ON/I
E
H
B
C
K
A
D
L
AA
PW909112S
J
I
F
G
AA
Screw
Qty. 2
Note: Screws are located in
manual package
15ANR009 AR112S_1500PSI ENG-FR-SP.indd 3 16/12/17 下午12:38
Remarque: Les vis se trouvent dans
l’emballage du manuelVIS
3
PACKAGE CONTENTS
HARDWARE CONTENTS
PART DESCRIPTION QUANTITY
H Detergent Bottle 1
I Variable Spray Nozzle Lance 1
J Extension Lance 1
K Nozzle Cleaning Wire 1
L O-Ring Kit 1
AA Screws 2
PART DESCRIPTION QUANTITY
A Spray Gun Holster 1
B Handle 1
C Power Washer Unit 1
D Cord Hook 1
E Soft PVC High Pressure Hose 1
F Spray Gun 1
G Spray Gun Lock/Unlock 1
OFF/O
ON/I
E
H
B
C
K
A
D
L
AA
PW909112S
J
I
F
G
AA
Screw
Qty. 2
Note: Screws are located in
manual package
15ANR009 AR112S_1500PSI ENG-FR-SP.indd 3 16/12/17 下午12:38
PARTIE LA DESCRIPTION QTY
H Bouteille de
détergent
1
I Lance de buse à
pulvérisation variable
1
J Lance d’extension 1
K Lance de buses
rapide
1
AA Des vis 2
PARTIE LA DESCRIPTION QTY
A Étui à pistolet à
pulvériser
1
B Manipuler 1
C Unité de rondelle
électrique
1
D Crochet de cordon 1
E Tuyau haute pression
en PVC souple
1
F Pistolet à peinture 1
G Fil de nettoyage de
buse
1
2
2
7
5
9
3
1
13
15
14
4
8
10
8A
6
11
12
OFF/O
ON/I
Package content:
1. Power washer unit
2. Manual
3. Nozzle cleaning wire
(may be taped
to the manual)
4. Screws (2)
5. Handle
6. Cord hook
7. Spray gun holder
8. Spray gun
(8A shows trigger lock
button)
9. Variable Spray Nozzle
10. Turbo Lance
11. Lance Extension
12. High Pressure Hose
13. Detergent Bottle
14. Power washer quick connect
(QC) lter (clear)
(Connect to
Power Washer Unit)
15. Garden hose adapter (GHA)
(Connect to Garden Hose)
Quick Start Guide
2. Slide Gun holder on
side.
3. Slide cord hook on
side.
6. Release high pressure
hose from gun.
7. Press switch up to unlock and down to lock spray
gun. NOTE: The trigger lock prevents the trigger
from being engaged accidentally.
4. Screw on high pressure
hose to power washer
5. Push to attach high
pressure hose to gun.
OFF/O
ON/I
OFF/O
ON/I
Unlock
Lock
1. Screw handle to main
unit.
Screw Driver not incluDeD
B
A
C
D
E
F
G
H
I
K
J
AA
