ITEM PART NO. DESCRIPTION QTY
1. A1104600 Clip ring-ss φ1.2×φ27.6×4 1
2. M3001400 O-ring-φ20.26×φ2.62 1
3. A1104210 Oil level indicator 1
4. L1000300 Screw-M8×20 14
5. A1100330 Crankshaft cover 1
6. M3002300 O-ring-φ55.25×φ2.62 2
7. W4000101 Ball bearing-6305 1
8. A1104500 Crankshaft 1
9. A1100210 Crankcase cover 1
10. M3001500 Seal-φ12×φ17.5×2 1
11. A1101500 Oil drain plug 1
12. L1000400 Screw-M6×16 6
13. M3001900 O-ring-φ101×φ2.8 1
14. M3001700 Seal-φ24×φ29×2.5 1
15. F1201800 Oil pipe 1
16. A1400401 Handle 1
17. A1101100 Oil plug 1
18. L1000801 Screw-M8×40 1
19. L1000802 Screw-M6×16 2
20. A1100110 Crankcase 1
21. W4000600 Ball bearing-6206 1
22. M2001000 Oil seal-φ30×φ50×7 1
23. A1104300 Motor flange 1
24. I23001500 Ball bearing-6304 1
25. L1003201 Flat key-5×20 1
27. A1100700 Plunger pin-φ9×23 3
26. I23001600 Motor shaft 1
28. A1100600 Connecting rod 3
29. A1103500 Ceramic coating plunger 3
30. M3002000 O-ring-φ12.37×φ2.62 3
31. M2001200 Oil seal-φ15×φ24×6/7 3
ITEM PART NO. DESCRIPTION QTY
41.
A1402650 Adaptor 2
42.
A1200901 Plug 1
43.
A1202601 Washer-φ21×φ27×2 1
44.
A1200120 Manifold 1
45.
L1000200 Screw-M6×55 8
46.
42000300 Inlet filter-washer w/screen 1
47.
A1301500 Inlet swivel nut 1
48.
A1301320 Inlet nipple 1
49.
M3000100 O-ring-φ17.17×φ1.78 1
50.
A2301100 Inlet T connector 1
51.
M3003700 O-ring-φ21.89×φ2.62 1
52.
A2301300 Bolt 1
53.
M3002700 O-ring-φ12.2×φ2.4 2
54.
A1402660 Outlet nipple-M22×1.5 1
55.
M3003300 O-ring-φ14×φ1.78 1
56.
M3005200 O-ring-φ12×φ1 1
57.
A1302101 Nozzle-unloader 1
58.
M3005100 O-ring-φ8×φ1 1
59.
A1301700 Spring-φ0.5×φ6.5×18 1
60.
A1301601 Outlet valve 1
61.
M3000900 O-ring-φ3.63×φ2.62 1
62.
A2301030 Outlet T connector 1
63.
M3004000 O-ring-φ18×φ2.65 1
64.
M3002700 O-ring-φ12.2×φ2.4 1
65.
A2301200 Bolt 1
66.
A1302200 Spring-φ0.25×φ5.25×7 1
67.
W4000300 Ball-φ5.5 1
68.
M3001600 O-ring-φ3.68×φ1.78 1
69.
A1302300 Chemical tube bard 1
70.
A1301100 Seat 1
ITEM PART NO. DESCRIPTION QTY
81.
I23001100 Ball bearing 1
82.
I10010000 Stator 1
83.
A1400100 Motor housing 1
84.
L1002901 Clip ring-φ47 1
85.
A1400200 Motor fan 1
86.
L1001500 Plain washer-Ф8 1
87.
L1001600 Lockwasher-Ф8 1
88.
L1003701 Screw-M8×20 1
89.
A1400300 Fan cover 1
90.
31018200 Supply cord 1
91.
A1400800 Strain relief 1
92.
37014000 Gasket 1
93.
33004000 Power switch 1
94.
95.
L1000401 Screw-M5×60 4
96.
I21000500 Gasket 1
97.
98.
L1003603 Screw-M4×5 1
S0002000 Grounding lable 2
99.
A1401600 Grounding lead assembly 1
100. M3002400 O-ring-φ107.62×2.62 1
101. L1004110 Screw-T3.5×12 2
102. F1201200 Wire clamp 1
103. A1400700 Electrical box 1
104. 37016200 Capacitor 1
105. M3001800 O-ring-φ47.3×φ2.62 1
106. A1400600 Capacitor cover 1
107. L1003701 Screw-M8×20 2
108. A1401000 Baseplate 1
109. L1003702 Screw-M8×40 2
110. L1000400 Screw-M6×16 4
32. M3001200 O-ring-φ26.7×φ1.78 3
33. A1401400 Packing retainer-6.5mm 3
34. M1000802 Secondary packing-
φ15×φ22×5.5
3
35. M1006100 Compaction pad-
φ15×φ22×2
3
36. M1000600 Packing-φ15×φ24 3
37. A1200800 Valve plug 6
38. M3001000 O-ring-φ17.12×φ2.62 6
39. A1200300 Valve assembly 6
40. M3001101 O-ring-φ15.54×φ2.62 7
A1402640 Adaptor 1
71.
M3005301 Backup ring-
φ9.91×φ12.61×1.24
1
72.
M3000800 O-ring-φ9.25×φ1.78 1
73.
A1300502 Unloader piston 1
74.
A1300700 Spring seat 1
75.
A1300400 Spring-φ4×φ14.5×45.5 1
76.
L1000100 Screw-M4×4 1
77.
A1300300 Jam nut 1
78.
A1300710 Spring seat 1
79.
A1300101 Knob 1
80.
I43006400 Rotor 1
111.
F1100903 Rubber isolator foot 4
112.
L1000900 Plain washer-Φ6 4
113. L1001000 Lockwasher-M6 4
114. L1001900 Nut-M6 4
115. A1401100 Bushing 2
116.
W3000114 Pressure hose 1
117.
22562000 O-ring-φ4.87×φ1.78 2
118. A1402630 Connector 1
119. 22562000 O-ring-φ4.87×φ1.78 1
120. 43108300 Lever 1

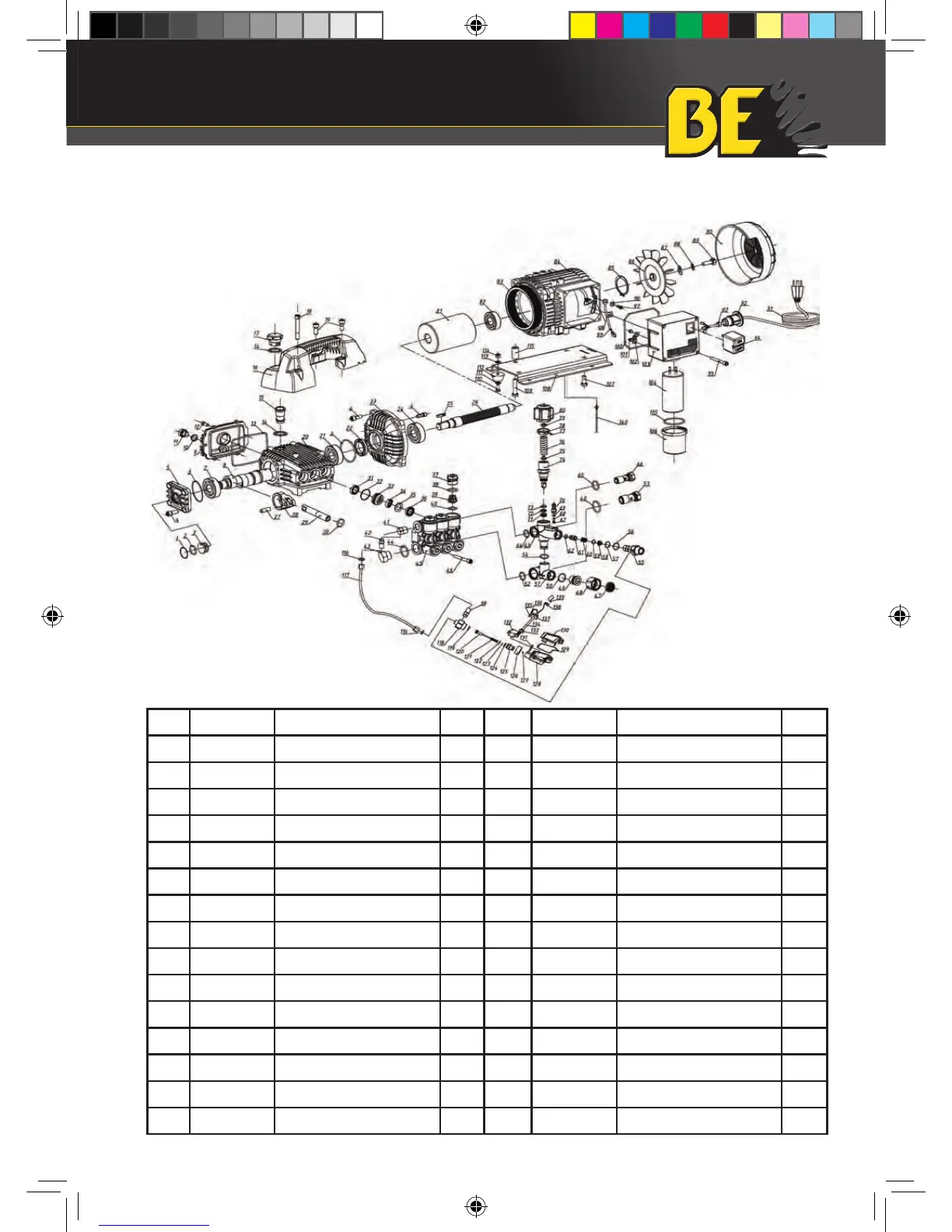

PARTS LIST
Parts List
ITEM PART # DESCRIPTION QTY ITEM PART # DESCRIPTION QTY
1 A1104600 Clip ring-ss φ1.2×φ27.6×4 1 16 A1400401 Handle 1
2 M3001400 O-ring-φ20.26×φ2.62 1 17 A1101100 Oil plug 1
3 A1104210 Oil level indicator 1 18 L1000801 Screw-M8×40 1
4 L1000300 Screw-M8×20 14 19 L1000802 Screw-M6×16 2
5 A1100330 Crankshaft cover 1 20 A1100110 Crankcase 1
6 M3002300 O-ring-φ55.25×φ2.62 2 21 W4000600 Ball bearing-6206 1
7 W4000101 Ball bearing-6305 1 22 M2001000 Oil seal-φ30×φ50×7 1
8 A1104500 Crankshaft 1 23 A1104300 Motor flange 1
9 A1100210 Crankcase cover 1 24 I23001500 Ball bearing-6304 1
10 M3001500 Seal-φ12×φ17.5×2 1 25 L1003201 Flat key-5×20 1
11 A1101500 Oil drain plug 1 26 I23001600 Motor shaft 1
12 L1000400 Screw-M6×16 6 27 A1100700 Plunger pin-φ9×23 3
13 M3001900 O-ring-φ101×φ2.8 1 28 A1100600 Connecting rod 3
14 M3001700 Seal-φ24×φ29×2.5 1 29 A1103500 Ceramic coating plunger 3
15 F1201800 Oil pipe 1 30 M3002000 O-ring-φ12.37×φ2.62 3
P1515EPN_P1515EPWN Genpower Manual_2016.indd 19 1/5/2016 10:59:54 AM
