Installation

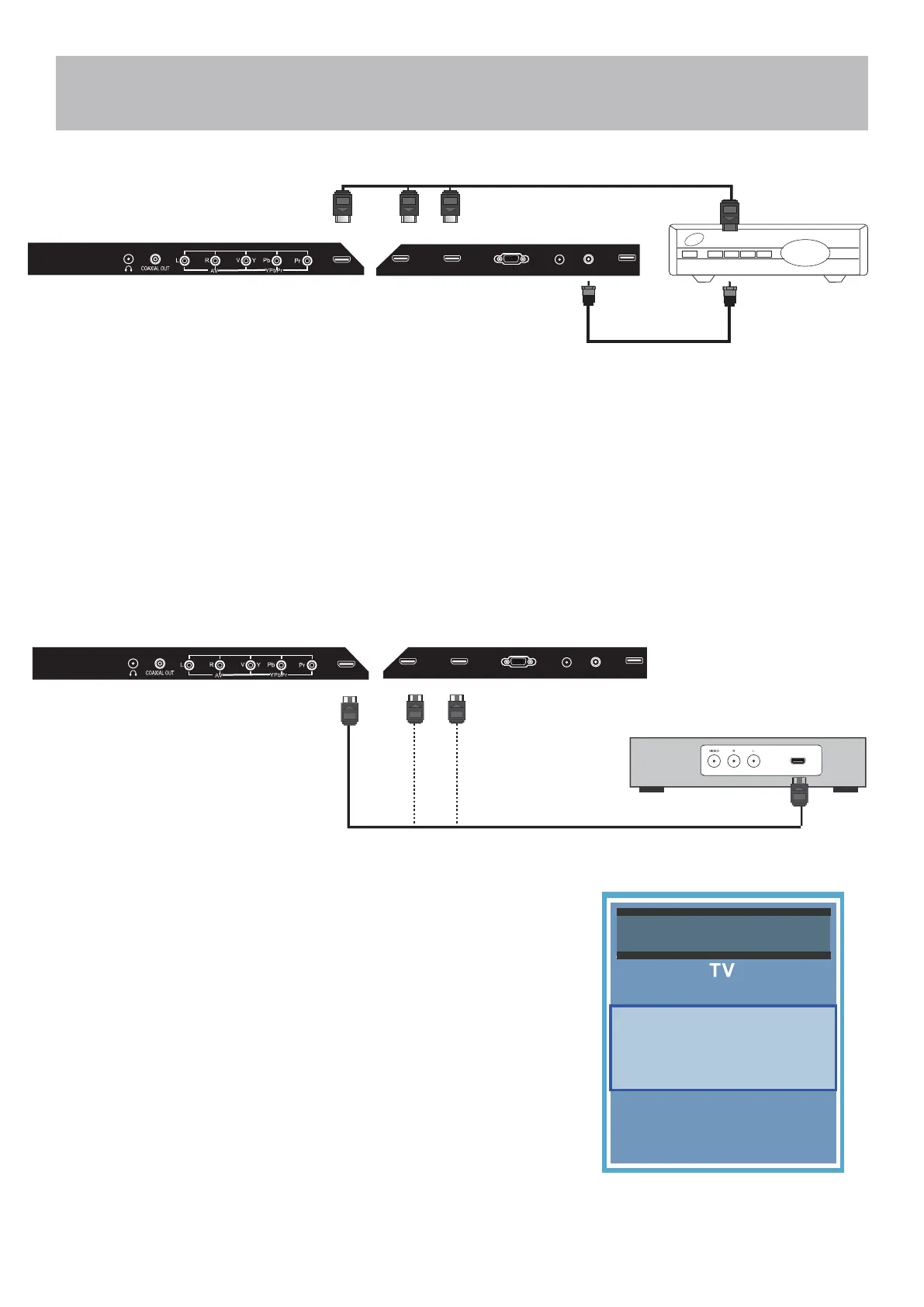

Connection to HDMI Input
Blu-ray, HD DVD, or Game Console
How to Connect
•
On the back of your device, connect the HDMI cable form HDMI out on
device to HDMI in on the panel.
How to Use
•
Press the INPUT button on the remote, then use the qp arrows to
highlight HDMI. Press ENTER .
Coaxial / RF Cable
(not included)
Optional HDMI cable ( not included )
Cable / Satellite
set top box
Optional HDMI cable ( not included )
Digital set top box, gaming console, or
blu-ray w / HDMI interface
Digital Cable / Satellite Set Top Box
How to connect
•
On the back of your device, connect the HDMI cable from HDMI out on device to HDMI in on the panel.
How to Use
• Press the INPUT button on the remote, the use the qp arrows to highlight HDMI. Press ENTER .
NOTE: You can also connect a digital cable/satellite box using an RF coaxial (75 ohm) cable. Most cable/satellite
systems require the TV to be set to Ch. 3 or 4 to display a picture.
HDMI
HDMI 1
HDMI 2 (MHL) HDMI 3 (ARC) VGA
PC AUDIO
CABLE - ANTENNA
USB
HDMI 2 (MHL) HDMI 3 (ARC) VGA
PC AUDIO
CABLE - ANTENNA
USB
HDMI 1
Media
Source Select
Component / AV
PC
HDMI 1
HDMI 2
HDMI 3
