Beacon S242P - D-Sub 15 Pin Connector; DVI-D Connector; Cvbs Connector; S-Video CONNECTOR

S242P User Manual
15

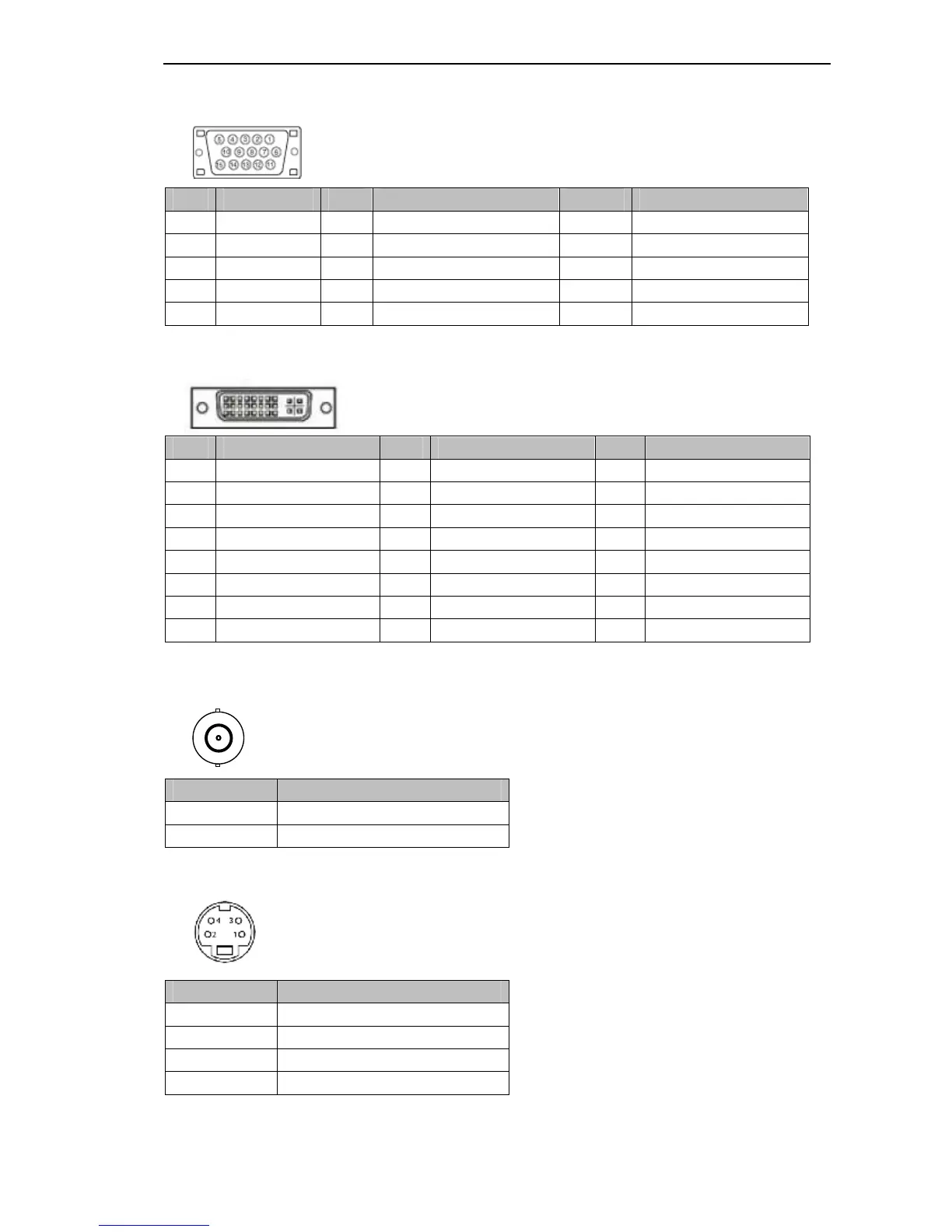

8.2 D-SUB 15 PIN CONNECTOR
Pin Signal Pin Signal Pin Signal
1 Red video 6 Red ground 11 Ground Shorted
2 Green video 7 Green ground 12 Data (SDA)
3 Blue video 8 Blue ground 13 H. Sync
4 Ground 9 5V 14 V. Sync
5 GND 10 Ground Shorted 15 Clock (SCL)
8.3 DVI-D CONNECTOR
Pin Signal Pin Signal Pin Signal
1 TMDS Data 2- 9 TMDS Data 1- 17 TMDS Data 0-
2 TMDS Data 2+ 10 TMDS Data 1+ 18 TMDS Data 0+
3 TMDS Data 2/4 Shield 11 TMDS Data 1/3 Shield 19 TMDS Data 0/5 Shield
4 TMDS Data 4- 12 TMDS Data 3- 20 TMDS Data 5-
5 TMDS Data 4+ 13 TMDS Data 3+ 21 TMDS Data 5+
6 DDC Clock (SCL) 14 +5V Power 22 TMDS Clock shield
7 DDC Data (SDA) 15 Ground (For +5V) 23 TMDS Clock+
8 NC 16 Hot Plug Detect 24 TMDS Clock-
(*NC：No connection)
8.4 CVBS CONNECTOR
Pin signal
1 CVBS
2 GND
8.5 S-Video CONNECTOR
Pin signal
1 GND
2 GND
3 Y
4 C
