Beam E4 - Page 10

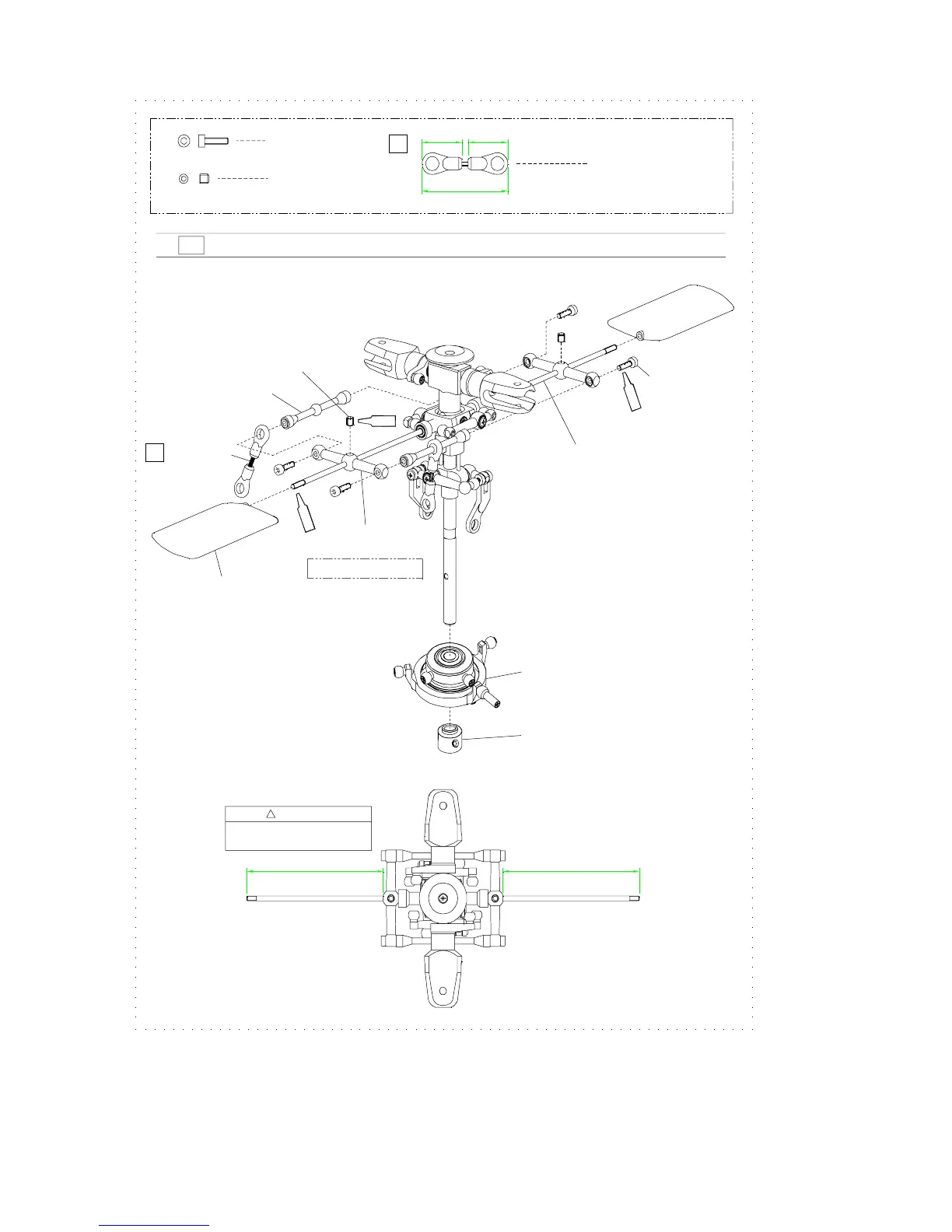

Swashplate Assembly
Main Mast Lock
Caution
Make sure both sides of
the Flybar are equal in length.
!
※※
C
A
Flybar Control Arm
Linkage Rod,
1.3x12mm
(2 pcs)
Flybar
Control Arm
Flybar Arm Spacer
Socket Head Bolt,
2x8mm (4 pcs)
Flybar Control Arm Set
Flybar Paddle,
(2 pcs)
Flybar, 210mm
Set Screw,
3x3mm (2 pcs)
79.5mm 79.5mm
Set Screw, 3x3mm
2 pcs
Socket Head Bolt, 2x8mm
4 pcs
B
l
u
e
Blue
B
B
13.5 13.5
3-2
2 pcs
Washout Arm To Flybar Arm Spacer
(Linkage Rod 1.3x12mm)
29.2
