BEAMEX MC2-IS - MC2-IS Safety Information

2
MC2-IS Safety Information
Please read carefully the
following instructions
and specifications be-
fore using the calibrator
and its accessories in
hazardous areas. Also
read the warnings avail-
able in Part A of MC2-IS
User Guide.

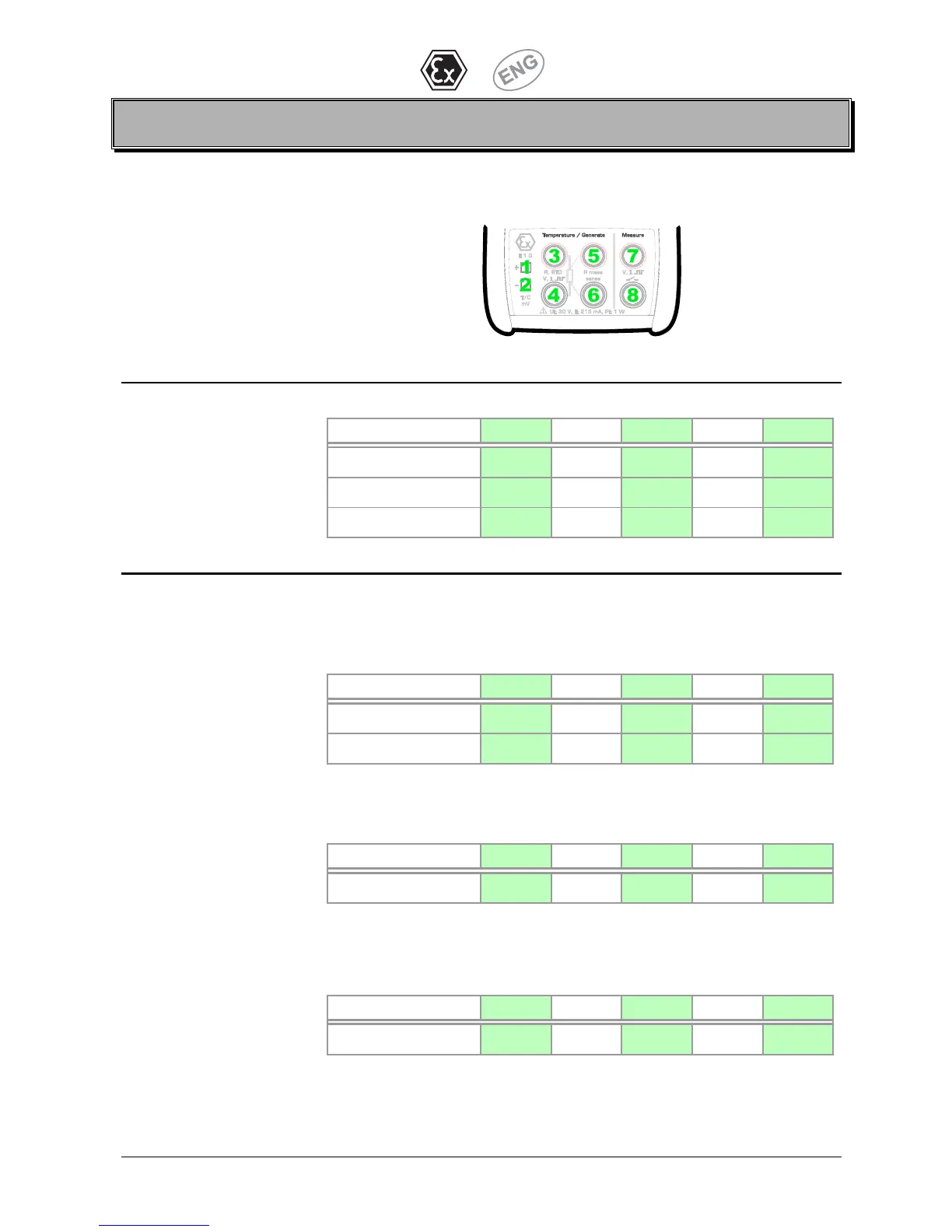

All parameter tables presented further on refer to MC2-IS terminals using
the numbers shown in the picture below:
Input Parameters
Terminals
U
i
/ V I
i
/ mA P
i
/ W C
i
/ nF L
i
/ mH
1 – 2
30 215 1 2.4 0
3 – 6
30 215 1 0.4 0
7 – 8
30 215 1 1.8 0
Output Parameters
Connections Using Temperature / Generate Section Terminals Only
Simple connections:
Terminals
U
o
/ V I
o
/ mA P
o
/ mW C
o
/ nF L
o
/ mH
1 - 2
1.1 37 40 63 0.75
3 - 6
20.7 45 230 65 0.75
Combined connections in Temperature / Generate section. Applies to all
other connections in the Temperature / Generate section than the ones
mentioned in the table above.
Terminals
U
o
/ V I
o
/ mA P
o
/ mW C
o
/ nF L
o
/ mH
1, 2, 3, 4, 5 & 6
21.8 82 270 63 0.75
Connections Using Measure Section Terminals Only
Simple connection:
Terminals
U
o
/ V I
o
/ mA P
o
/ W C
o
/ nF L
o
/ mH
7 - 8
25.3 100 0.6 43.8 0.75
