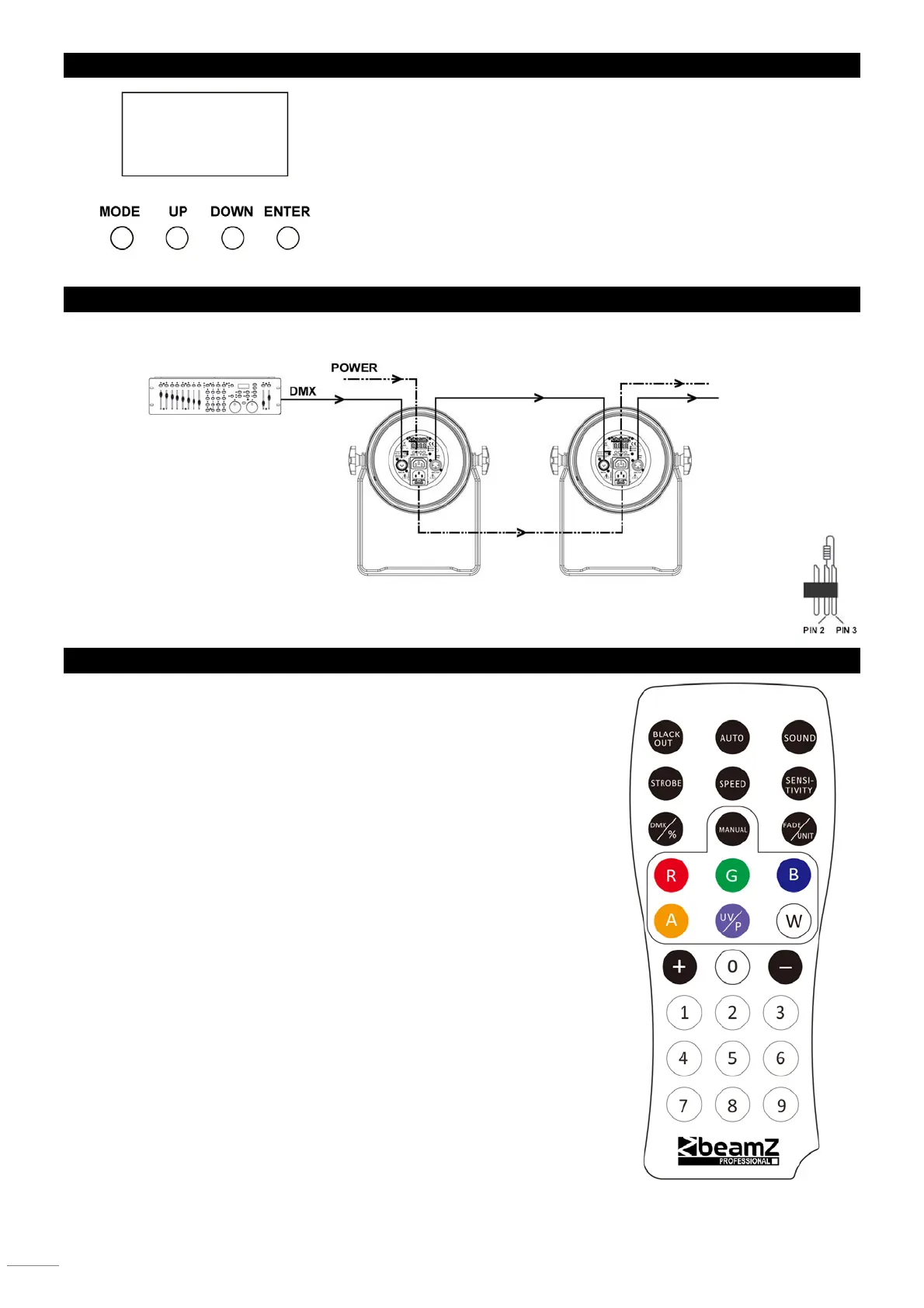

DISPLAY
The control board offer several features: you can simple set the starting address,
run the pre-programmed program or make a reset. The main menu is accessed
by pressing the Mode-button, browse through the submenu by pressing Up or
Down.
Press the Enter-button in order to select the desired menu.
You can change the selection by pressing Up or Down. Confirm every selection
by pressing the Enter-button.
You can leave every mode by pressing the Mode-button. The functions provided
are described later in this manual.
DMX-512 CONNECTION
If you are using a standard DMX controller, you can connect the DMX output of the controller directly to the DMX input of the
first unit in a DMX chain. Always connect the output of one unit with the input of the next unit until all units are connected.
If you use a controller with 5 pin DMX connection you will need to use a 5-pin to 3-pin adapter.
At the last fixture, the DMX cable has to be terminated. Solder a 120 Ohm resistor between signal (-) and signal (+)
into a 3-pin XLR connector and plug this into the DMX output of the last fixture in the chain.
REMOTE CONTROLLER
BLACK OUT Mode
Press <BLACK OUT> off existing modes. Press <BLACK OUT> return the last modes.
AUTO Mode
Automatic mode will enable you to run the automatic programs on the product.
To turn on Automatic mode:
1. Press <AUTO> on the remote controller.
2. Press <+> or <–> to choose between the different auto programs.
SOUND Mode
Sound-Active mode will enable the product to respond to the music.
To turn on Sound-Active mode:
1. Press <SOUND> on the remote controller.
2. Press <+> or <–> to choose between the different sound programs.
STROBE Mode
To adjust the strobe speed of the automatic program and the sound active program.
1. Press <STROBE> on the remote controller.
2. Press <+> or <–> to either increase or decrease the speed of the program.
3. Press <STROBE> again to turn off the strobe.
SPEED Mode
To adjust the speed of the automatic program and the sound active program.
1. Press <SPEED> on the remote controller.
2. Press <+> or <–> to either increase or decrease the speed of the program.
SENSITIVITY Mode
To adjust sound sensitivity for in Sound-Active mode
1. Press <SENSITIVITY> on the remote controller.
2. Press <+> or <–> to either increase or decrease sound sensitivity.
DMX / % Mode
To enable DMX or disallow DMX on the product.
Press <DMX> on the remote controller, the product work on the DMX controlling modes.
