Beamz DMX384 User Manual

4

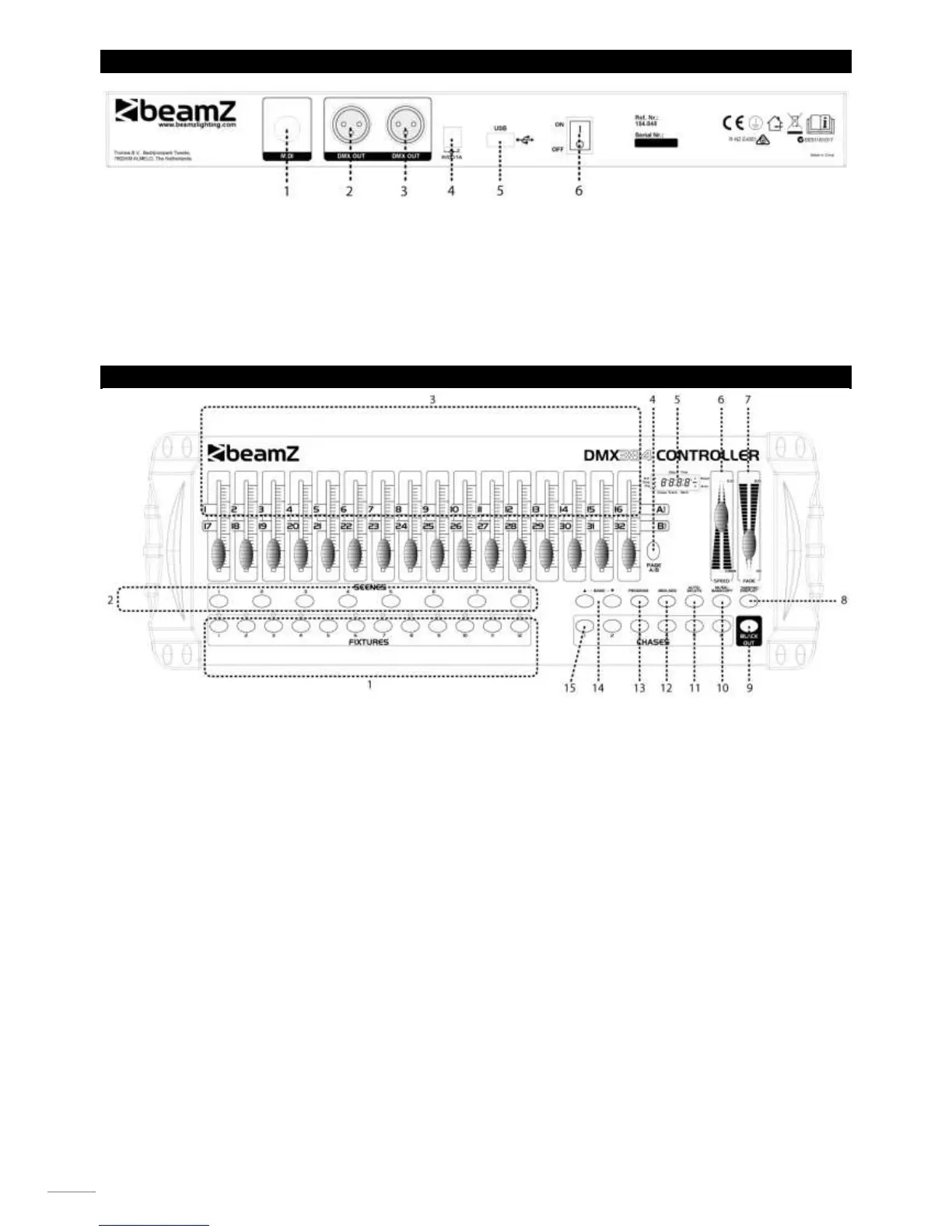

REAR VIEW
1. Midi in
Receives MIDI data.
2. DMX Out
This connector sends your DMX value to the DMX fixture or
DMX pack.
3. DMX Out
This connector sends your DMX value to the DMX fixture or
DMX pack.
4. DC Input
DC 9 – 12V, 300mA
5. USB
For connect a USB lamp
6. Power Switch
This switch turns On/Off the power
.
OVERVIEW
1. Fixture buttons (1 – 12)
Used to select relevant fixture for control.
2. Scene buttons (1-8)
Press the scene buttons to load or stored your scenes.
There are a maximum of 240 programmable scenes.
3. Faders
This faders are used to control the intensity of channel 1-8
or channel 9-16 depending upon the selected page.
4. Page Select Button
Used to select faders for the fixture between Page A(1-8)
and Page B (9-16).
5. Segment Display
Shows the current activity or programming state.
6. Speed Slider
Used to adjust the speed at which the scenes will chase.
7. Fade Time Slider
Used to adjust the Fade Time. Fade Time is the amount of
time it takes for a fixture(scanner or movinghead) to move
from one position to another, for the dimmer to fade in or
fade out.
8. Tap Sync/Display
Used to create a standard beat or to change the values
display between % and 255.
9. Blackout Button
Used to disable channel output.
10. Music/Bank Copy
Used to activate Music mode or to create scenes and
chase programs.
11. Auto/Del Button
Used to activate Auto mode or to delete scenes and
chases.
12. MIDI/ADD Button
Activates MIDE external control and used to confirm the
record/save process.
13. Program Button
Used to activate Program mode.
14. Bank Buttons (Up/Down)
Press the Up/Down buttons to select a bank from 30 banks.
15. Chase Buttons (1-6)
Used to select your programmed chase consisting a
maximum of 240 scenes.

Beamz DMX384 Specifications

General

Type	Lighting controller
Product color	Black
Quantity per pack	1 pc(s)
Power source	AC
Output current	1 A
Output voltage	12 V
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Control type	Buttons, Faders
Certification	CE
On/off switch	Yes
Rack mounting	-
Built-in display	No
DMX channels quantity	384 channels
Number of supported fixtures	12
Number of programmable scenes	240
DMX connector type	XLR3

Weight and Dimensions

Width	520 mm
Height	190 mm
Length	770 mm
Weight	2600 g
