71020 & 70554 Chipper Shredder Owners Manual Page 9
3.0 CONTROLS
3.1 TOWABLE MODELS
1. Engine Throttle. Refer to Honda Engine Operators
Manual . The throttle changes engine speed.
2. Engine Choke. Refer to Honda Engine Operators
Manual. Use when starting cold engine.
3. Key Switch. Used to start the engine. To start the
engine, activate starter switch and release switch as
soon as the engine is running. Do not crank starter for
more than 10 seconds or damage may result.
4. Engine Fuel Tank. Use unleaded fuel only. DONOT
MIX OIL AND GASOLINE.
5. Trailer Hitch. Always use 2" ball and hook safety
chains to tow the vehicle.
6. Jack Stand. Must be up and clear from the ground
when moving the unit. When the unit is in use, be
sure that the jack stand is down and locked in
position with the snap pin.
7. Foot Pedal. N/S. Used to engage rotor drive belt.
Controls

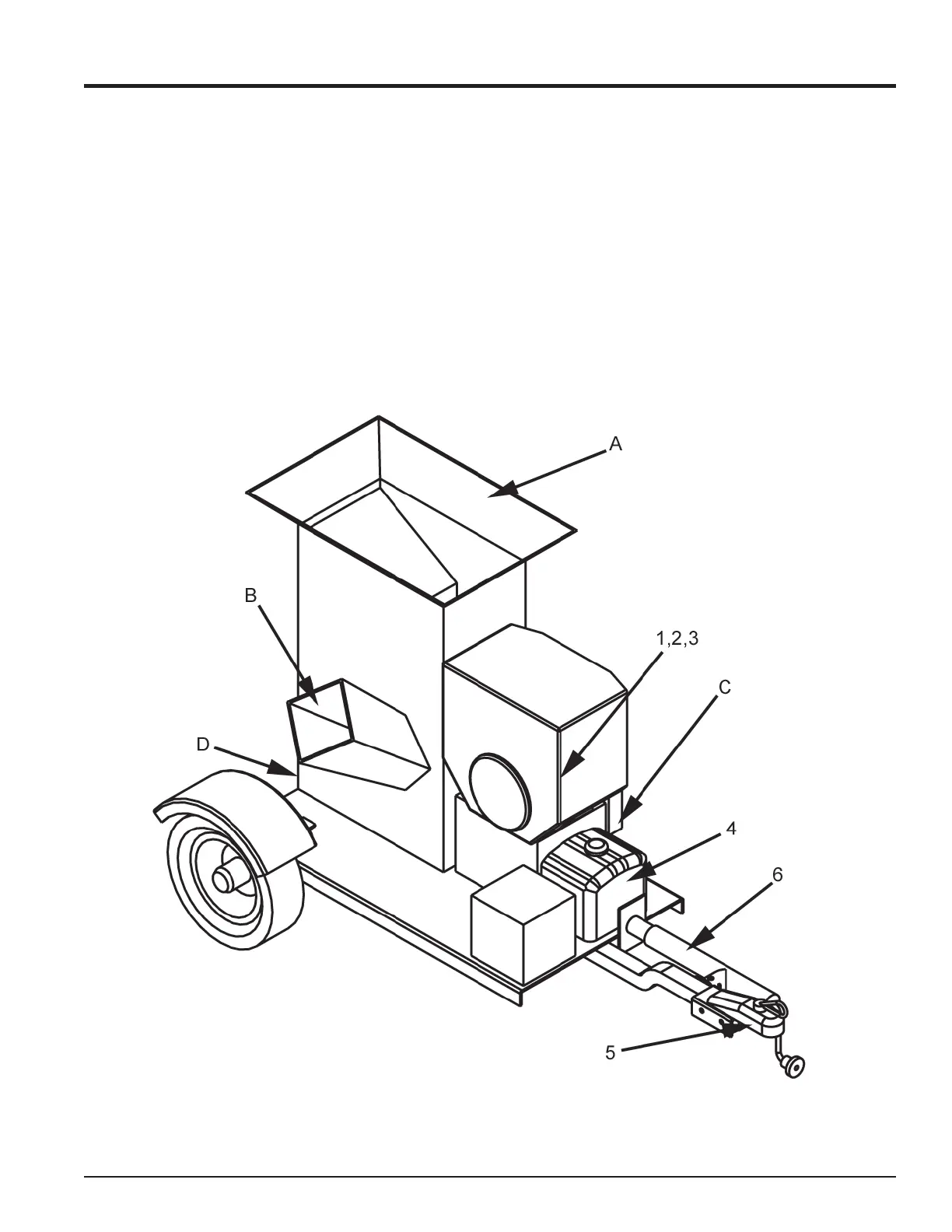

Fig. #9, Towable Chipper Shredder
